ABOUT THE SYSTEM LED STATUS DESCRIPTIONS
1-12
LED Status Descriptions
Front Control Panel LEDs
For location of the FCP, see System Front View on page 1-7.

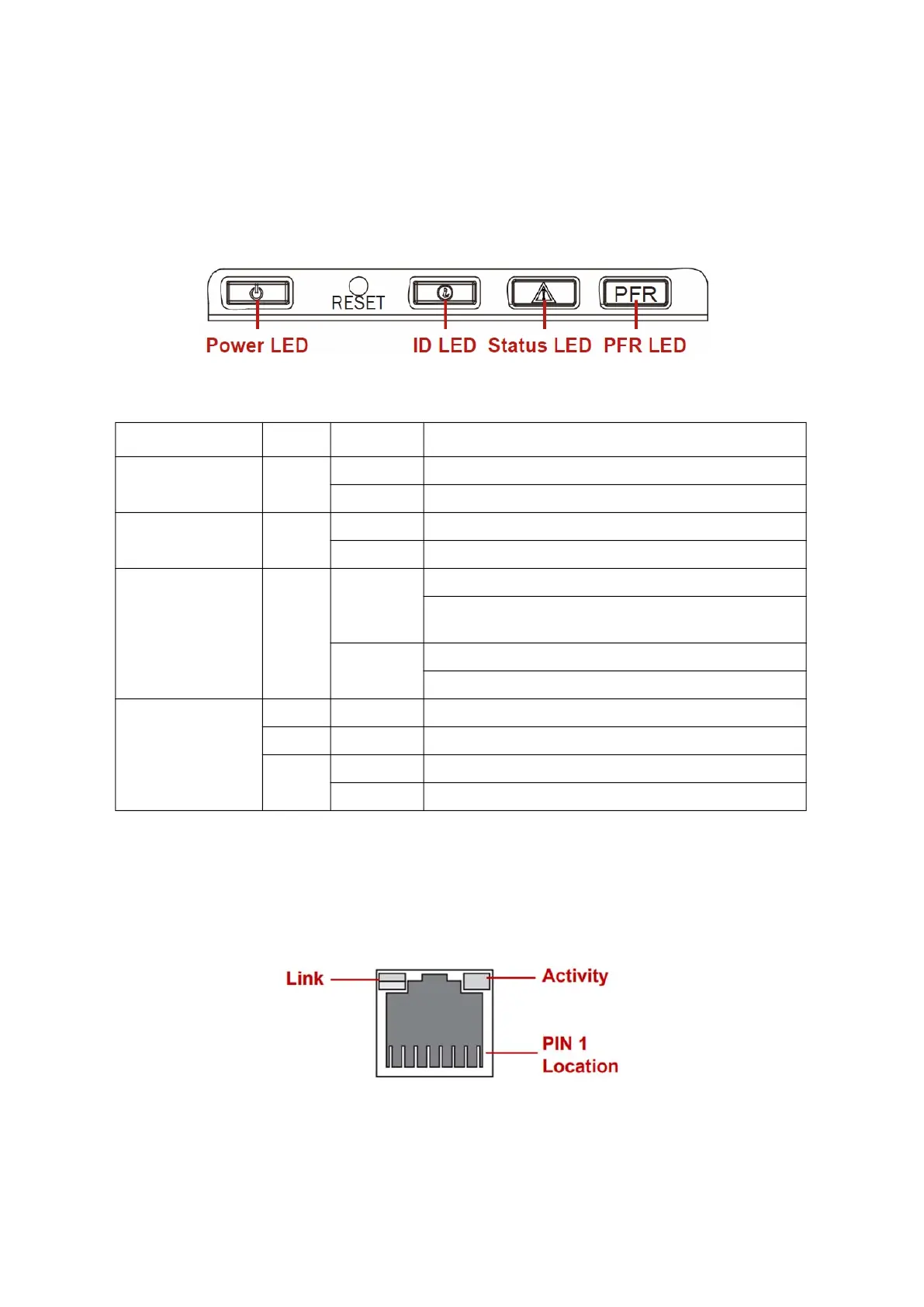

Figure 1-8. Front Control Panel LEDs
BMC Management Port LEDs
The system mainboard includes one dedicated RJ45 GbE management port. The RJ45 con-
nector has two built-in LEDs. See the following illustration and table for details.
Figure 1-9. GbE RJ45 Management
Table 10: Front Control Panel LEDs Behavior
NAME COLOR CONDITION DESCRIPTION
Power LED Blue
On System S0 power on
Off System S5 power off
Identification Blue
Blinking Unit selected for identification
Off No identification request
Status LED Amber
Blinking
Critical Failure: critical fan, voltage, temperature state
Non-Critical Failure: non-critical fan, voltage, temperature
state, CPU thermal trip, DC off
Off
SEL cleared
Last pending warning or error has been de-asserted.
PFR Status LED (Only
for certain models)
Off Power Off/PFR Module is not installed
Green On Authenticated
Amber
On Failed
Blinking Authentication /Recovery is executing in T-1
To Next Page
