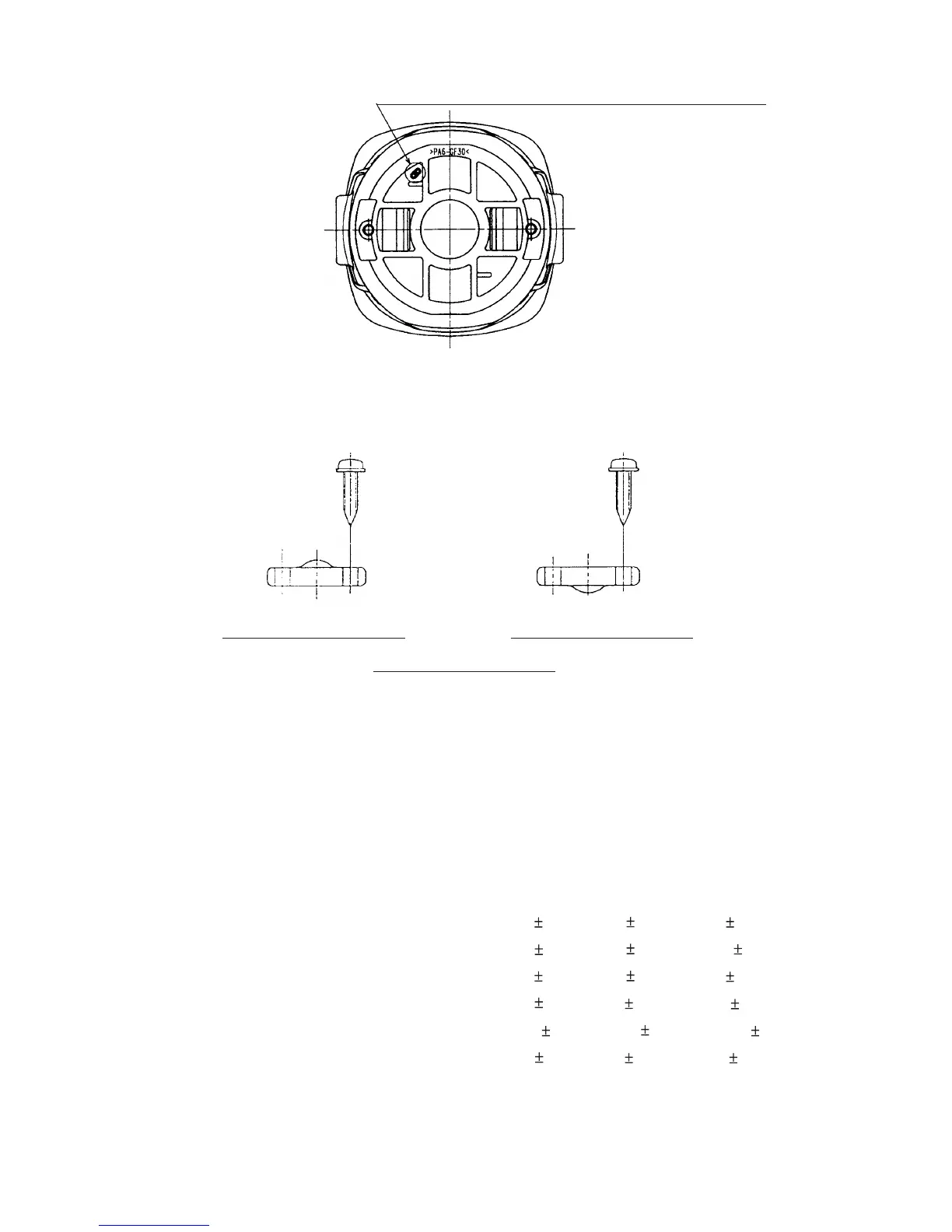

(6) Mount the cord clip as shown in Fig. 13 being careful of the direction.
Fig. 12
The internal wire with tube of stator shall pass this groove.
8-3. Lubrication Points and Types of Lubricant
Pinion chamber of the Gear Cover Ass'y [5] <5> .............ALVANIA grease EP (LF) O 35 g
Generously rub grease onto the gear and pinion and
inner circumference of metal.
8-4. Tightening Torque
Tapping Screws (W/Flange) D4 x 16
[43] <51> [52] <61> ................................................................ 2.0 0.5 N
•
m (20 5 kgf
•
cm, 1.5 0.4 ft-lbs.)
Seal Lock Screws (W/Sp. Washer) M5 x 14 [1] <1> ............... 4.9 1.0 N
•
m (50 10 kgf
•
cm, 3.6 0.8 ft-lbs.)
Tapping Screw (W/Flange) D5 x 35 [2] <2> ............................ 3.4 0.7 N
•
m (35 7 kgf
•
cm, 2.5 0.5 ft-lbs.)
Hex. Socket Hd. Bolt (W/Flange) M5 x 16 [28] <28> .............. 7.8 1.5 N
•
m (80 15 kgf
•
cm, 5.8 1.1 ft-lbs.)
Special Nut M10 [6] <6> ......................................................... 20.4 3.1 N
•
m (200 30 kgf
•
cm, 14.4 2.2 ft-lbs.)
Machine Screw M5 x 10 [21] <21> ......................................... 5.9 1.5 N
•
m (60 15 kgf
•
cm, 4.3 1.1 ft-lbs.)
Fig. 13
Cord dia.: Over 8.5 mm dia. Cord dia.: Max. 8.5 mm dia.
Cord clip mounting diagram
