9-2. Reassembly
Reassembly can be accomplished by following the disassembly procedures in reverse. However, special
attention should be paid to the following points.
(1) Reassembly of Lever (B) [91] to the Housing Holder [73]
Mount Base (B) [97] and the Housing Holder [73]. Push the Lock Screw [90] in as far as it will go. Hook the
Lock Spring [89] on both the Housing Holder [73] and Lever (B) [91]. Being careful not to loosen the Lock
Screw [90], turn Lever (B) [91]. When Lever (B) [91] is positioned as shown in Fig. 13, insert the Lock Screw
[90] into Lever (B) [91] and secure them with the Machine Screw (W/Washers) M4 x 12 (Black) [81].
(2) Wiring procedure (Fig. 14)
During installation, be careful not to pinch the lead wires between Stator Holder Ass'y [22] and Head Cover (A)
[4], Head Cover (B) [3].
Piller terminal

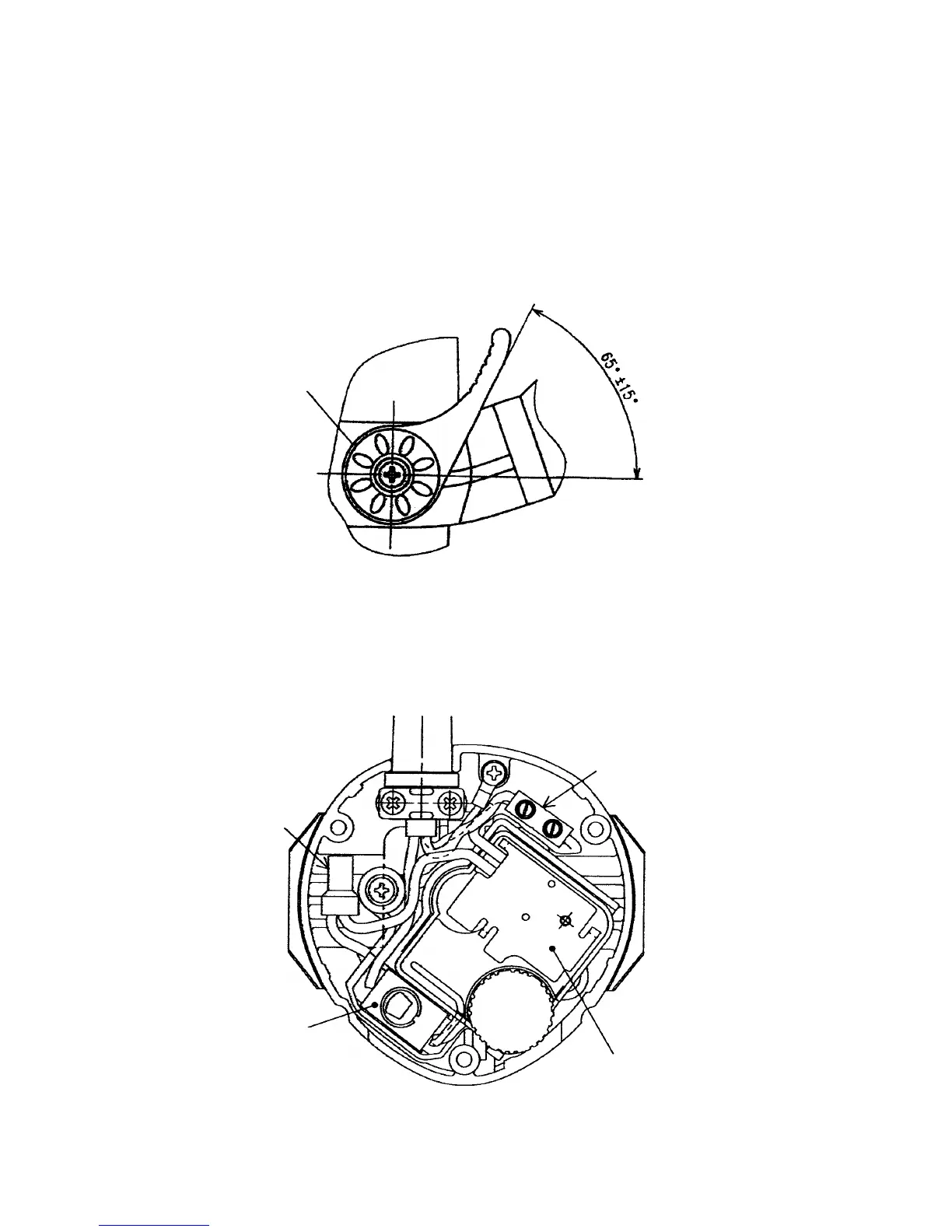

Fig. 13
Lever (B) [91]
Fig. 14
Connector
Switch
Control
