Hitachi M 12VC User Manual

--- 13 ---
(4) Tightening torque of screws and bolts:
Machine Screw (W/Sp. Washer) M5 x 60 [30] 3.4 0.7 N
•
m (35 7 kgf
•
cm)
Hex. Socket Set Screw M5 x 8 [21] 0.7 0.2 N
•
m (7.5 2.5 kgf
•
cm)
Machine Screw (W/Washers) M4 (Black) [2] [13] [81] 1.8 0.4 N
•
m (18 4 kgf
•
cm)
Machine Screw (W/Washers) M6 x 40 (Black) [40] [68] 4.9 0.1 N
•
m (50 10 kgf
•
cm)
Flat Hd. Screw M5 x 12 [46] [99] 3.4 0.7 N•m (35 7 kgf•cm)
Machine Screw (W/Washers) M4 x 55 (Black) [1] 1.8 0.4 N
•
m (18 4 kgf
•
cm)
Piller Terminal [11] 0.39 0.1 N
•
m (4 1 kgf
•
cm)
Machine Screw M5 x 6 [48] 3.4 0.7 N
•
m (35 7 kgf
•
cm)
Machine Screw (W/Washers) M4 x 16 [5] 1.8 0.4 N
•
m (18 4 kgf
•
cm)
Machine Screw (W/Sp. Washer) M4 x 6 [7] 1.8 0.4 N
•
m (18 4 kgf
•
cm)
Machine Screw M4 x 10 [75] 1.8 0.4 N•m (18 4 kgf•cm)
Machine Screw M5 x 20 (Black) [78] 3.4 0.7 N
•
m (35 7 kgf
•
cm)
Machine Screw M5 x 35 (Black) [83] 3.4 0.7 N
•
m (35 7 kgf
•
cm)
Nut M10 [84] 9.8 2 N
•
m (100 20 kgf
•
cm)
Machine Screw (W/Washers) M5 x 16 (Black) [87] 3.4 0.7 N
•
m (35 7 kgf
•
cm)

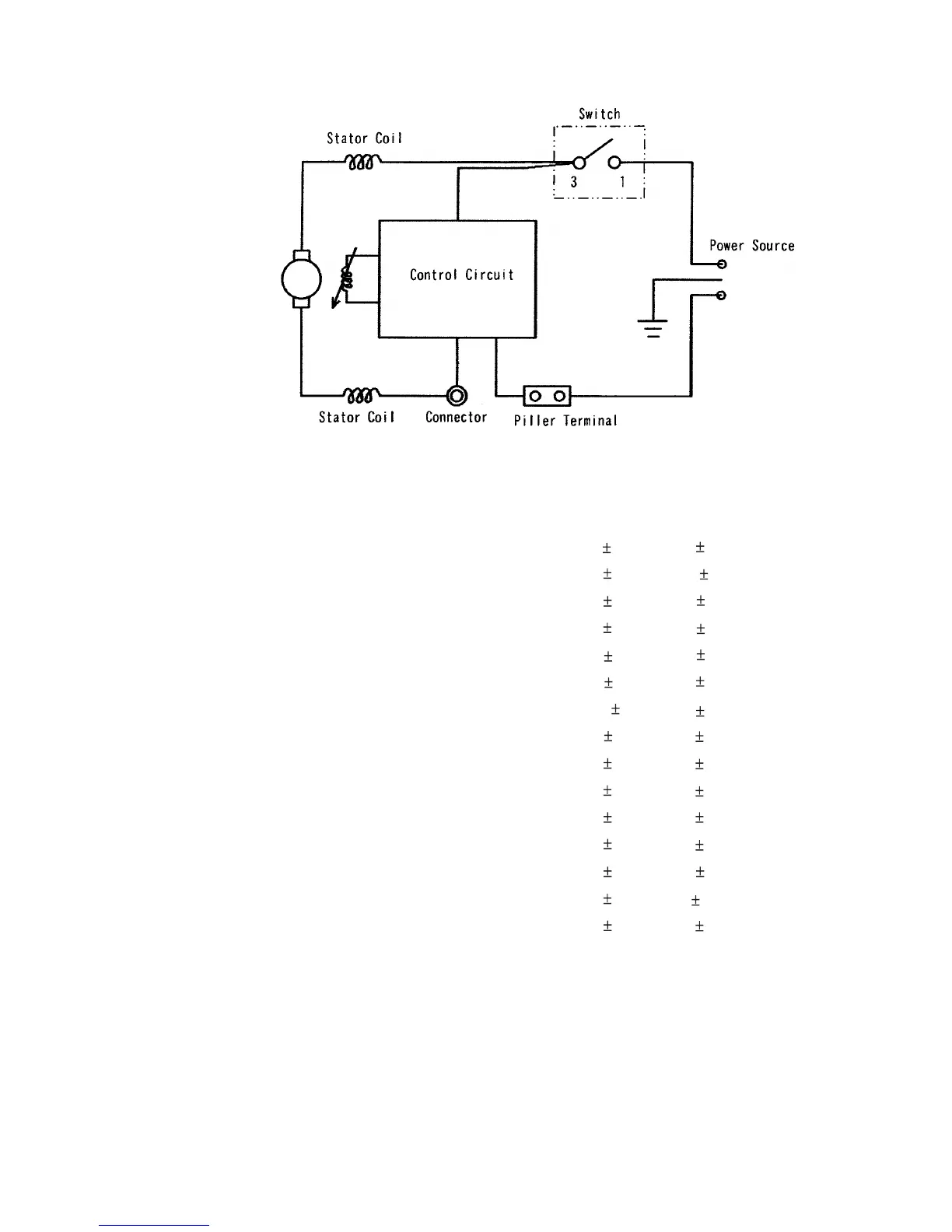

(3) Wiring diagram (Fig. 15)
Fig. 15
Armature
9-3. Insulation Tests
On completion of disassembly and repair, measure the insulation resistance and conduct the insulation tests
(dielectric strength test).
Insulation resistance: 7 M Ω or more with 500 V DC megohm tester
Dielectric strength: AC 2,500 V/1 minute, with no abnormalities
9-4. Cleaning the Cover
Clean the exterior of the tool with a soft cloth moistened with soapy water, and dry thoroughly.
