Hitachi NT 50AE User Manual

Français
30
SPECIFICATIONS
Modèle
Pression d’utilisation
Dimensions
Longueur × hauteur × largeur
Poids
Contenance de clous
Consommation d’air
NT50AE(S) NT32AE(S)
70 – 120 psi (4.9 – 8.3 bars, 5 – 8.5 kgf/cm
2
)
9-7/8" × 9-1/4" × 2-1/8" 9-7/8" × 7-1/4" × 2-1/8"
(251 mm × 235 mm × 54 mm) (251 mm × 185 mm × 54 mm)
3.0 lbs. (1.4 kg) 2.4 lbs. (1.1 kg)
100 clous
.025 ft
3
/cycle à 100 psi
(.73 l/cycle à 6.9 bars)
(.73 l/cycle à 7 kgf/cm
2
)

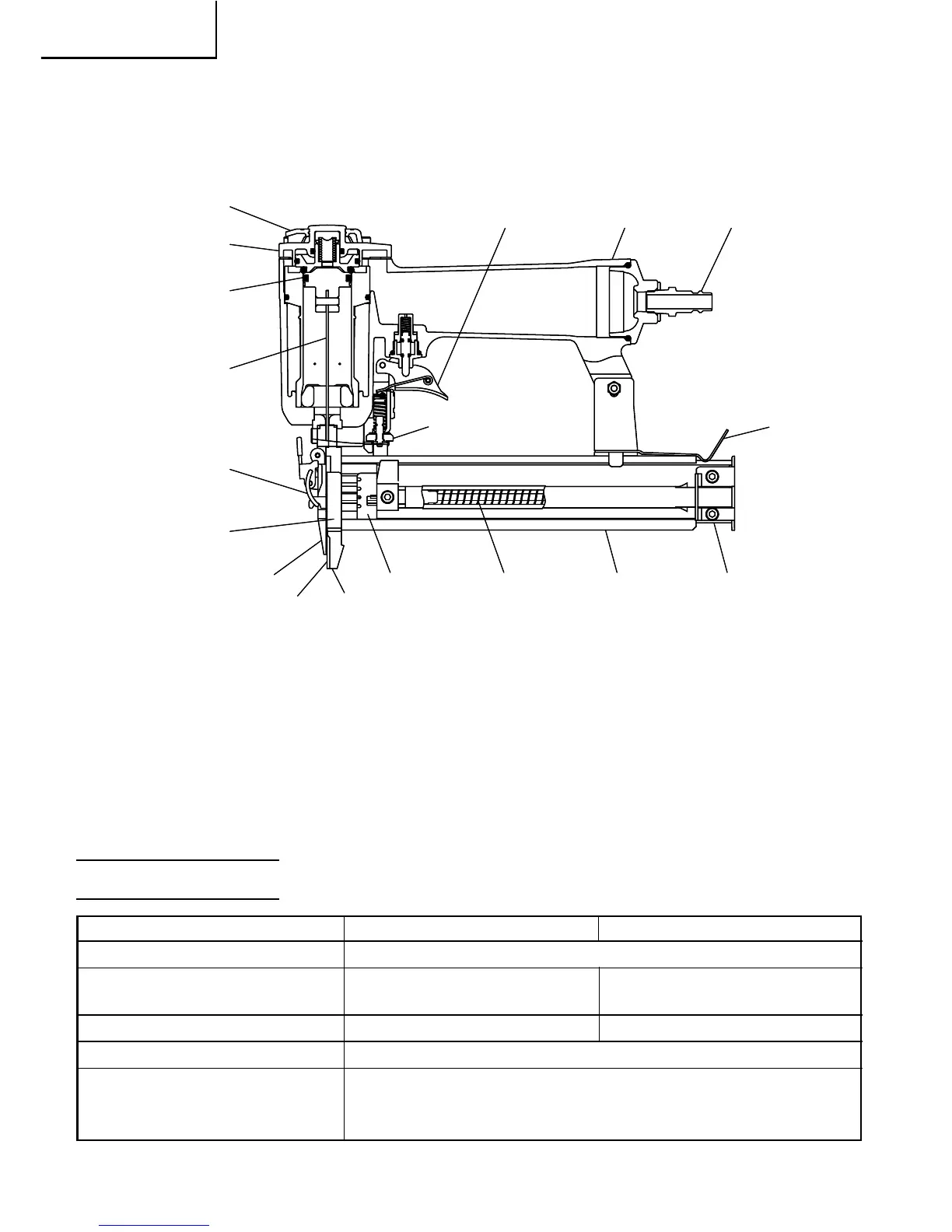

NT32AE(S)
Bouchon d’airCorps
Gâchette
Butée de magasin
Tâte de clouage (sortie)
Guide de lame
Lame
d’entraînement
Couvercle supérieur
Joint torique
de piston
Plaque de guidage (A)
Ressort
d’alimentation
Levier-
poussoir
Alimenteur
de clous
Magasin (A) Magasin (B)
Couvercle
d’échappement
Levier de
verrouillage
Ajuster

Hitachi NT 50AE Specifications

General

Brand	Hitachi
Model	NT 50AE
Category	Nail Gun
Language	English

Summary

Important Information

Signal Word Definitions

Explains the meaning of signal words like DANGER, WARNING, and CAUTION.

Safety

Essential Safety Instructions (Part 1)

Crucial safety rules for nailer operation, including personal protection and safe handling.

Essential Safety Instructions (Part 2)

Continues essential safety rules for nailer operation, covering storage, environment, and specific usage.

Employer Responsibilities and Final Safety Notes

Details employer duties and final safety advice for using the nailer.

Operation

Nailer Components and Overview

Identifies and labels the various parts of the nailer.

Technical Specifications

Provides detailed specifications for the nailer models, including pressure and consumption.

Nail Compatibility and Selection

Shows the types and dimensions of nails suitable for use with the nailer.

Accessories, Applications, and Environment Setup

Covers accessories, typical applications, and requirements for the working environment.

Air Supply

Compressed Air System Requirements

Details requirements for the compressed air source, filter, regulator, and lubricator.

Lubrication and Cold Weather Handling

Provides instructions for proper lubrication and care of the nailer in cold conditions.

Testing the Nailer

Pre-Operation Functional Checks

Outlines the steps to test the nailer's functionality before starting actual work.

Adjustments and Loading

Setting Air Pressure and Loading Nails

Explains how to adjust air pressure and the correct procedure for loading nails.

Nailer Operation

Safe Operating Procedures

Details safe practices and warnings during the nailer's operation.

Methods of Nail Driving

Describes two methods for driving nails: intermittent (trigger fire) and continuous (push lever fire).

Adjusting Nailing Depth

Guides on how to adjust the nailer for consistent nail penetration depth.

Changing Exhaust Vent Direction

Instructions on how to adjust the direction of the nailer's exhaust vent.

Maintenance

Clearing Jams and Storage

Procedures for clearing jammed nails and proper storage of the nailer.

Service, Repairs, and Maintenance Chart

Information on service, repairs, warning labels, and a maintenance schedule.

Operator Troubleshooting Guide

A guide to help diagnose and resolve common problems encountered during nailer operation.
