Hitachi P 20SF User Manual

English
20

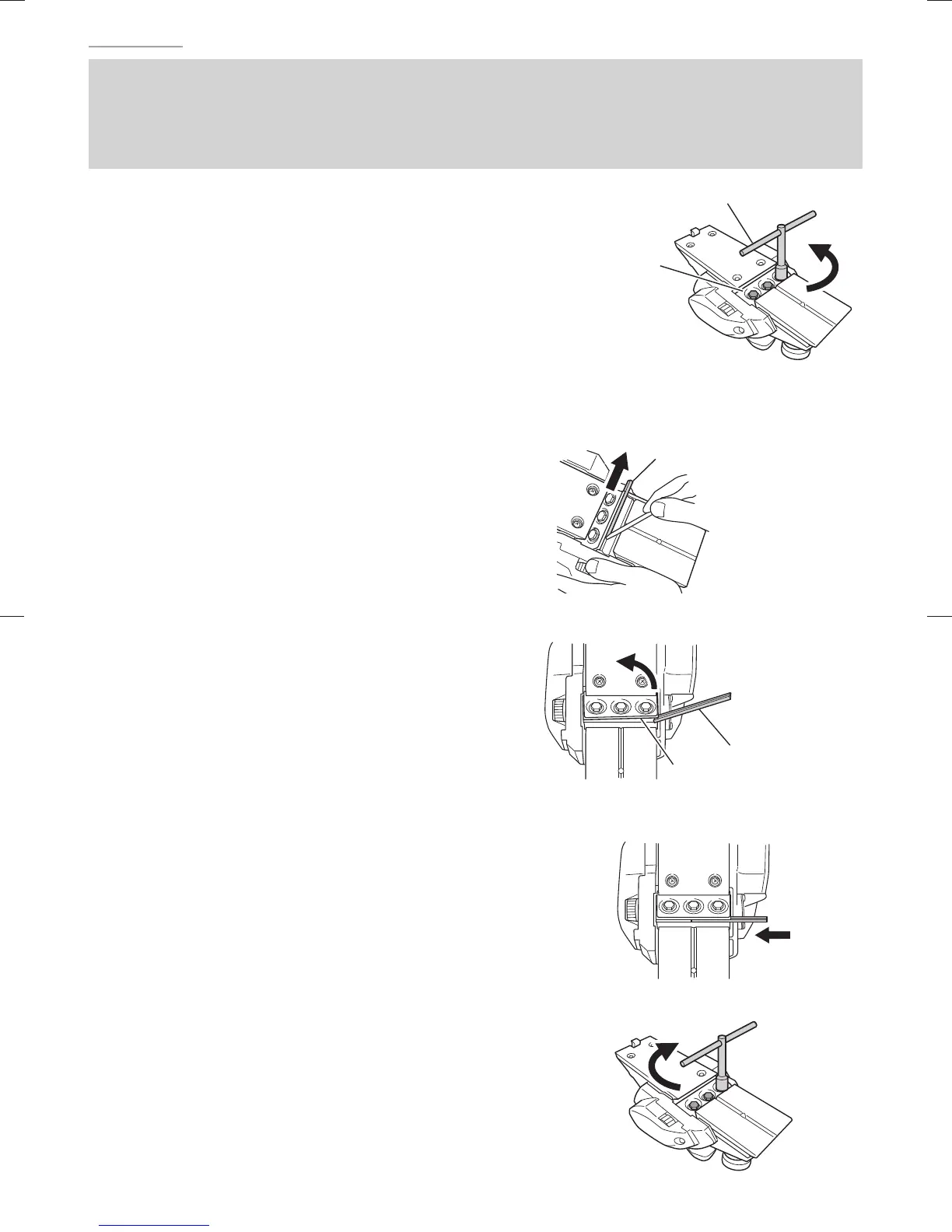

CARBIDE BLADE ASSEMBLY AND DISASSEMBLY
AND ADJUSTMENT OF CUTTER BLADE HEIGHT
(FOR DOUBLE EDGED BLADE TYPE)
1. Carbide blade disassembly
(1) As shown in Fig. 10, loosen the blade holder with
the attached box wrench.
(2) As shown in Fig. 11, remove the carbide blade by
sliding it with the attached box wrench.
CAUTION
Be careful not to injure your hands.
2. Carbide blade assembly
CAUTION
Prior to assembly, thoroughly wipe off all
swarf accumulated on the carbide blade.
(1) As shown in Fig. 12, lift set plate (B) and insert
the new carbide blade between cutter block and
set plate (B).
(2) As shown in Fig. 13, mount the new carbide
blade by sliding it on the set plate (B) so that the
blade tip projects by 1 mm from the end of the
cutter block.
(3) As shown in Fig. 14, fi x the bolts at the blade
holder after blade replacement has been
completed.
(4) Turn the cutter block over, and set the other side
in the same manner.
3. Adjustment of carbide blade height
CAUTION
If the carbide blade’s heights are inaccurate
after above procedures have been completed,
carry out the procedures described below.
Box wrench
Blade holder
Fig. 10
Carbide blade
(Double edged blade type)
Fig. 11
Set plate (B)
Carbide blade
(Double edged
blade type)
Fig. 12
Fig. 13
Fig. 14
000BookP20SFChS.indb20000BookP20SFChS.indb20 2016/07/1913:40:452016/07/1913:40:45

Hitachi P 20SF Specifications

General

Input power	620 W
Power source	AC
Idle speed	17000 RPM
Planning width (max)	82 mm
Chip thickness (max)	2.6 mm
Soft grip	Yes
Product color	Green

Weight and Dimensions

Width	296 mm
Weight	2500 g
