Hitachi RAS-10FSXNS2E User Manual

11
PMML0628 rev.0 - 05/2023
2

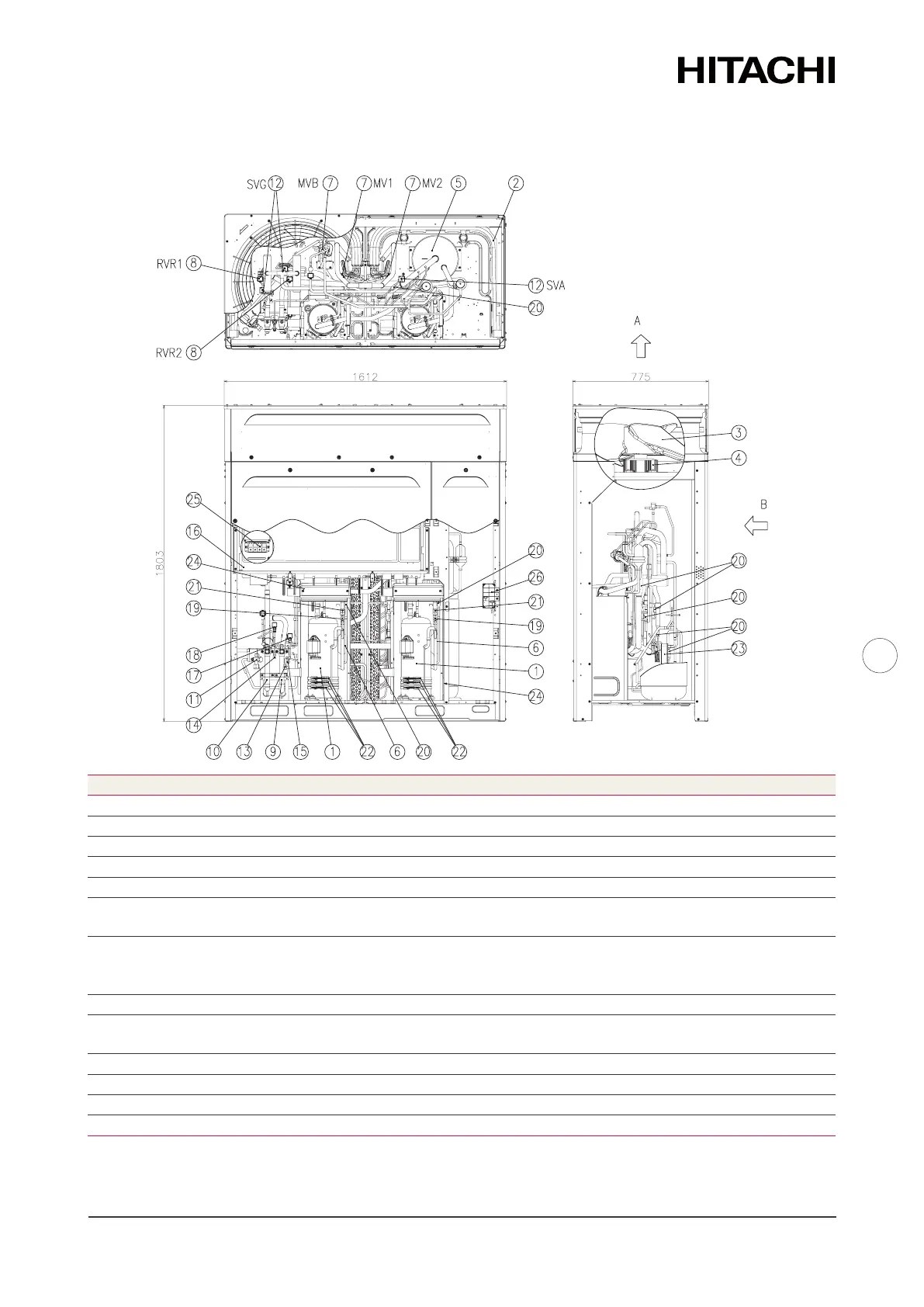

CABINET SIZE L
NAME OF PARTS
2.3 Cabinet size L
Nº
Part Name
Nº
Part Name
1
Compressor (inverter)
14
Check Joint (High)
2
Heat Exchanger
15
Check Joint (for Oil)
3
Propeller Fan (2 pieces)
16
Electrical Box
4
Fan Motor (2 pieces)
17
Low Pressure Sensor
5
Accumulator (Pressure Vessel)
18
High Pressure Sensor
6 Oil Separator (Not Pressure Vessel) 19
High Pressure Switch for Protecon
(2 pieces: RAS-(20-24)FSXNS2E, RAS-(16/18)FSXNP2E)
7
Micro-Computer Control Expansion Valve
(MVB,MV1,MV2)
(3 pieces: RAS-(20-24)FSXNS2E, RAS-(16/18)FSXNP2E)
20 Strainer (9 pieces)
8
Reversing Valve (RVR1,RVR2) (2 pieces)
21
Check Valve
9 Stop Valve (Gas) (Low Pressure) 22
Crankcase Heater
(6 pieces: RAS-(20-24)FSXNS2E, RAS-(16/18)FSXNP2E)
10
Stop Valve (Gas) (High/Low Pressure)
23
Plate Heat Exchanger
11
Stop Valve (Liquid)
24
Compressor Cover
12
Solenoid Valve (SVA,SVG) (3 pieces)
25
TB (Terminal Block)
13
Check Joint (Low)
26
NFC (Near Field Communicaon)
A: Air outlet
B: Air inlet
