Hitachi YUTAKI S Series User Manual

ENGLISH
7.3 SETTING OF DIP SWITCHES AND RSW SWITCHES
7.3.1 Outdoor unit

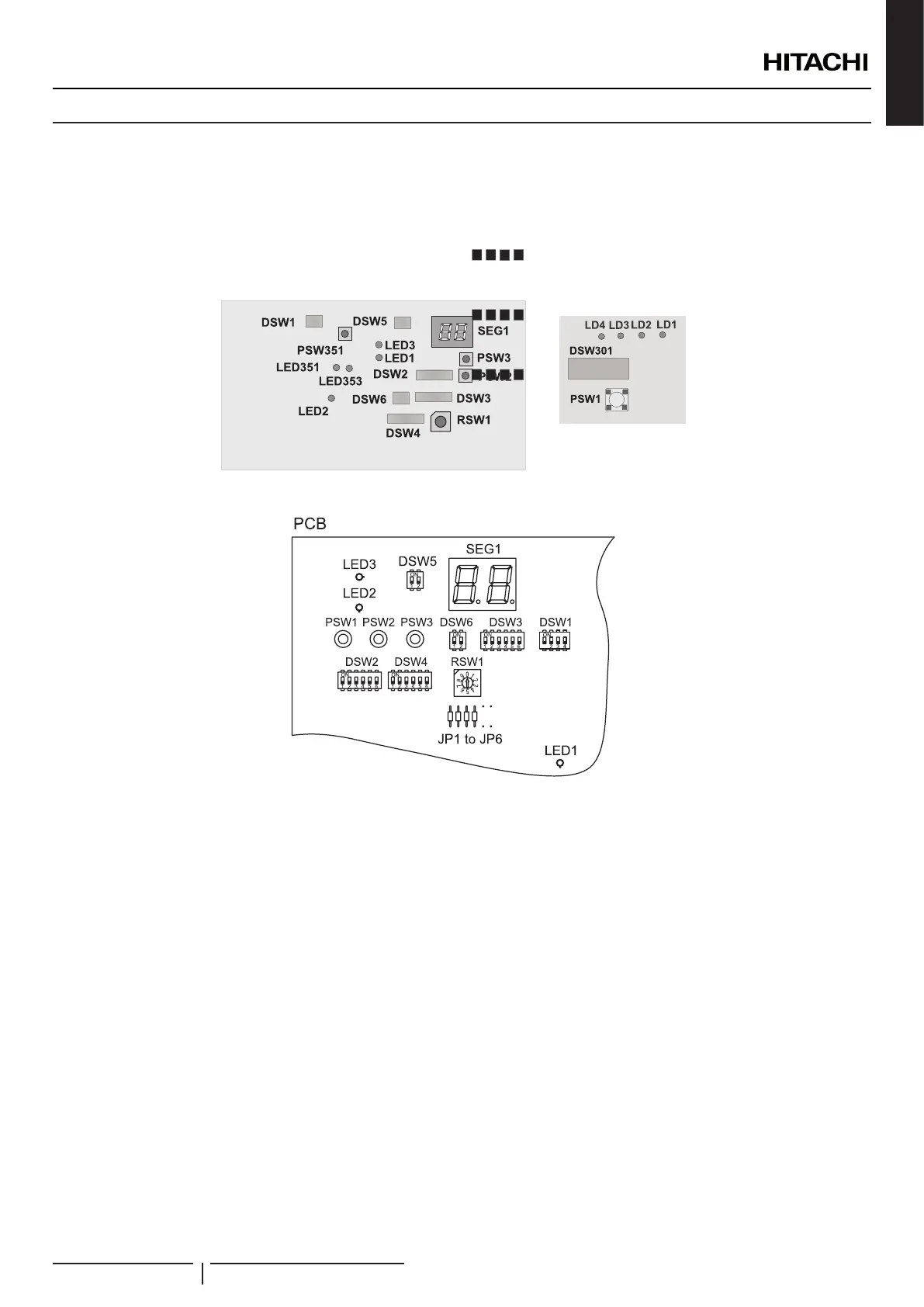

7.3.1.1 Location of DIP switches and rotary switches
The PCB in the outdoor unit is operating with DIP switches and push switches. The location is as follows:
RAS-(2/2.5)WHVNP
PCB1
RAS-(3-10)WH(V)NPE
? NOTE
DIP-IPM or PCB2 (depending on model) has a DSW1. When pin number 1 is set to ON position, the electrical current detections is cancelled. Pin
number 1 should be to OFF position after electrical work.
ELECTRICAL AND CONTROL SETTINGS
PMML0335A rev.1 - 04/2016
99

Hitachi YUTAKI S Series Specifications

General

Type	Air-to-Water Heat Pump
Refrigerant	R410A
Cooling Capacity	2.5 - 16 kW
Operating Temperature Range (Cooling)	46°C
Indoor Unit Dimensions	Varies by model
Outdoor Unit Dimensions	Varies by model
Noise Level	Varies by model
