GENERAL / Preparation
W1-6-2

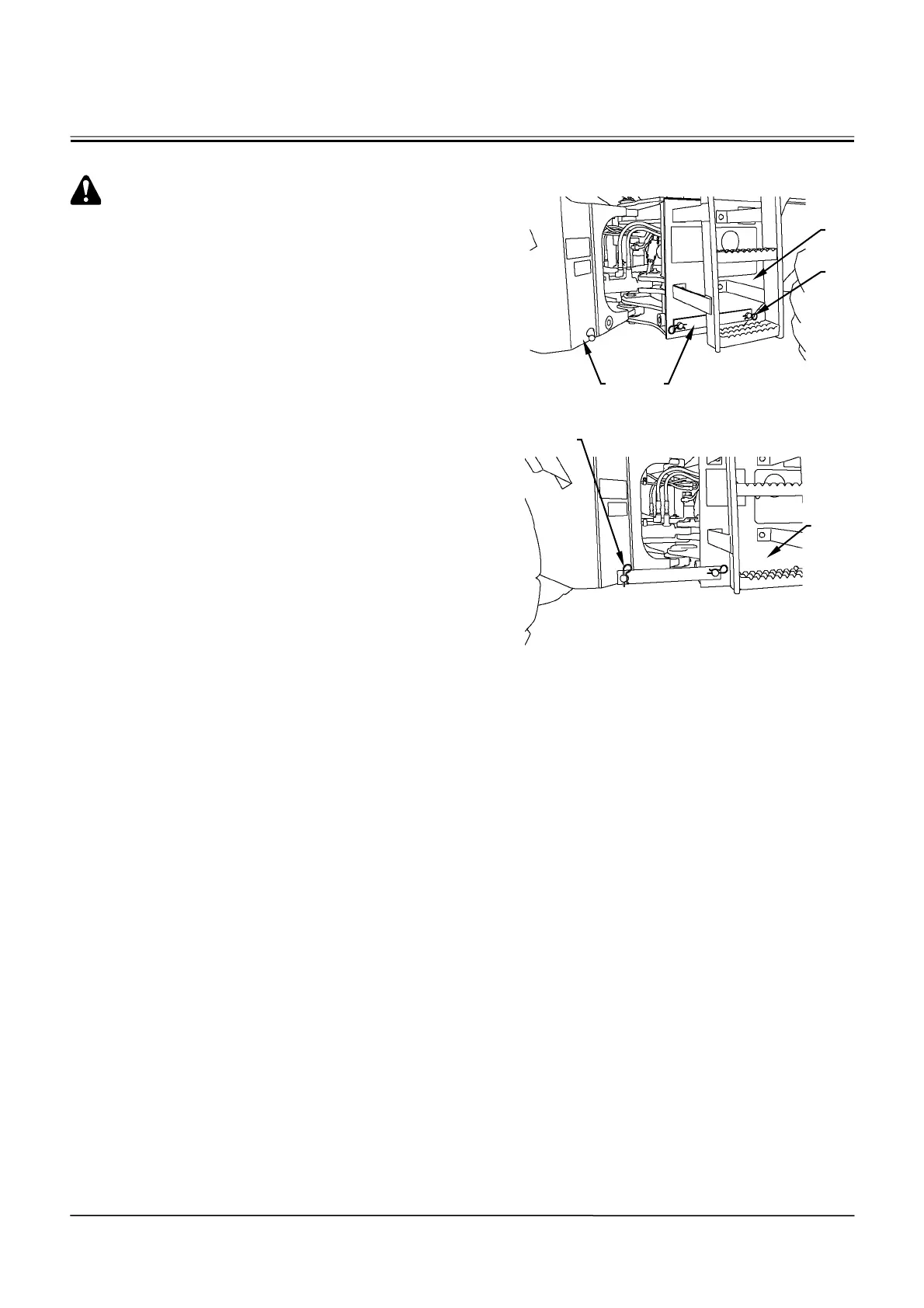

Lock Frames
CAUTION: Before beginning to work near the
front and rear frames (4), (5), install
articulation lock bar (3) to securely lock and
prohibit movement between the front and rear
frames (4), (5). Avoid accidents due to
unexpected movement of the machine.
1. Align the front and rear frame (4), (5) centers with
each other.
2. Remove β-pin (2). Install lock bar (1) is roated to
front frame (4).
3. Install β-pin (2) to lock bar (1) in the LOCK
position.
M4FJ-01-017
M4FJ-01-018
4 1
3
2
2
3
To Next Page
