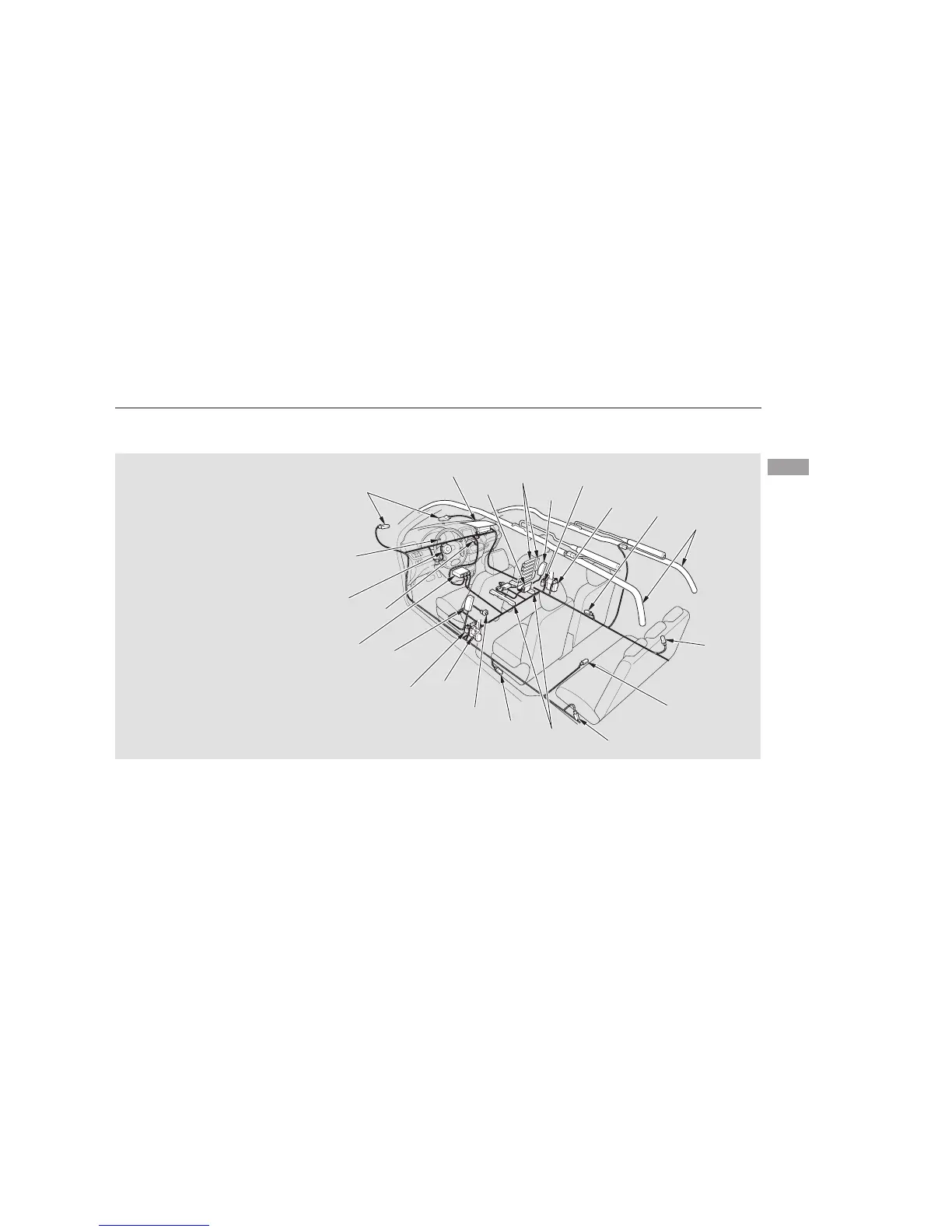

Airbag System Components
Additional Information About Your Airbags
Driver and Passenger Safety
25
(8) Front Passenger’s Weight Sensors
(9) Front Impact Sensors
(10) Passenger Airbag Off Indicator
(11) Side Impact Sensors
(15) Supplemental Restraint System
(SRS) Indicator
(1) Driver’s Front Airbag
(2) Passenger’s Front Airbag
(3) Control Unit
(4) Front Seat Belt Tensioners
(5) Side Airbags
(6) Side Curtain Airbag
(7) Driver’s Seat Position Sensor
(12) Occupant Position Detection
System (OPDS) Sensors
(13) Front Passenger’s Weight sensors/
OPDS Sensors Control Unit
(14) Rear Safing Sensor
(9)
(2)
(15)
(5)
(11)
(4)
(11)
(6)
(11)
(14)
(11)
(1)
(3)
(11)
(4)
(7)
(11)
(8)
(5)
(12)
(13)
(10)
