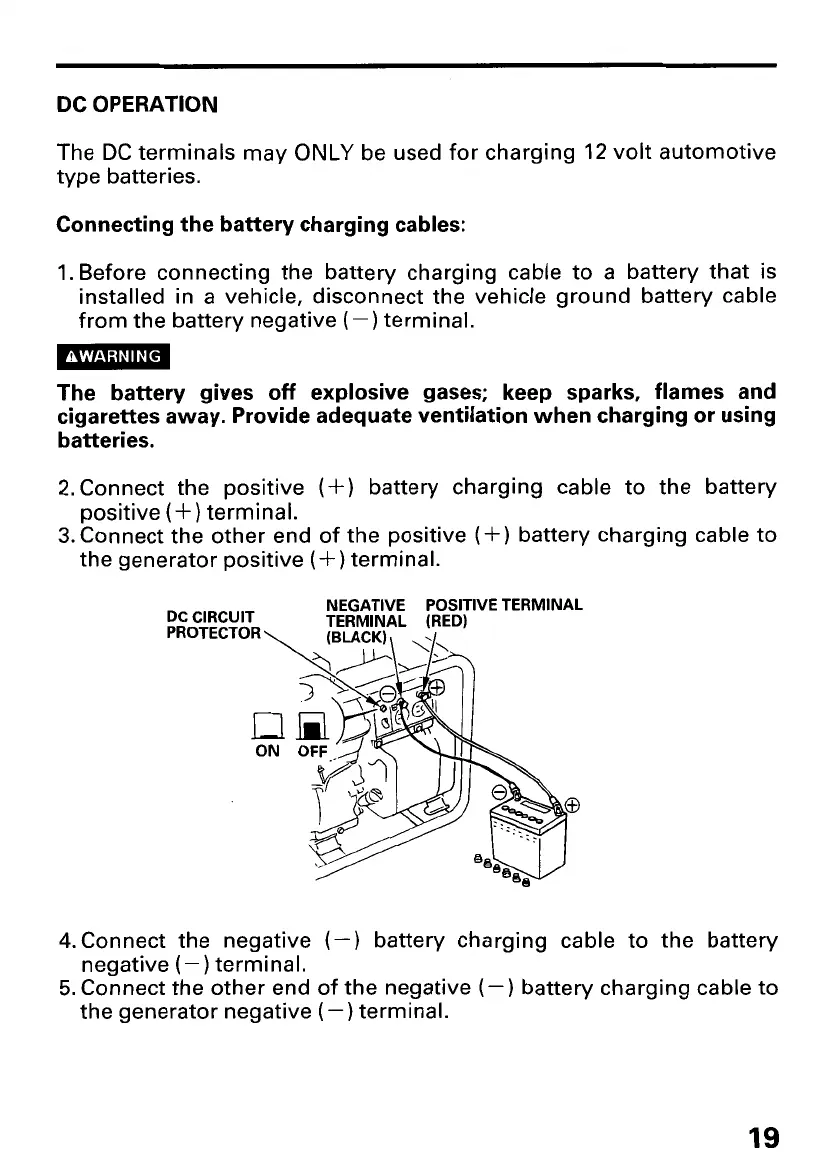

DC
OPERATION
The
DC
terminals may
ONLY
be used for charging
12
volt automotive
type batteries.
Connecting the battery charging cables:
1.
Before connecting the battery charging cable to a battery
that
is
installed in a vehicle, disconnect the vehicle ground battery cable
from the battery negative
(-)
terminal.
The battery gives
off
explosive gases; keep sparks, flames and
cigarettes away. Provide adequate ventilation when charging or using
batteries.
2.
Connect
the
positive
(+)
battery charging cable to
the
battery
3.
Connect the other end of the positive
(+)
battery charging cable to
positive
(+)
terminal.
the generator positive
(+)
terminal.
DC CIRCUIT
NEGATIVE POSITIVE TERMINAL
TERMINAL (RED)
4.
Connect
the
negative
(--)
battery charging cable to the battery
5.
Connect the other end
of
the negative
(-)
battery charging cable to
negative
(-)
terminal.
the generator negative
(-)
terminal.
19
