Honda EU20i Series User Manual

,.

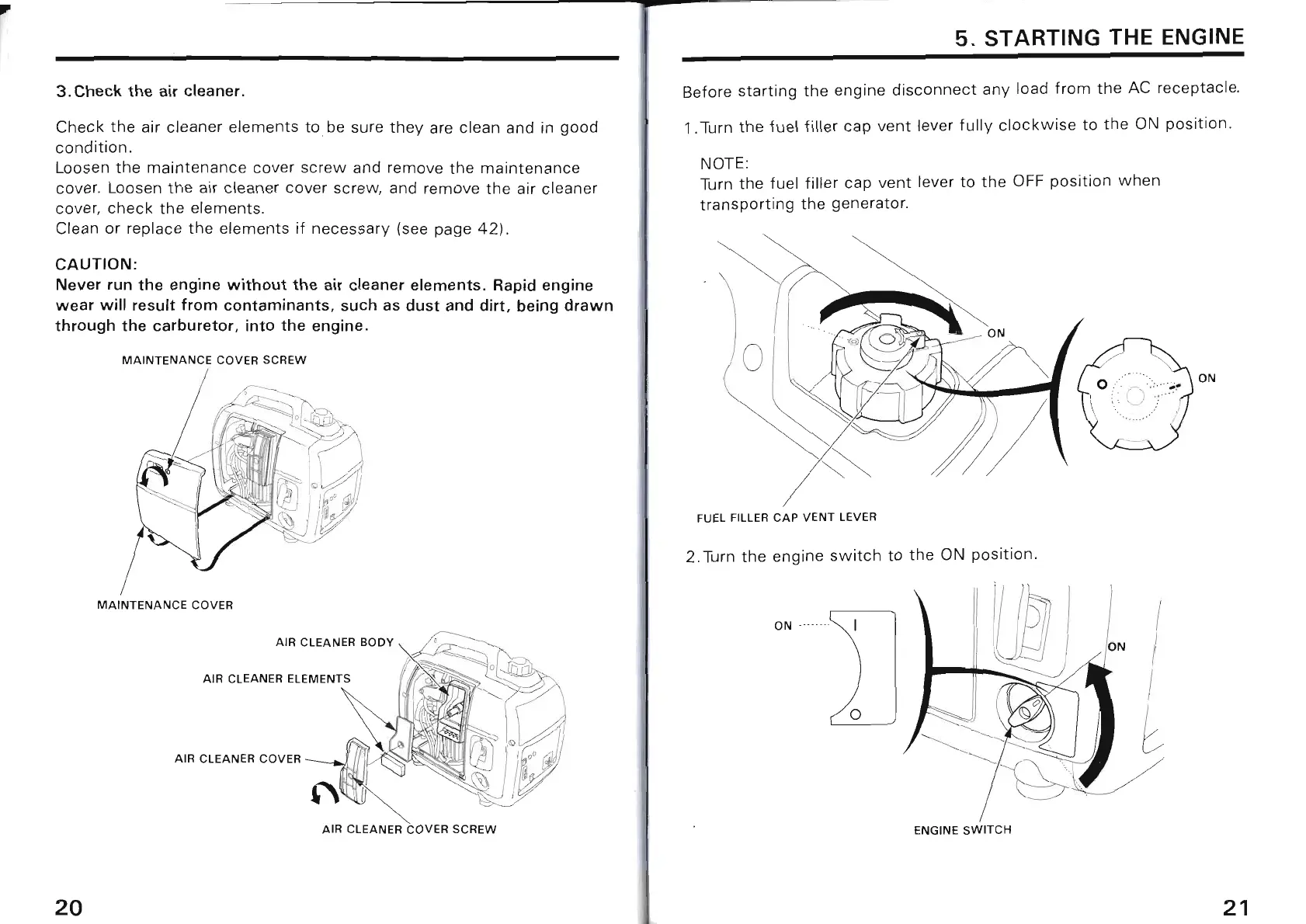

3. Check the air cleaner.
Check the air cleaner elements tobe sure they are clean and in good
condition.
Loosen the maintenance cover screw and remove the maintenance
cover. Loosen the air cleaner cover screw, and remove the air cleaner
cover,
check the elements.
Clean or replace
the elements if necessary (see page 42) .
CAUTION:
Never run the engine without the air cleaner elements. Rapid engine
wear will result from contaminants, such as dust and dirt, being drawn
through the carburetor, into the engine .
MAINTENANCE COVER SCREW
MAINTENANCE COVER
AIR CLEANER BODY
AIR CLEANER COVER
AIR CLEANER COVER SCREW
5. STARTING THE ENGINE
Before starting the engine disconnect any load from the AC receptacle.
1. Turn
the fuel filler cap vent lever fully clockwise to the ON position.
NOTE:
Turn
the fuel filler cap vent lever to the OFF position when
transporting the generator.
. ~
o
ON
~
FUEL FILLER CAP VENT LEVER
2. Turn the engine switch to the ON position.
ON .... ... .
o
ENG INE SWITCH
20
21

Honda EU20i Series Specifications

General

Model	EU20i
Noise Level at 1/4 Load	53 dB(A)
Dry Weight	21 kg
Inverter	Yes
Maximum AC Output	2000 VA
Rated AC Output	1600 VA
Engine Type	4-stroke, single cylinder
Fuel Tank Capacity	3.6 litres
Continuous Operating Hours at Rated Load	4.0 hours
Starting System	Recoil
AC Output	230V
DC Output	12V
Type	Portable Inverter Generator
