Honda EU20i Series User Manual

III"'"

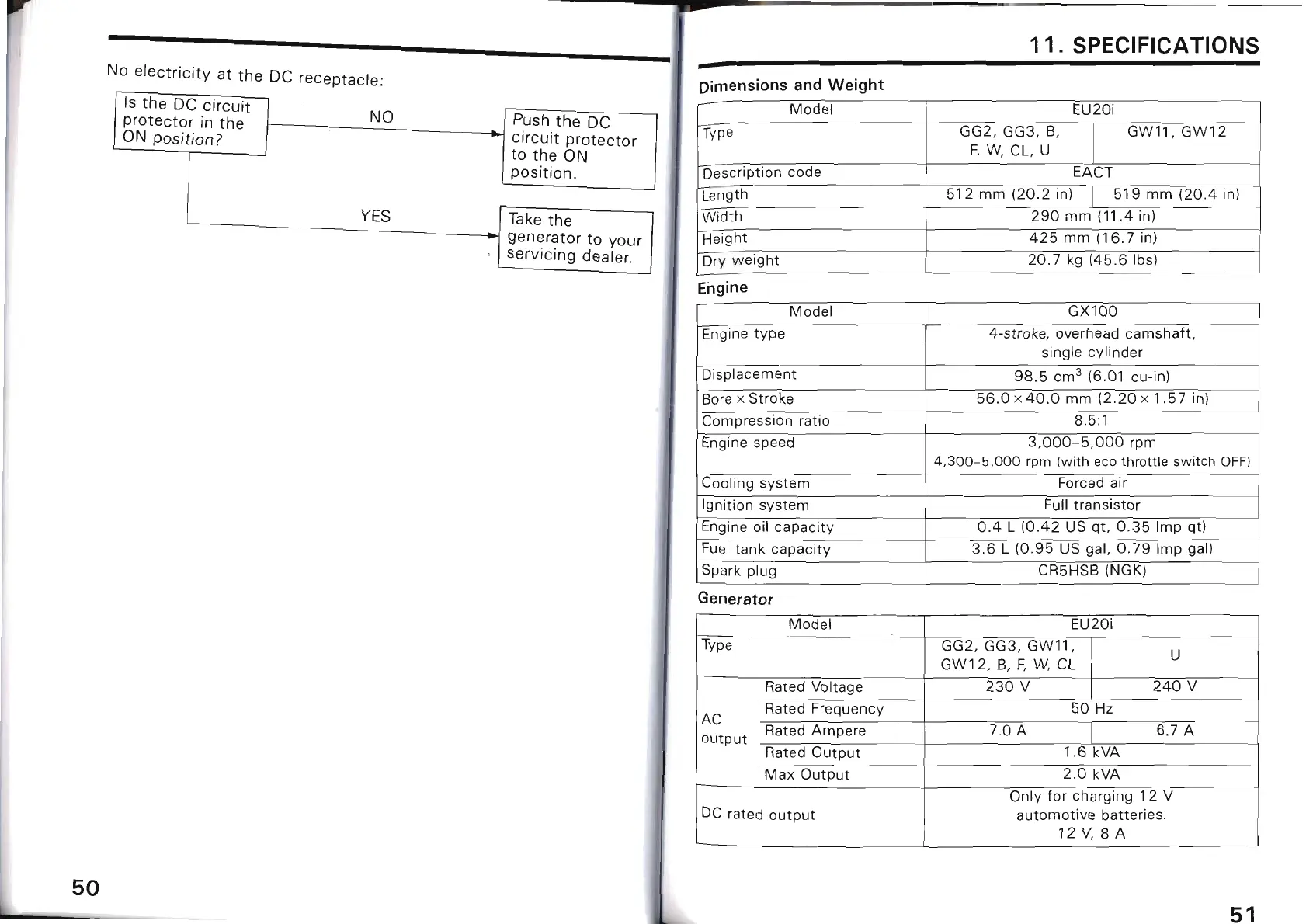

11. SPECIFICATIONS
No electricity at the DC receptacle:
Dimensions and Weight
Is the DC circuit NO
Model EU20i
protector in the
Push the DC
Type
GG2, GG3,
B, GW11, GW12
ON
position? ~ circuit protector
F, W, CL, U
to the ON
position.
Description code
EACT
Length
512 mm (20.2 in) 519 mm (20.4 in)
VES Width
290 mm (11.4 in)
Take the
~ generator to your
,
Height
425 mm (16 .7 in)
servicing dealer .
Dry
weight
20.7 kg (45.6 Ibs)
Engine
Model GX100
Engine type 4-stroke, overhead camshaft,
single cylinder
3
Displacement
98 .5 cm (6.01 eu-in)
Bore x Stroke
56.0 x 40.0 mm (2.20 x 1.57 in)
Compression ratio 8.
5:1
Engine speed
3,000-5,000 rpm
4,300-5,000 rpm (with eco throttle switch OFF)
Cooling
system
Forced air
Ignition
system
Full
transistor
Engine oil capacity
0.4 L (0.42 US qt, 0.35 Imp qt)
Fuel
tank capacity 3.6 L (0.95 US gal, 0 . 79 Imp gal)
Spark pi ug
CR5HSB (NGK)
r
Generator
[ ~
I
Model
EU20i
Type
GG2, GG3, GW11,
U
GW12, B, F, W, CL
Rated Voltage
230 V 240 V
,.
Rated Frequency
50 Hz
AC
Rated
Ampere
7.0 A
6.7 A
output
Rated Output
1.6 kVA
Max Output
2.0 kVA
Only for charging 12 V
~ DC rated output
automotive batteries.
I,
12V,8A
I,
50
~
51

Honda EU20i Series Specifications

General

Model	EU20i
Noise Level at 1/4 Load	53 dB(A)
Dry Weight	21 kg
Inverter	Yes
Maximum AC Output	2000 VA
Rated AC Output	1600 VA
Engine Type	4-stroke, single cylinder
Fuel Tank Capacity	3.6 litres
Continuous Operating Hours at Rated Load	4.0 hours
Starting System	Recoil
AC Output	230V
DC Output	12V
Type	Portable Inverter Generator
