Honda GX670 User Manual

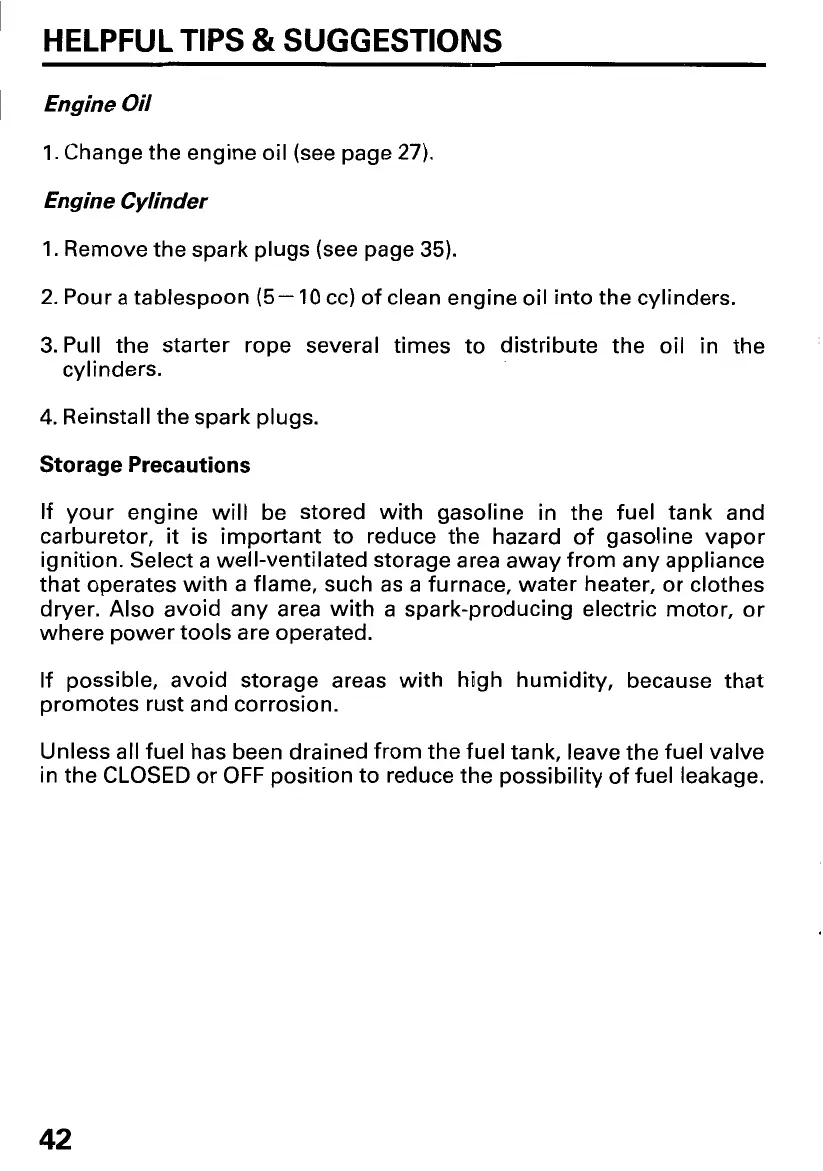

HELPFUL TIPS & SUGGESTIONS
Engine Oil
1. Change the engine oil (see page 27).
Engine Cylinder
1. Remove the spark plugs (see page 35).
2. Pour a tablespoon (5- 10 cc) of clean engine oil into the cylinders.
3. Pull the starter rope several times to distribute the oil in the
cylinders.
4. Reinstall the spark plugs.
Storage Precautions
If your engine will be stored with gasoline in the fuel tank and
carburetor,
it is important to reduce the hazard of gasoline vapor
ignition. Select
a well-ventilated storage area away from any appliance
that operates
with a flame, such as a furnace, water heater, or clothes
dryer.
Also avoid any area with a spark-producing electric motor, or
where power tools are operated.
If possible, avoid storage areas with high humidity, because
that
promotes rust and corrosion.
Unless
all fuel has been drained from the fuel tank, leave the fuel valve
in the CLOSED or
OFF position to reduce the possibility of fuel leakage.
42

Honda GX670 Specifications

General

Compression Ratio	8.3:1
PTO Shaft Rotation	Counterclockwise (from PTO shaft side)
Cooling System	Forced air
Ignition System	Digital CDI with variable timing
Lubrication System	Forced lubrication with trochoid pump
Engine Type	4-stroke, OHV
Displacement	670 cm³
Bore x Stroke	77 x 72 mm
Oil Capacity	1.9 L
Starting System	Electric starter
Net Power Output	22.1 HP at 3600 RPM
