TECHNICAL
&
CONSUMER INFORMATION
Remote Control Linkage
The throttle and choke control levers are provided with holes for
optional cable attachment.
1.

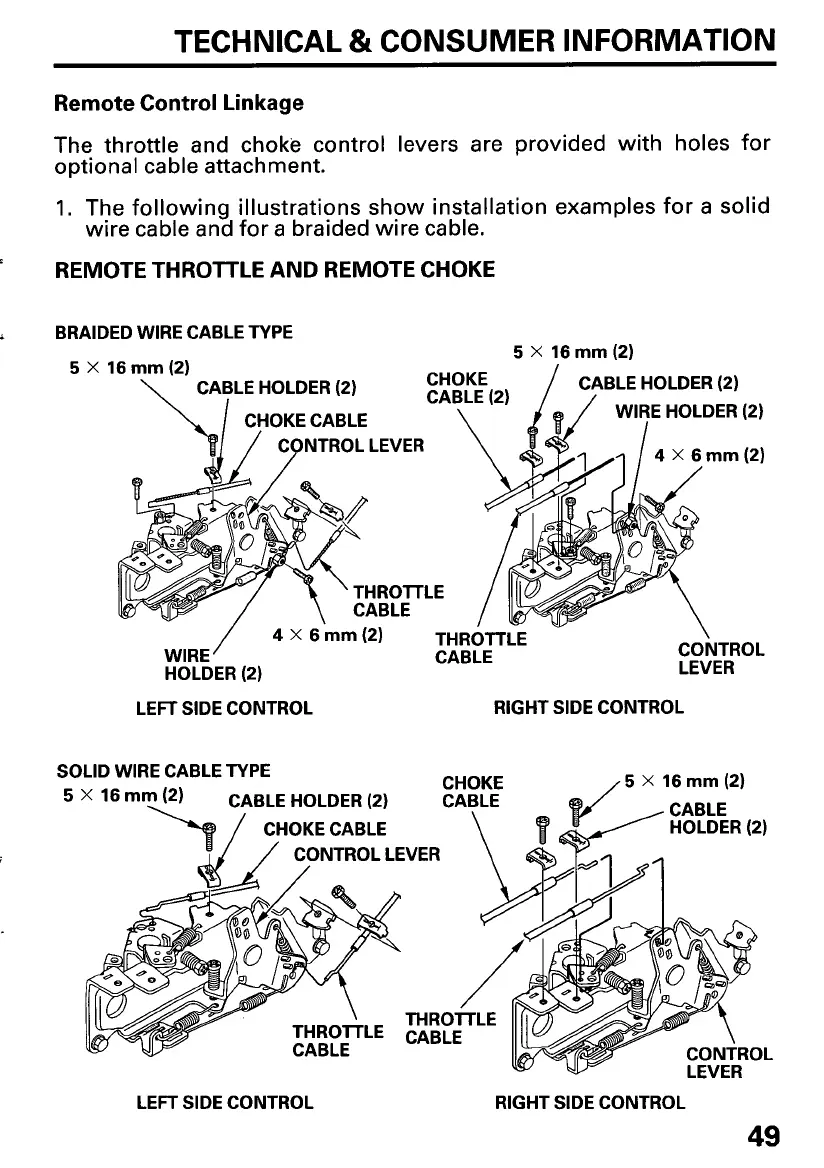

The following illustrations show installation examples
for
a
solid
wire cable and for
a
braided wire cable.
’
REMOTE THROTTLE
AND
REMOTE CHOKE
BRAIDED WIRE CABLE TYPE
5
X
16
mm
(2)
CONTROL
HOLDER
(2)
LEVER
LEFT SIDE CONTROL RIGHT SIDE CONTROL
SOLID WIRE CABLE TYPE
BLE HOLDER
(2)
LEFT SIDE CONTROL RIGHT SIDE CONTROL
