Honda GX670 User Manual

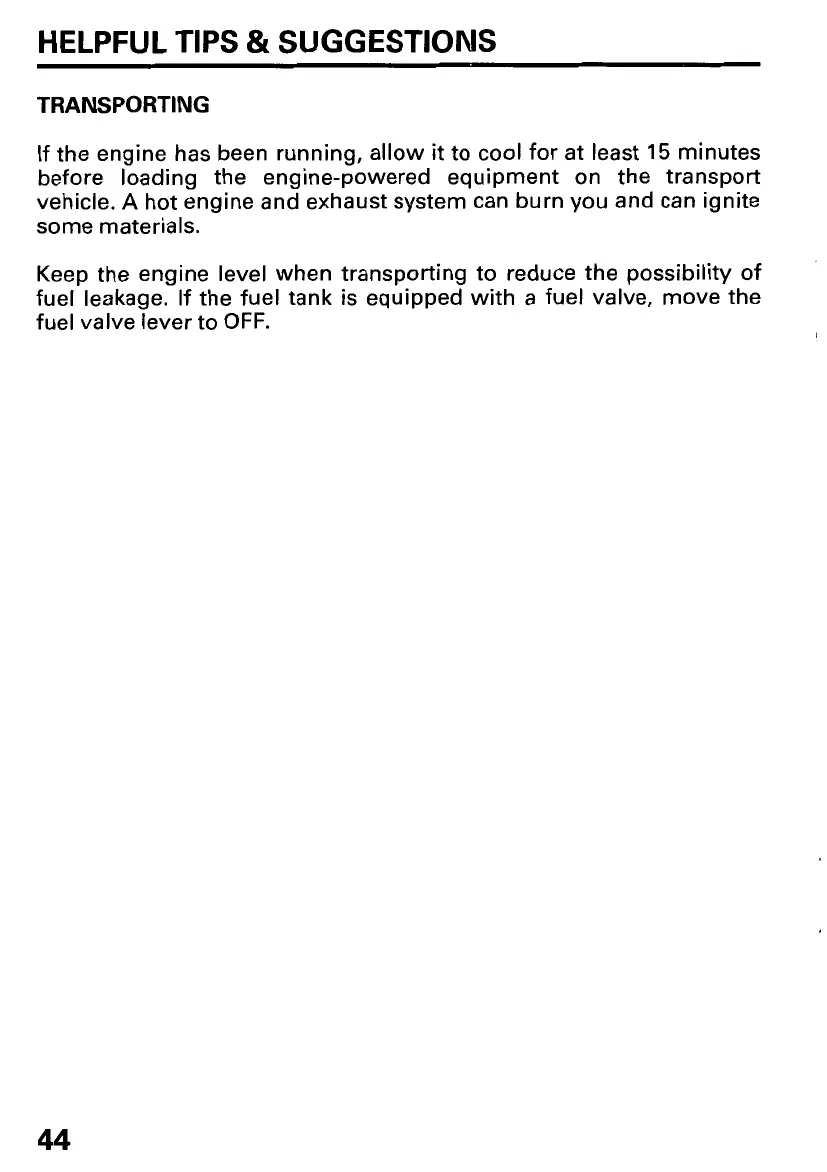

HELPFUL TIPS & SUGGESTIONS
TRANSPORTING
If the engine has been running, allow it to cool for at least 15 minutes
before loading the engine-powered equipment on the transport
vehicle.
A hot engine and exhaust system can burn you and can ignite
some materials.
Keep the engine level when transporting to reduce the possibility of
fuel leakage. If the fuel tank
is equipped with a fuel valve, move the
fuel valve lever to
OFF.
44

Honda GX670 Specifications

General

Compression Ratio	8.3:1
PTO Shaft Rotation	Counterclockwise (from PTO shaft side)
Cooling System	Forced air
Ignition System	Digital CDI with variable timing
Lubrication System	Forced lubrication with trochoid pump
Engine Type	4-stroke, OHV
Displacement	670 cm³
Bore x Stroke	77 x 72 mm
Oil Capacity	1.9 L
Starting System	Electric starter
Net Power Output	22.1 HP at 3600 RPM
