Removing & Installing Body Components u Right Engine Heat Guard & Right Under Fairing
76
Maintenance
Right Engine Heat Guard &
Right Under Fairing
❙

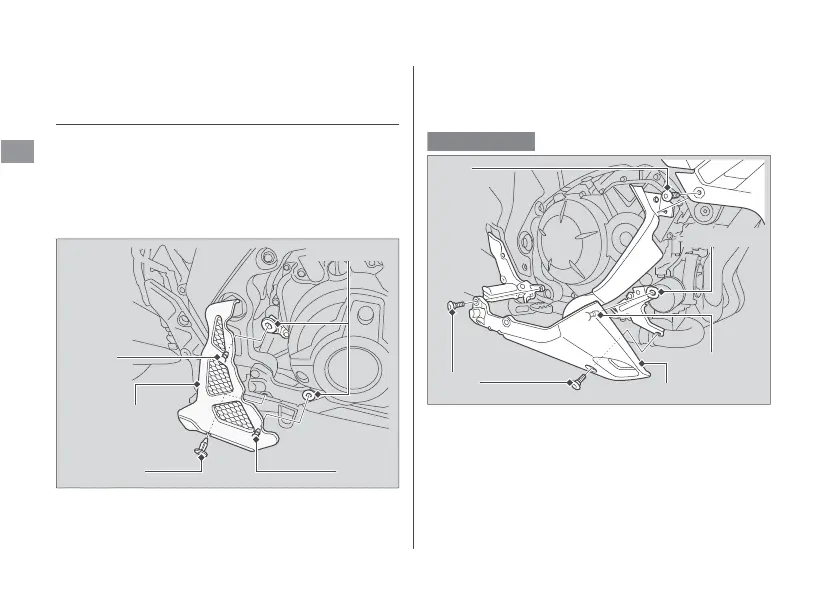

Removal
1.
Remove the clip.
2
P. 75
2.
Remove the prongs from the grommets.
3.
Remove the right engine heat guard.
4.
Remove the bolts.
5.
Remove the prong from the grommet.
6.
Remove the right under fairing.
Prong
Clip
Grommets
Prong
Right engine
heat guard
VFR1200X/XA
Bolt
Bolts
Prong
Grommet
Right under fairing
