Electrical Trouble u Blown Fuse
91
Blown Fuse
Before handling fuses, see “Inspecting and
Replacing Fuses.” 2 P. 41
#
Fuse Box Fuses
1.
Open the seat 2 P. 31
2.
Remove the battery cover. 2 P. 50
3.
Open the fuse box covers.
4.
Pull out the fuses one by one to check for a
blown fuse. Always replace a blown fuse
with a spare fuse of the same rating.
u Spare fuses are located on reverse side
of the battery cover.
5.
Close the fuse box covers.
6.
Install the battery cover.
7.
Close the seat.
If a fuse fails repeatedly, you likely have an electrical
problem. Have your motorcycle inspected by your dealer.

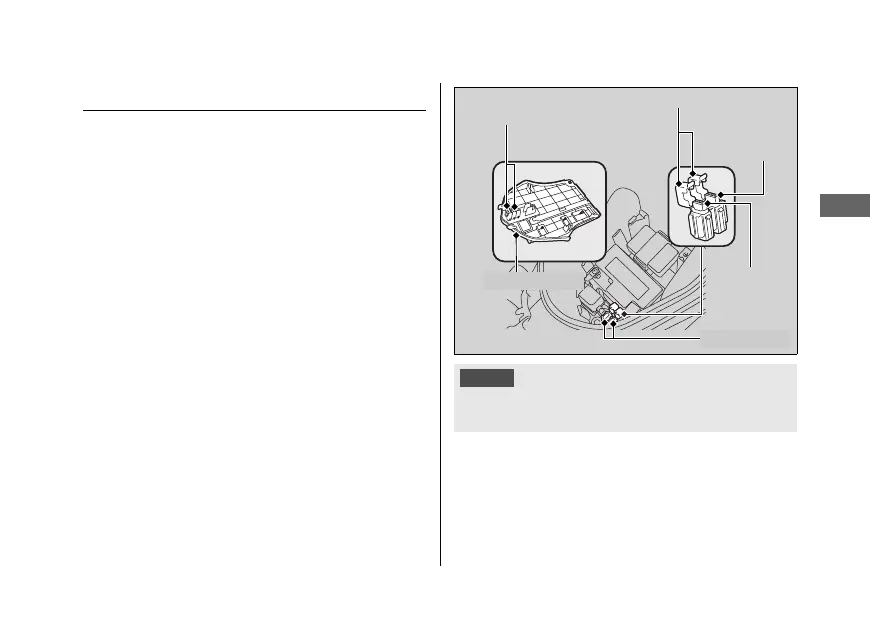

Fuse box covers
Spare fuses
Sub
fuse
Main
fuse
Fuse boxes
Battery cover
