HAWK 8000 CONTROLLER – INSTALLATION & COMMISSIONING INSTRUCTIONS
EN1Z-1016GE51 R0218 4
MaterialANSIs and Tools Required
▪ One of the following:
- UL-listed, Class 2, 24 VAC transformer, rated at a
minimum of 24 VA. A dedicated transformer is
required (must not be used to power additional
equipment), or
- UL-listed, Class 2 or LPS 24 VDC power supply,
capable of supplying at least 1 A (24 W), or
▪ DIN rail, type NS35/7.5 (35 mm X 7.5 mm) and DIN rail-
clips (stop clips), recommended for any installation that
includes option modules. The HAWK 8000 is also panel-
mountable.
▪ Suitable tools and fasteners for mounting the unit and any
accessories.
PREPARATION
MicroSD
2GB
1
3

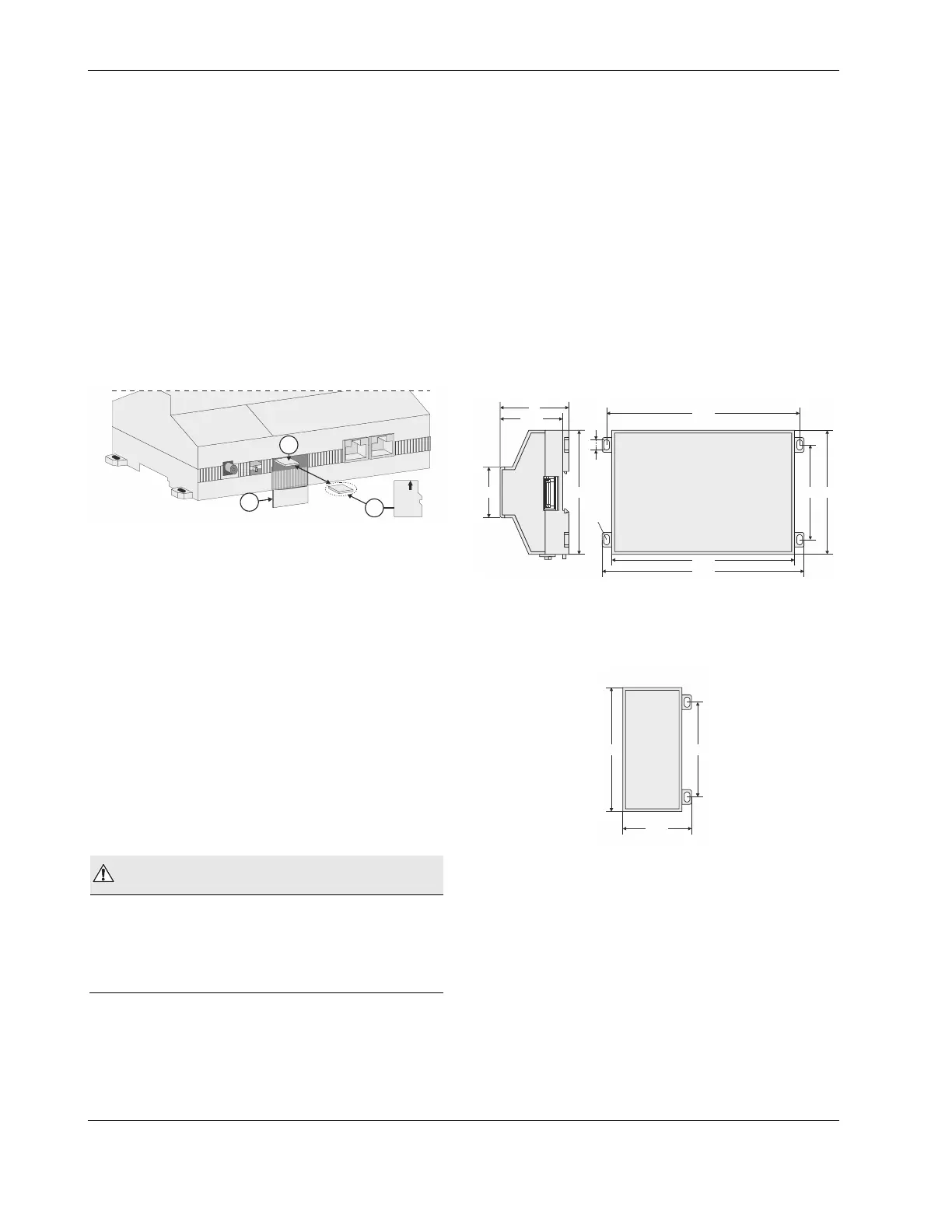

Fig. 2. Removal of microSD flash memory card
Legend
1. Access shutter for microSD flash memory card
2. Card carrier inside controller
3. The microSD flash memory card to insert or remove
from card carrier. Insert card with the label pointing
upwards, until the spring catch latches. If properly
inserted, the card is behind the shutter track. To remove
the card, push and release the card.
Before mounting a new controller, you must first insert the
microSD flash memory card (included in the delivery).
NOTE: The microSD flash memory card has the controller's
unique, factory-set Niagara identity (host ID). The
data on the card is encrypted by a special "system
password" stored in the controller base software. If
you swap in a card from a previously configured unit,
you must re-enter this same password using a serial
connection to the controller's Debug port.
WARNING
Risk of electric shock or equipment damage!
► Disconnect the power supply before removing or inserting
the microSD flash memory card. Failure to do so is likely
to damage the equipment.
MOUNTING
Mount the HAWK 8000 in a location that allows clearance for
wiring, servicing, the antenna, and module removal.
Environmental Requirements
NOTE: This product is for indoor use, only, below an altitude
of 2,000 meters (6,562 feet) above sea-level.
Ambient conditions must be within a range of:
▪ Operating temperature: -20 … +60 °C (-4 … +140 °F).
Storage temperature: -40 … + 85 °C (-40 … +185 °F).
▪ Relative humidity: 5 … 95%, non-condensing.
▪ Supply (mains) voltage requirements are:
- Allowable voltage fluctuation to ±10%.
NOTE: Horizontal mounting is strongly recommended. This
is to achieve maximum heat dissipation and comply
with the operating temperature upper limit. Any other
mounting orientation reduces this upper limit.
Dimensions, Tab Mounting
110110
171.1
61
55.5
179
162
8445
8.6
Ø4.2
Fig. 3. HAWK 8000, dimensions (in mm)
NOTE: Allow at least 38 mm clearance around all sides and
a minimum 76 mm at the bottom for the WiFi
antenna.
110 84
61.1
Fig. 4. Expansion module, dimensions (in mm)
NOTE: Up to four expansion modules may be used.
(Separate limits may exist in the controller's license
which may further limit options.)
