TERMINAL SETTINGS
EN1B-0022 IE10 R0717 6
Terminal Settings
This section describes the terminal settings on the CPO-VAV2A controller.
CPO-VAV2A Terminal Overview

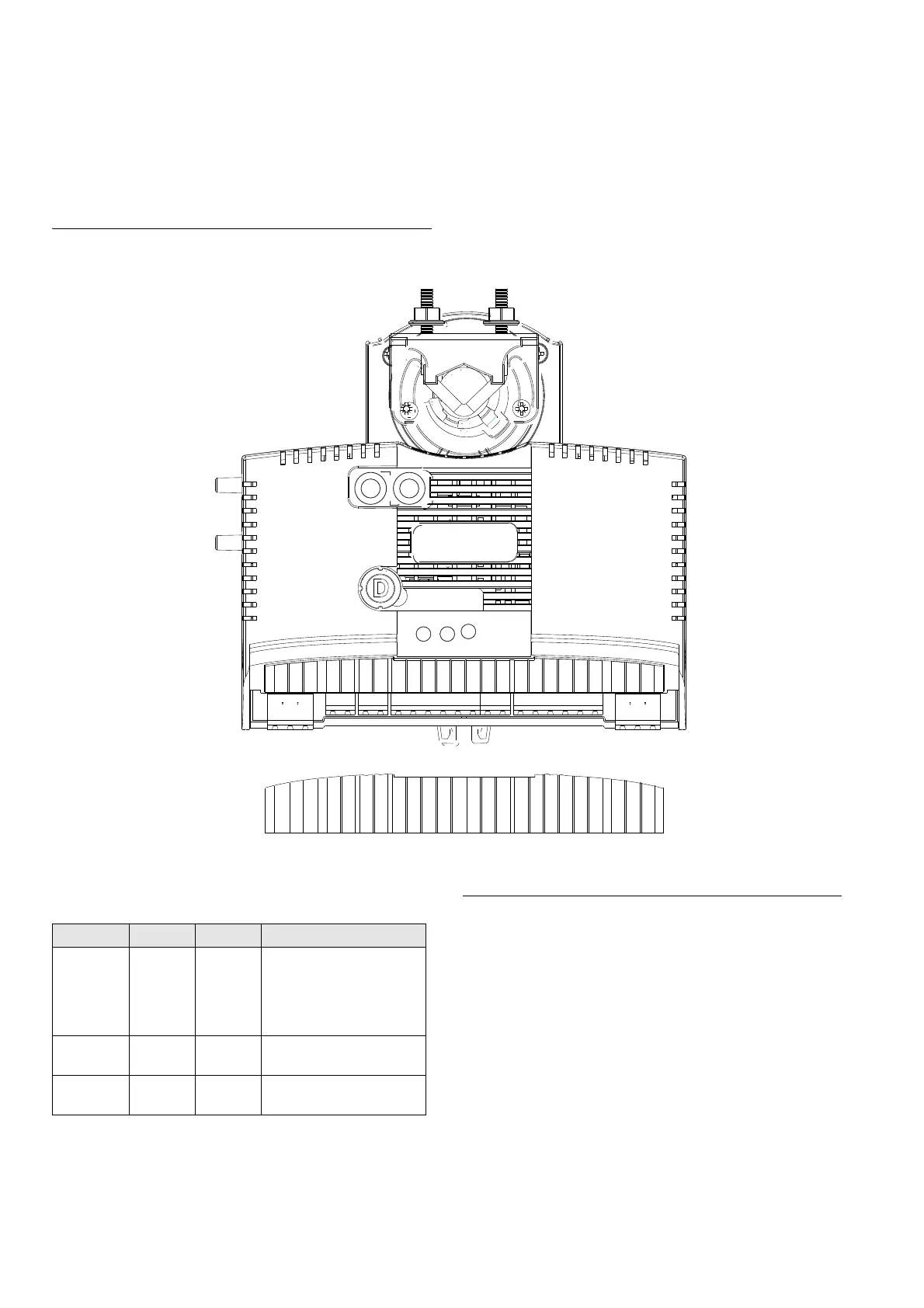

Figure 13 describes the layout of pins on the CPO-VAV2A controller.
Figure 13 Describes the layout of pins on the CPO-VAV2A controller.
LED operation Automatic MAC addressing
Controllers with Automatic MAC addressing functionality can
be identified by a label covering the MAC address rotary
switches. This information is also printed on the product label
available on the controller. When a controller with Automatic
MAC addressing feature is powered ON, can assign its own
unique MAC address ranging from 1 to 30. It can also coexist
with other unitary controllers whose MAC addresses are set
manually. The controller can automatically adjust the MAC
address at any time to avoid duplicate addresses in the
network. The automatic MAC address assigned through this
process is retained when the controller is powered OFF.
To disable Automatic MAC addressing, remove the label on
the rotary switches and set the switches to the manual
485- 485+ FGND S-BUS S-BUS
AI1 AGND AGND
Temp Set Point ByPass/Fan LED
AO2 AGND AO1
DO6 COM DO5 DO4 COM DO3 FGND N24VAC S24VAC
RxTxRun
Declutch Button
Honeywell
Comfort Point
TM
Open
L
H
S1
S2
A
B
C
D
E
F
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
4
5
6
7
8
9
485- 485+ FGND S-BUS S-BUS
AI1 AGND AGND
Te mp Set Point ByPass/Fan LED
AO2 AGND AO1
DO6 COM DO5 DO4 COM DO3 FGND N24VAC S24VAC
Sr.No LED Label LED Color Description
1 Run Green The LED is Off when there
is no power to the controller.
LED is blinking when the
controller is working
normally.
2 Rx Yellow LED indicates Receive of
data on MS/TP bus.
3 Tx Yellow LED indicates Transmit of
data on MS/TP bus
