DTC 100/4 TD
13

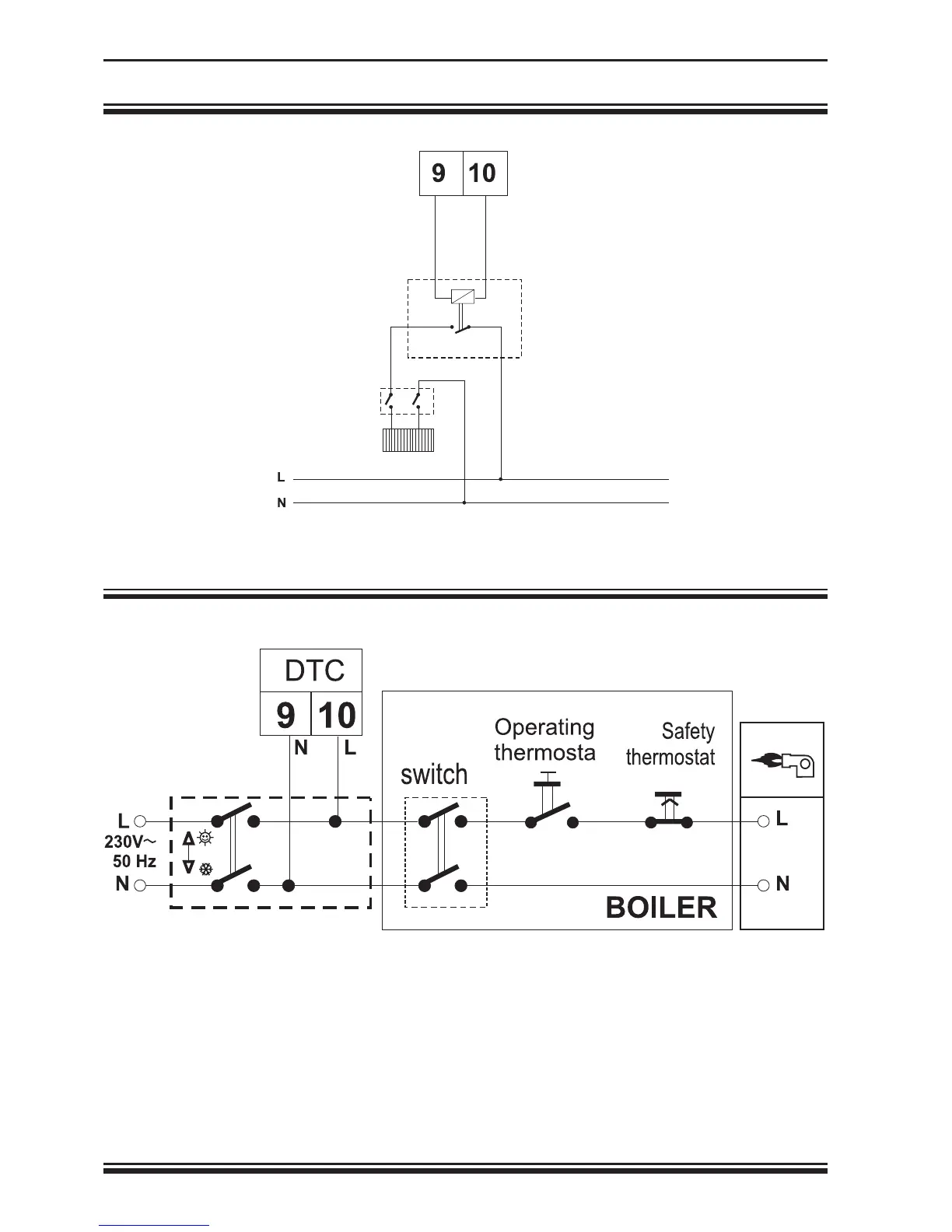

CONNECTION OF ELECTRIC HEATING ELEMENT
SAFETY THERMOSTAT
OF HEATING
ELEMENT
POWER RELAY
230V, 50Hz
EL. HEATER
BURNER CONTROL
WARNING:
Before opening, unplug from power supply.
Only qualified person can maintain the apparatus.
