Keyboard Wedge
1. Turn off the host system.
2. Plug the male, 10-pin RJ45 end of the
PowerLink cable into the 10-pin
socket on the MS5145.
3. Disconnect the keyboard from the
host/PC.
4. Connect the Y ends of the PowerLink
cable to the keyboard and the host’s
keyboard port. If necessary, use the
supplied adapter cable to make the
connections.
5. Plug the external power supply into
the power jack on the PowerLink
cable.
6. Check the AC input requirements of
the power supply to make sure the
voltage matches the AC outlet. The
outlet must be located near the
equipment
7. Connect AC power to the transformer.
8. Turn on the host system.
Installation Note
Powering the MS5145-47 directly from the computer can sometimes cause
interference with the operation of the scanner or the computer. Not all computers
supply the same current through the keyboard port, explaining why a scanner
may work on one computer and not another. Contact a customer service
representative if an external power supply is required.
See caution on page 4.

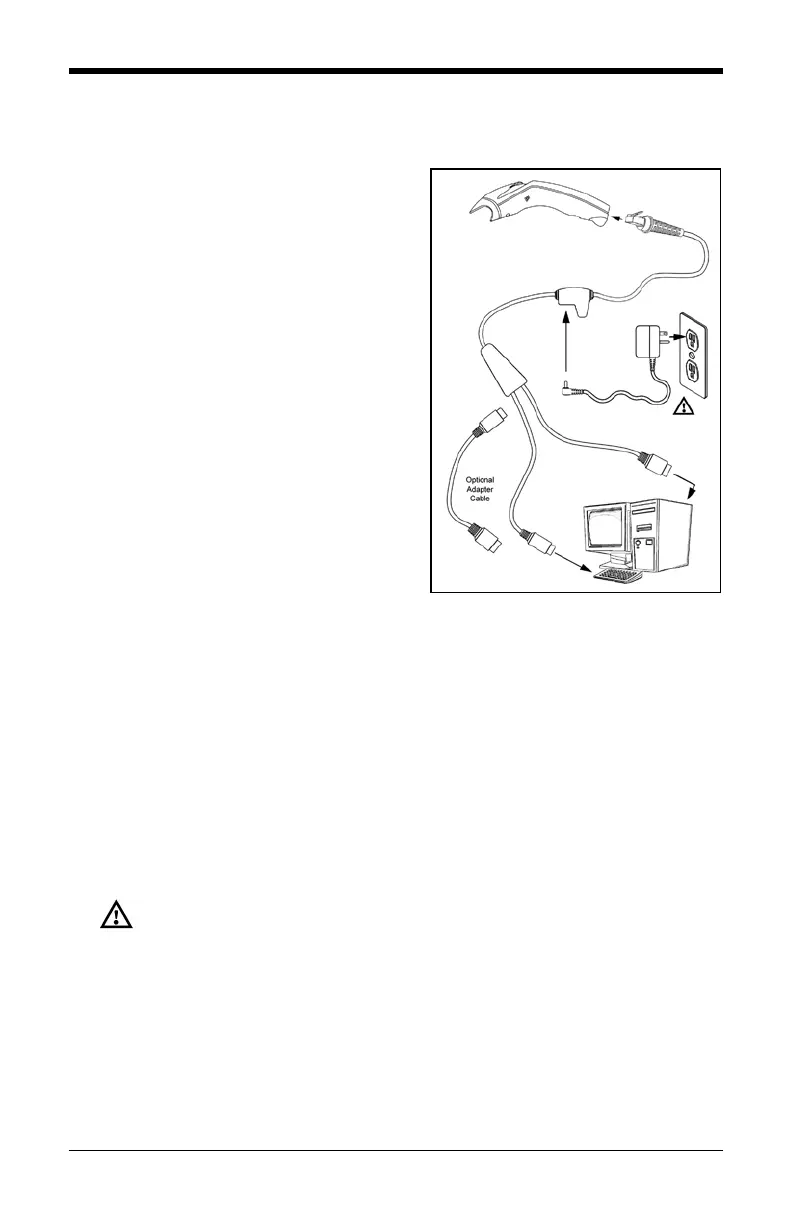

Figure 7. Keyboard Wedge
