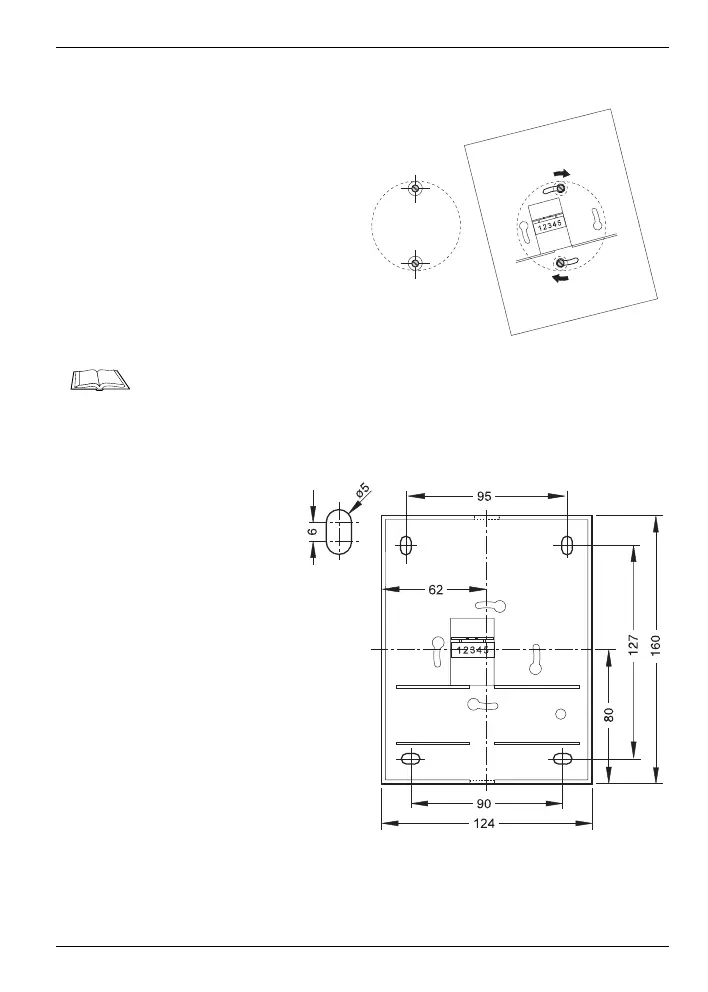

Mounting
Surface mounting
10
► Turn two screws half
into the flush-mounted
box (do not tighten
yet).
► Place the mounting
panel on the screws
and align it vertically.
► Tighten the screws.
For further information read "Fastening the operating unit".
Surface mounting
► Mark the drill-
ing holes.
► Drill the holes
and dowel
them.
