Chapter 3 — How to Set Up Your Printer
10 MP Compact4 Mark III User Guide

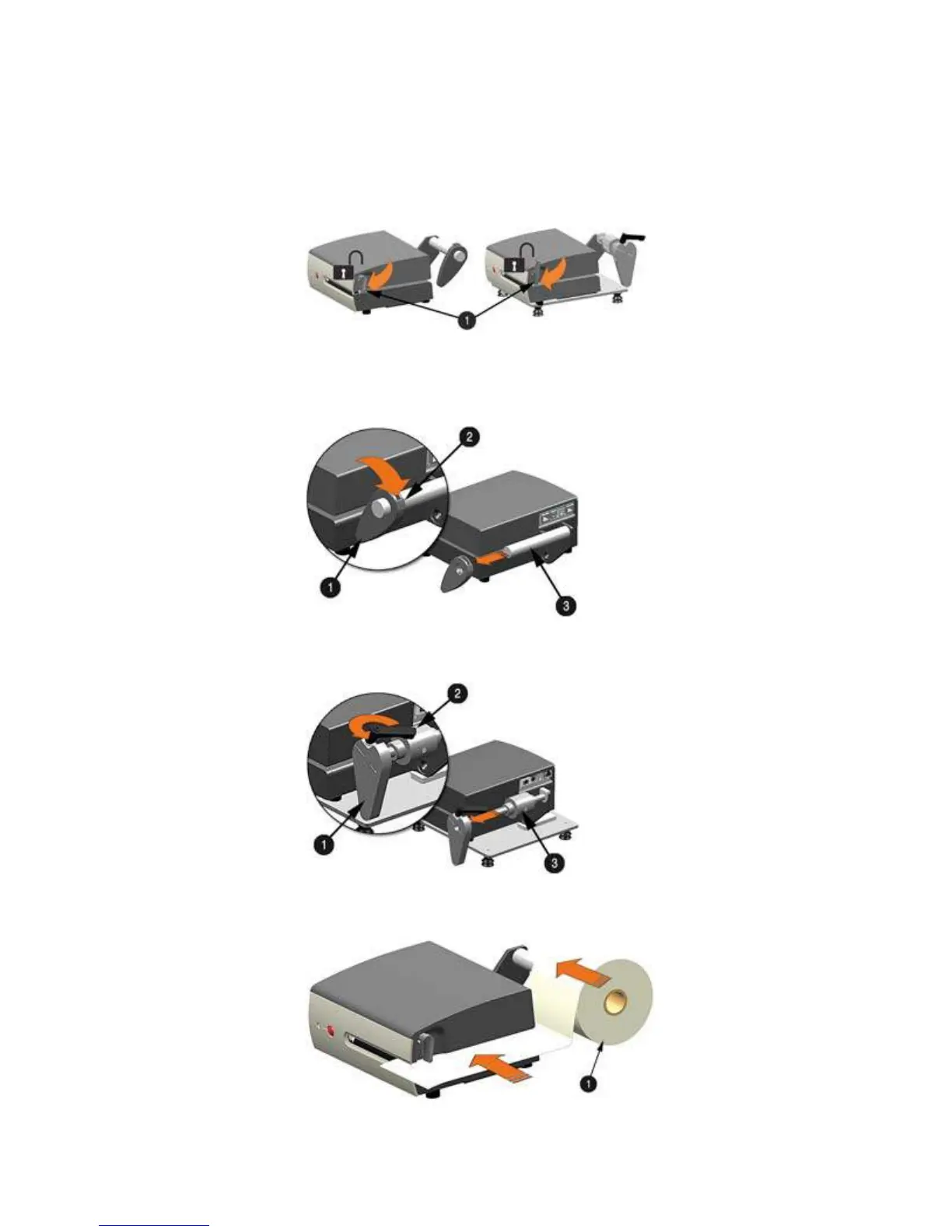

Load the Media
1 Rotate the printhead latch (item 1) clockwise to the unlocked position. See
image below: AC models (right), DC models (left).
2 Remove the media hub guide.
AC Models: Move the thumb-latch (item 2) to the released position and then
slide the media hub guide (item 1) off the media hub (item 3).
DC Models: Loosen the media guide handle (item 2) and slide the media
hub guide (item 1) off the media hub (item 3).
3 Unravel approximately 30.5 mm (12”) of labels from the label roll (item 1).
Slide the labels and label roll into the printer from the side as shown.
