T7300F SERIES 2000 COMMERCIAL MICROELECTRONIC CONVENTIONAL
OR HEAT PUMP THERMOSTAT
Thermostat Information
1. Press the Heat/Cool Settings key to access the
thermostat information.
M4934
M4931
2. Press the increase ▲ ▲ key to display the production
date code. The first two large digits are the month
and the third digit is the last digit of the year.
(Example: 036 = March 1996.)
3. Press the increase ▲ ▲ key again to display the
software identification code. (Example: 02 =
software ID code 2.)
4. Press the increase ▲▲ key again to display the
software revision number. (Example: 001 = revision
number 1.)
M4932A
M10229
M4933A
ON
1
2
M10235
BACK OF THERMOSTAT
1
2
1
2
DIP 1 IS ON
DIP 2 IS NOT USED.
M10290
5. Press the increase ▲ ▲ key again to display the
EEPROM identification code. (Example: 314 =
EEPROM ID 314.)
6. Press the increase ▲ ▲ key again to display the
subbase identification code. (Example: HP = heat
pump subbase.)
7. Press Run Program to exit the system test mode.
The system test times out after four minutes without
any key presses.
Set Keypad Lockout Switch
The dip switch 1 on the back of the thermostat activates
the lockout features. The switch must be set to the ON
position (up) to activate the lockout feature. See Fig. 7.
The factory-setting is off (down). Remove the thermostat
from the subbase and set the switch to ON if keypad
lockout is desired. The level of lockout is determined by
the Installer Setup numbers 25 and 40.

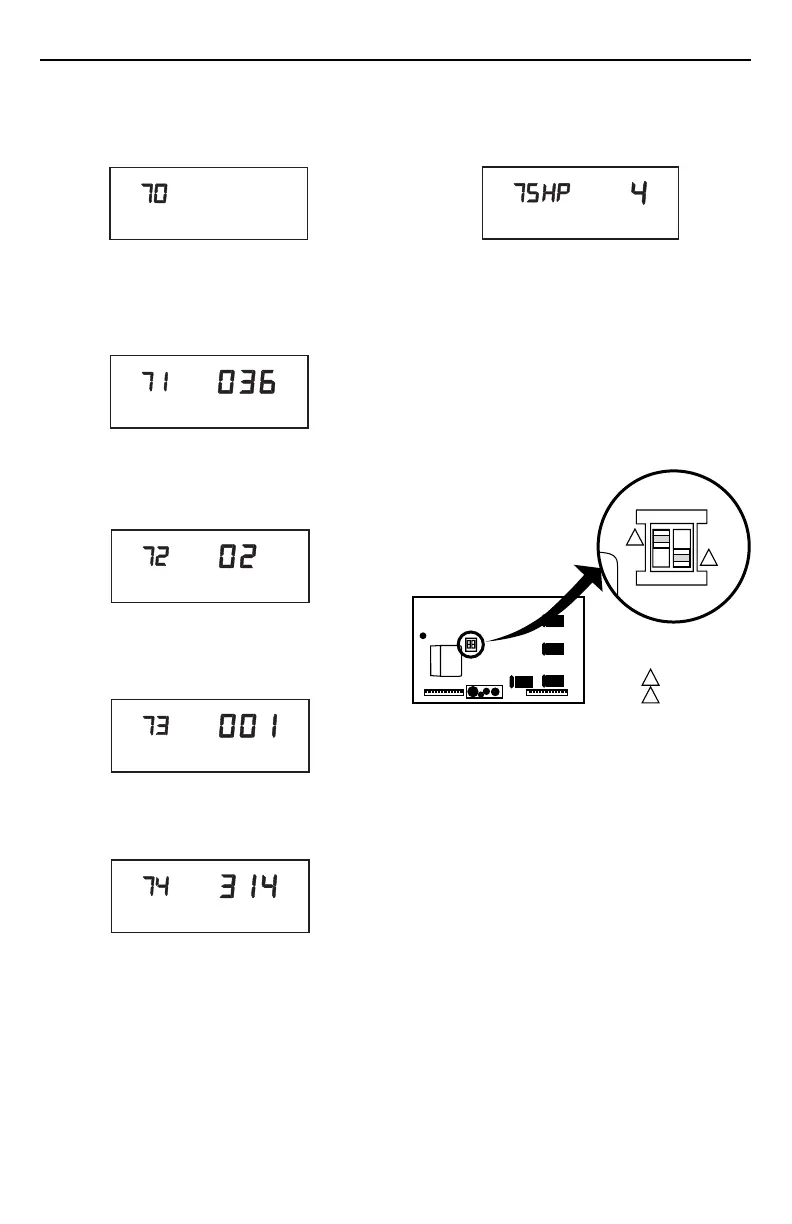

Fig. 7. Set keypad lockout dip
switch 1 on back of thermostat.
NOTE: If changing Installer setup number 25 or 40, set
dip switch 1 to ON prior to entering Installer
setup.
