Hot Water Reset – T775R
Application Description
The T775R is controlling the boiler water temperature with two
stages (relays), based on outside temperature using a reset
curve and an offset for relay 2.
Sensor Designation
This device application requires two sensors.
• Sensor A is sensing hot water discharge temperature of
the boiler.
• Sensor B is sensing outside air temperature
Operation
In this example, when the outside temperature reaches
70° F (21° C), the desired water temperature of the boiler is
160° F (71° C). Likewise, when the outside temperature drops
to 20° F (-7° C), the hot water temperature needs to be
210° F (99° C). See Fig. 10.

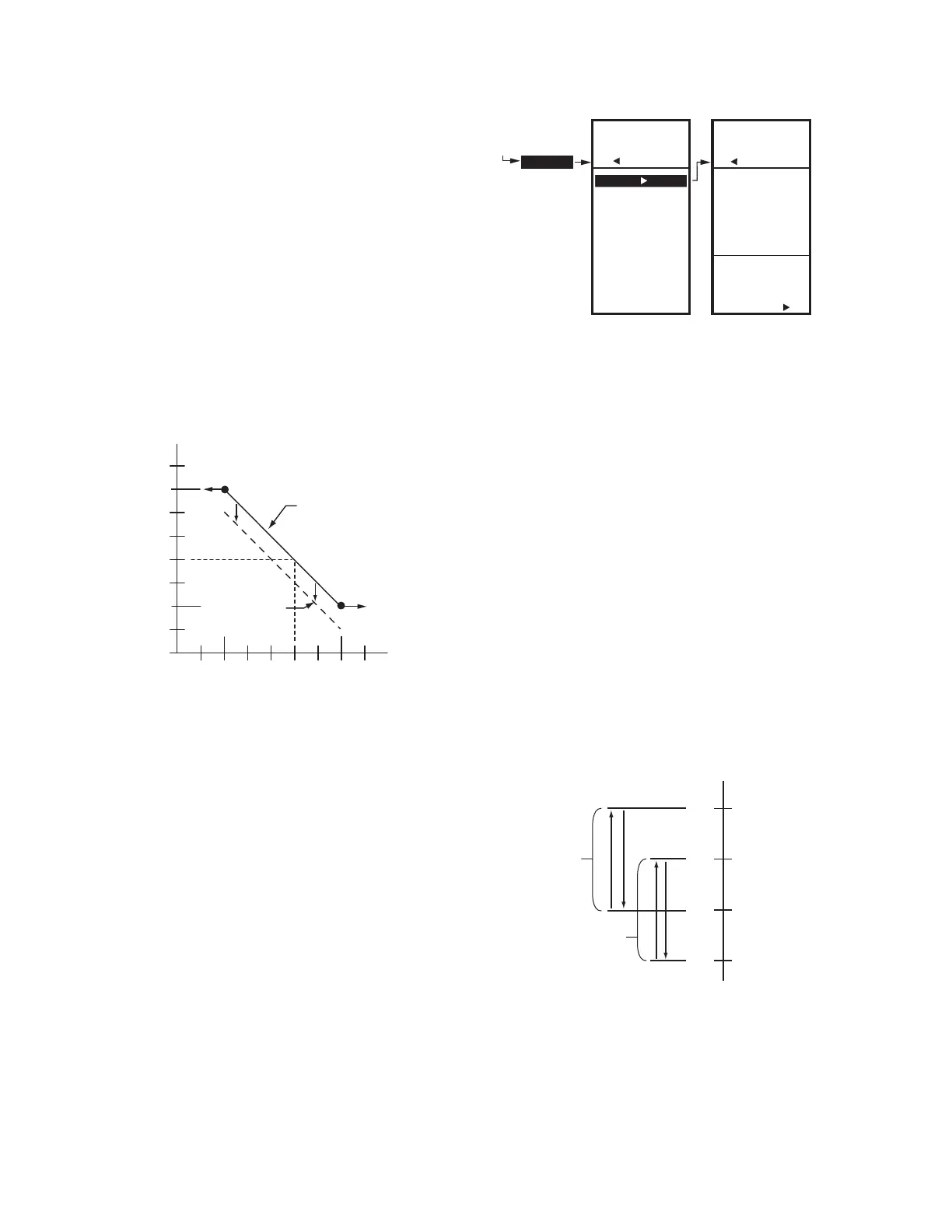

Fig. 10. Hot Water Reset Curve.
Programming Example
Program in Setup:
Press and hold the MENU button for 5 seconds to enter
Setup mode. Select the Outputs menu, and then select:
—MOD 1
→ Reset = YES-BOILER
—# Relays = 2
— Relay 1
→ Reset = YES-BOILER
— Relay 2
→ Reset = YES-BOILER
Relay 1: Control to the discharge water temperature
Program for: (Refer to the reset curve in Fig. 10.)
— Boiler Max = 210° F (99° C)
— Outside Min = 20° F (-7° C)
— Boiler Min = 160° F (71° C)
— Outside Max = 70° F (21° C)
— Differential = 20° F (-7° C)
—Sensor A
—Heat
Relay 2: Control to the discharge water temperature
Program for:
— Setpoint Offset = -10° F (-12° C) (See Fig. 11)
—Sensor A
—Heat
Fig. 11. Program Mode - Relay 2 Offset.
IMPORTANT
After the desired value is selected, be sure to press
the # or $ or HOME button in order to save that
value in the controller’s memory.
IMPORTANT
By programming the boiler setpoint at 210° F (99° C)
the T775 has established 210° F (99° C) as the
highest operating point that will be allowed when the
outside temperature falls below 20° F (-7° C). As the
outside temperature increases above 20° F (-7° C),
the boiler will be reset downward per the reset ratio
until it reaches the minimum setpoint, 160° F.
Assuming an outside temperature of 20° F (-7° C), Fig. 12
describes the actions of relays 1 and 2 to control the boiler
temperature. As the boiler temperature falls below 210° F
(99° C), relay 1 activates (relay 1 Differential is 20° F (-7° C),
so relay closes at 190° F (88° C). If relay 1 cannot raise the
boiler temperature and the boiler temperature continues to fall
to 180° F °, relay 2 activates (relay 2 Differential is 20° F
(-7° C) 180° to 200° F (82° to 93° C) When the boiler is able to
reach 200° F (93° C), then relay 2 deactivates and relay 1
remains active until the temperature reaches 210° F (99° C).
Fig. 12. Relay Actions.
NOTE: The Hot Water Reset application continues on the
next page.
