T775R Replacement for W964F Aquatrol
Panel with Floating Actuator
This replacement example illustrates how a T77R is
configured to replace a W964F Aquatrol Panel.
• Fig. 36 illustrates the wiring connections for the W964F
Aquatrol Panel.
• Fig. 37 and Table 4 on page 34 illustrate the wiring and
configuration of the T775R controller.

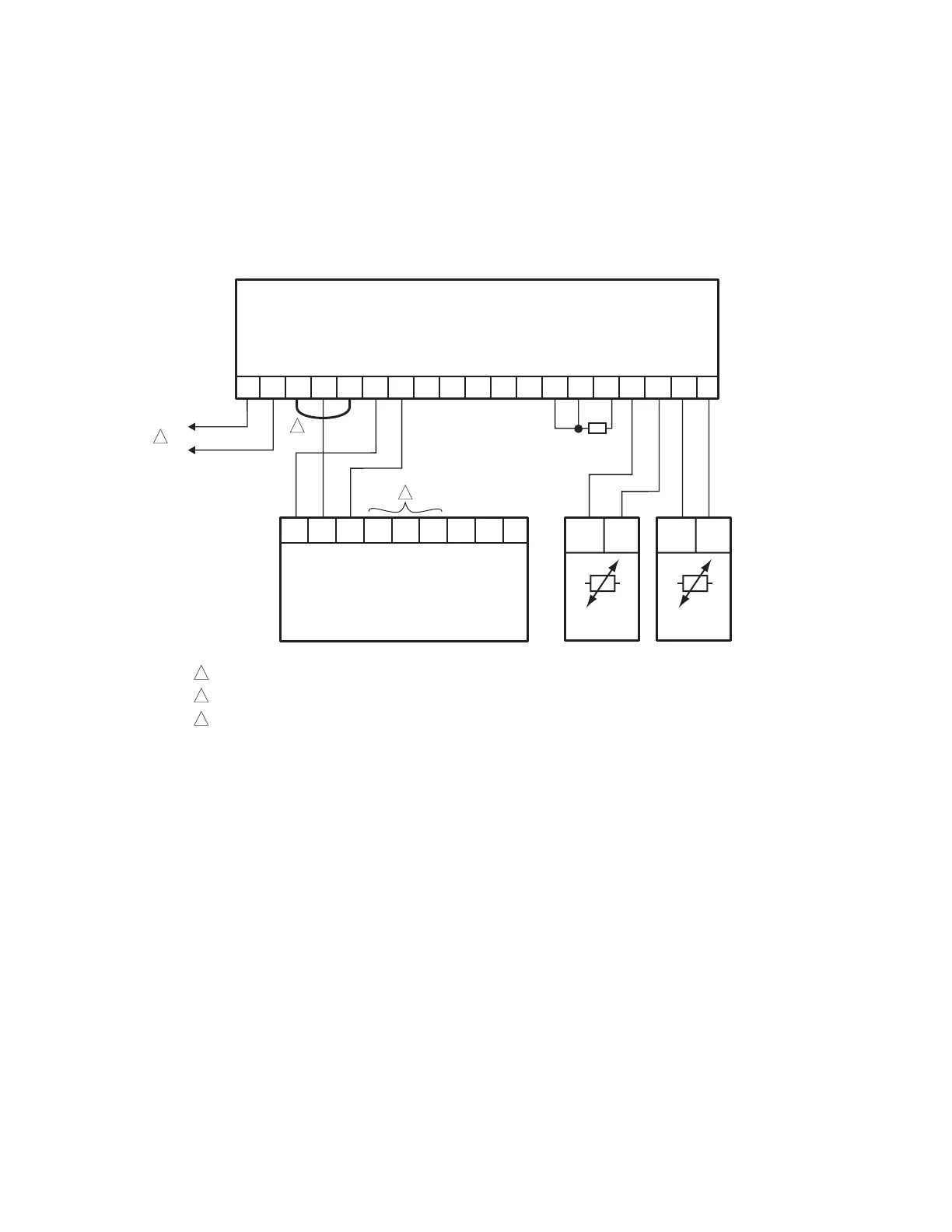

Fig. 36. W964F Wiring Connections (Pre-existing Control).
NOTE: The T775R Replacement for W964F Aquatrol Panel with Floating Actuator continues on the next page.
L 54A4123ABCDN T3T3T2T276
T7044A
T7043A
T7043B
T123Y BRWG
M944B
1
3
W964F
L
N
1
120 V, 60 HZ POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS REQUIRED.
JUMPER BETWEEN B AND D.
TERMINALS Y, T, AND G ARE NOT USED.
2
M28013
2
3
