14
Maintenance

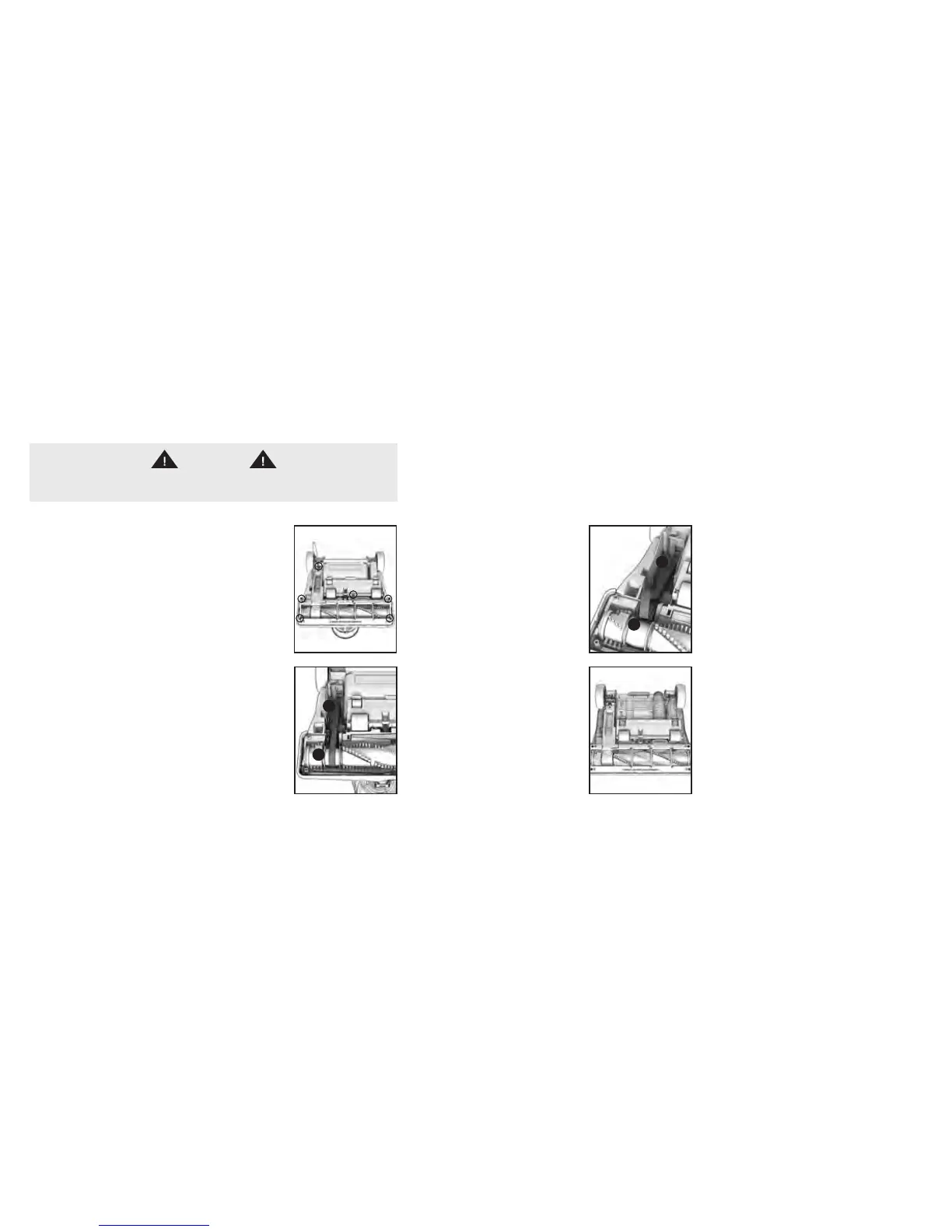

Belt Replacement
Remove the 6 screws as shown with
a Phillips screwdriver. Remove the
bottom plate.
Remove the used belt from the
brush roll (A) then from the motor
shaft (metal rod) (B) and discard.
2
Ensure that the letters printed
on the belt are facing you, slide
the new belt over the motor
shaft (metal rod) (C). Then
slip it around the area of the
brush roll where no bristles are
present (D).
3
With the belt in place, pull the belt and slide
the brush roll into the nozzle making sure
that the brush roll end caps are in the correct
orientation. Place the bottom plate aligning the
screw holes and re-install the 6 screws.
4
1
WHEN TO REPLACE
Replace the belt if it is damaged, cut or broken.
Refer to the directions below.
HOW TO REPLACE
Place the handle in the low position and turn
the cleaner over so the bottom side is up.
CAUTION
To reduce the risk of injury from moving parts, unplug before servicing.
A
B
C
D
