Important
On completion of the operation, replace the old rating
sticker with one indicating the new type of gas used.
This sticker is available from our Service Centres.
Note
Should the pressure of the gas used be different (or
vary) from the recommended pressure, it is necessary
to fit a suitable pressure regulator onto the inlet pipe in
compliance with current National Regulations relative
to “regulators for channelled gas”.

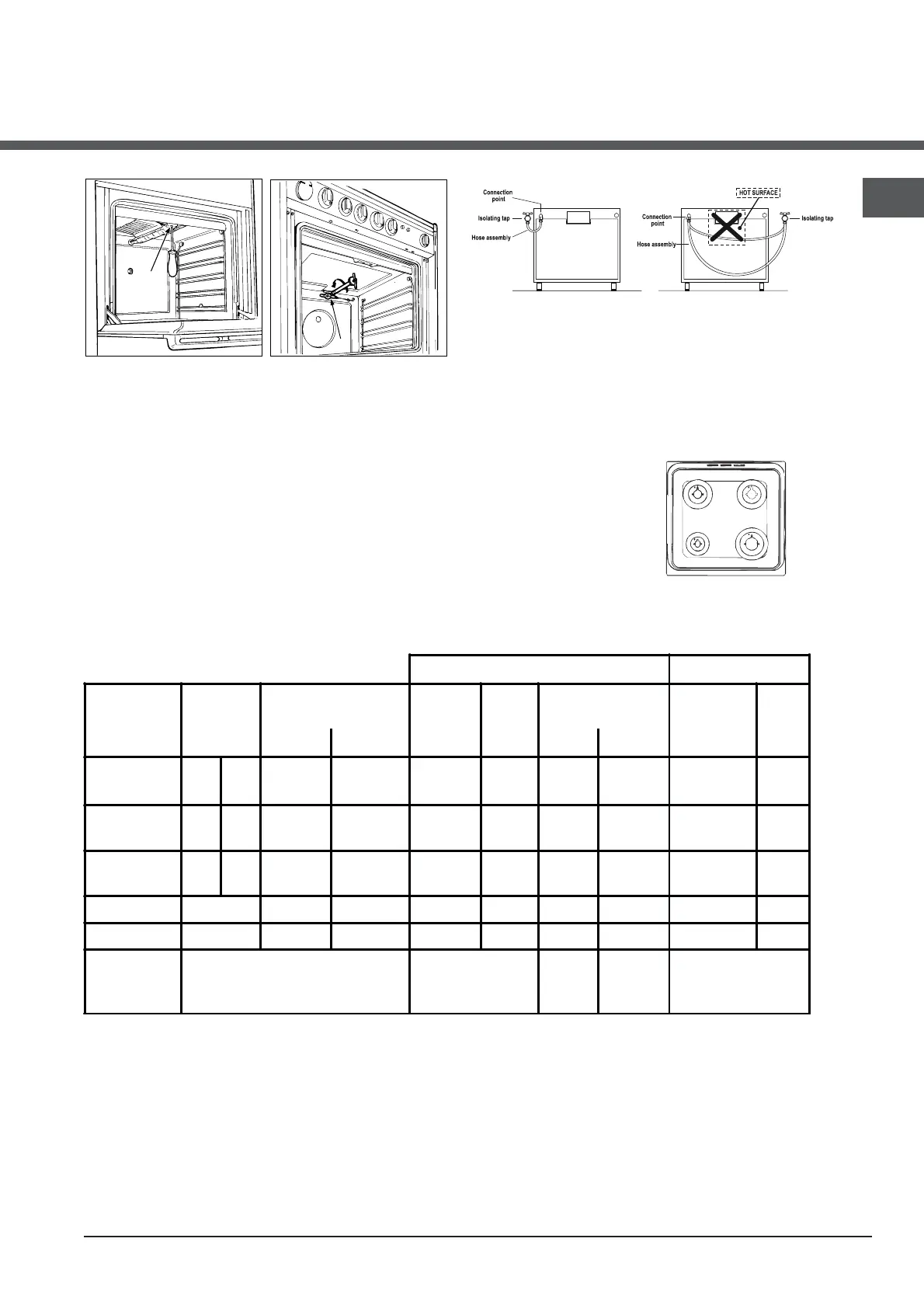

Burner and Nozzle
Specification
S
S
R
A
* At 15°C and 1013 mbar- dry gas
** Propane P.C.S. = 50,37 MJ/Kg
*** Butane P.C.S. = 49,47 MJ/Kg
Natural P.C.S. = 37,78 MJ/m
3
Table 1 Liquid Gas Natural Gas
Burner Diameter Thermal Power
kW (p.c.s.*)
By-Pass
1/100
Nozzle
1/100
Flow*
g/h
Nozzle
1/100
Flow*
l/h
(mm) Nominal Reduced (mm) (mm) *** ** (mm)
Fast
(Large)(R)
Semi Fast
(Medium)(S)
75 69 1,90 0,4 30 70 138 136 104 181
Auxiliary
(Small)(A)
51 46 1,00 0,4 30 52 73 71 76 95
Oven - 2,50 0,6 36 71 182 179 115 238
Grill - 2,50 1,3 63 80 182 179 122 238
Supply
Pressures
Nominal (mbar)
Minimum (mbar)
Maximum (mbar)
28-30
20
35
37
25
45
20
17
25
****
**** (only available on certain models)
100 94 3,00 0,7 41 87 218 214 128 286
EN
9
! This procedure must be performed by a qualified
technician who has been authorised by the
manufacturer.

Hotpoint HD5G00KCB/UK Specifications

General

Control type	Buttons, Rotary
Product type	Freestanding cooker
Product color	Black
Built-in display	No
Control position	Front
Hob type	Gas
Wok burner	Yes
Cooking zone 1 power	1900 W
Number of cooking zones	4 zone(s)
Number of electric cooking zones	0 zone(s)
Oven size	Medium
Cleaning type	Catalytic (full)
Number of ovens	2
Defrost function	-
Number of shelves	2 shelves
Oven net capacity	66 L
Oven 2 size	Small
Oven 2 position	Top
Oven 2 net capacity	32 L
Oven 2 power source	Electric
Oven 2 number of shelves	1 shelves
Energy consumption (conventional)	1.37 kWh

Weight and Dimensions

Depth	600 mm
Width	500 mm
Height	900 mm
