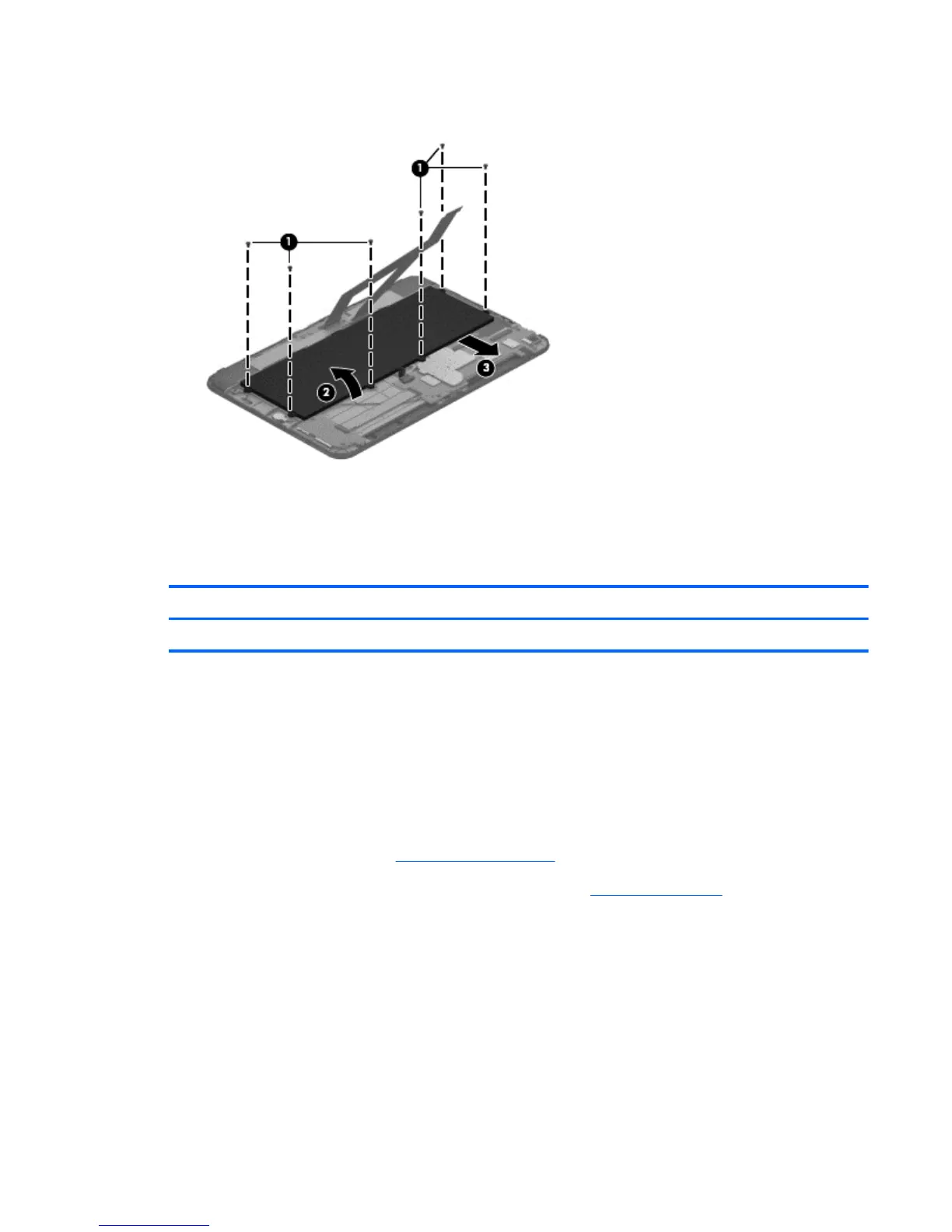

6. Remove the battery (3) by sliding it forward.
Reverse this procedure to install the battery.
Speakers
Description Spare part number
Speaker Kit (includes left and right speakers and cables) 739007-001
Before removing the speakers, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
3. Disconnect all external devices from the tablet.
4. Remove the back cover (see
Back cover on page 12).
5. Disconnect the speaker cable from the system board (see
Battery on page 14).
Remove the speakers:
1. Disconnect the speaker cable (1) from the system board.
2. Release the speaker cables (2) from the clips built into the display panel assembly.
Speakers
15
