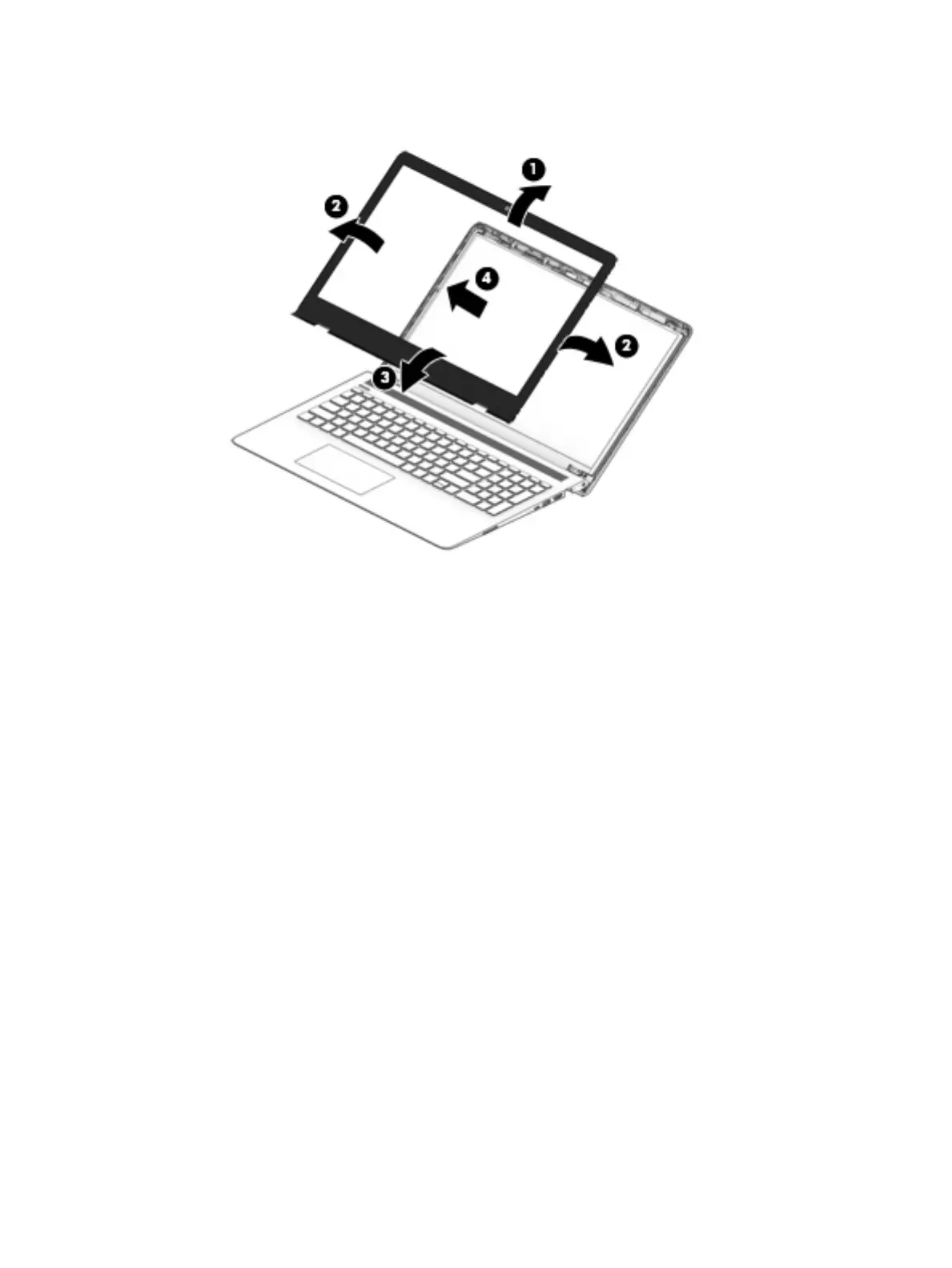

b. Remove the display bezel (4).
3. To remove the standard camera/microphone module:
Standard webcam
a. Position the display assembly with the top edge toward you.
b. Pry up to disengage the camera/microphone module from the adhesive that secures it to the
display (1).
c. Disconnect the cable (2) from the module.
30 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
