HP 15 Series User Manual

Solid-state drive bracket and connector board
Table 6-6 Solid-state drive bracket and connector board descriptions and part numbers
Description Spare part number
Solid-state drive bracket L20458-001
Solid-state drive connector board L22542-001
Solid-state drive cable L20456-001
Before removing the solid-state drive bracket and connector board, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 33).
2. Remove the optical drive (see Optical drive on page 34).
3. Remove the bottom cover (see Bottom cover on page 38).
4. Remove the battery (see Battery on page 41).
5. Remove the solid-state drive (see Solid-state drive on page 47).

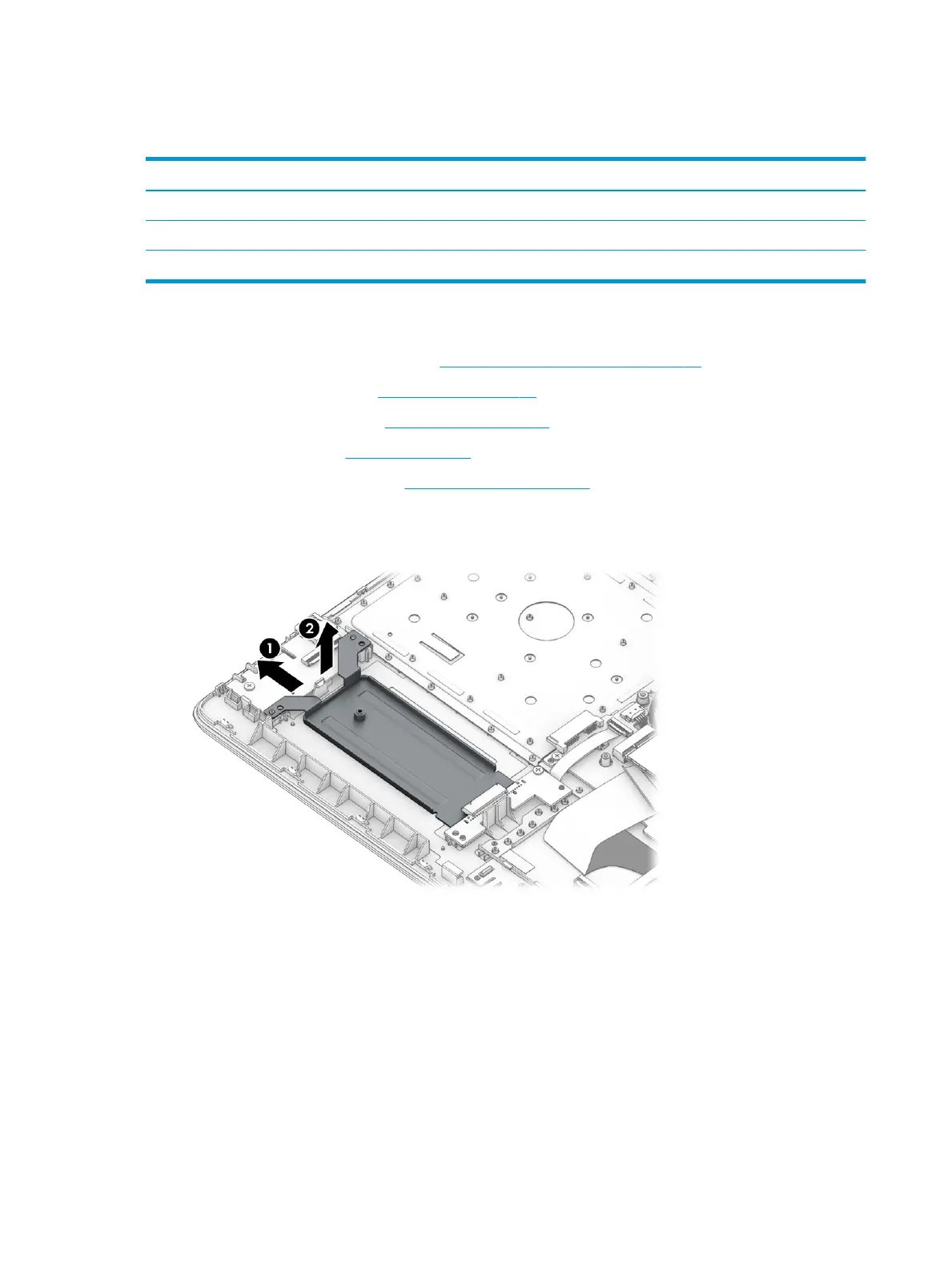

Remove the solid-state drive bracket and connector board:
1. Slide the bracket toward the side of the computer (1), and then lift the bracket out of the computer (2).
2. Disconnect the solid-state connector board cable from the system board ZIF connector (1).
3. Remove the Phillips M2.0 × 3.0 screw (2) that secures the board to the computer.
48 Chapter 6 Removal and replacement procedures for authorized service provider parts
