Before removing the speakers, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 27).
2. Remove the bottom cover (Bottom cover on page 27).
3. Remove the battery (see Battery on page 29).

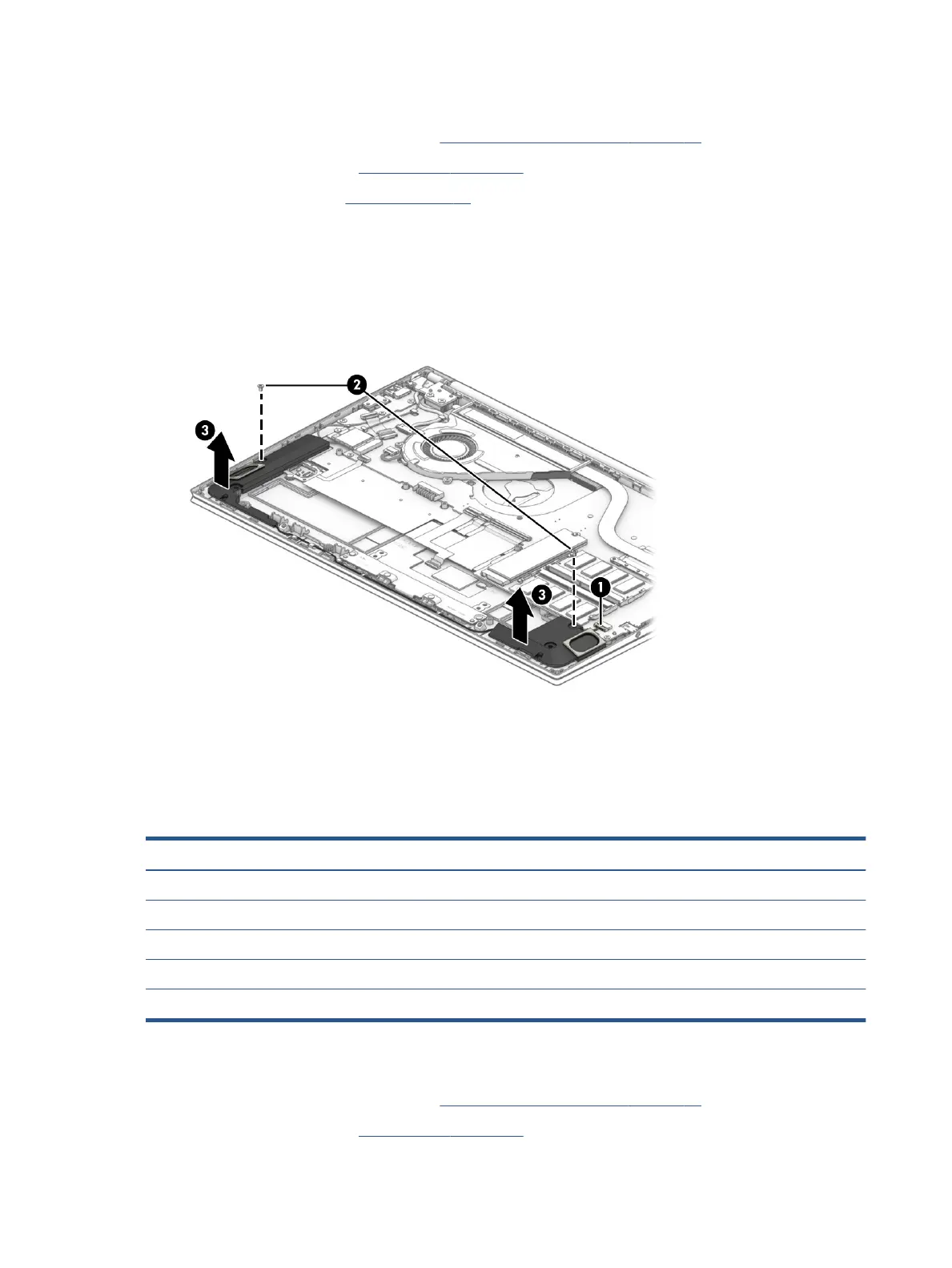

Remove the speakers:
1. Disconnect the speaker cable from the system board (1).
2. Remove the Phillips M2.0 × 3.0 screw from each speaker (2).
3. Remove the speakers from the computer (3) and release the cable from the retention clips along the
bottom of the computer.
Reverse this procedure to install the speakers.
Fingerprint reader
To remove the ngerprint reader, use this procedure and illustration.
Table
5-8 Fingerprint reader description and part number
Description Spare part number
Fingerprint reader, fog blue M08878-001
Fingerprint reader, forest teal M08879-001
Fingerprint reader, natural silver M08880-001
Fingerprint reader, warm gold M08881-001
Fingerprint reader cable M08883-001
Before removing the ngerprint reader, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 27).
2. Remove the bottom cover (Bottom cover on page 27).
36 Chapter 5 Removal and replacement procedures for authorized service provider parts
