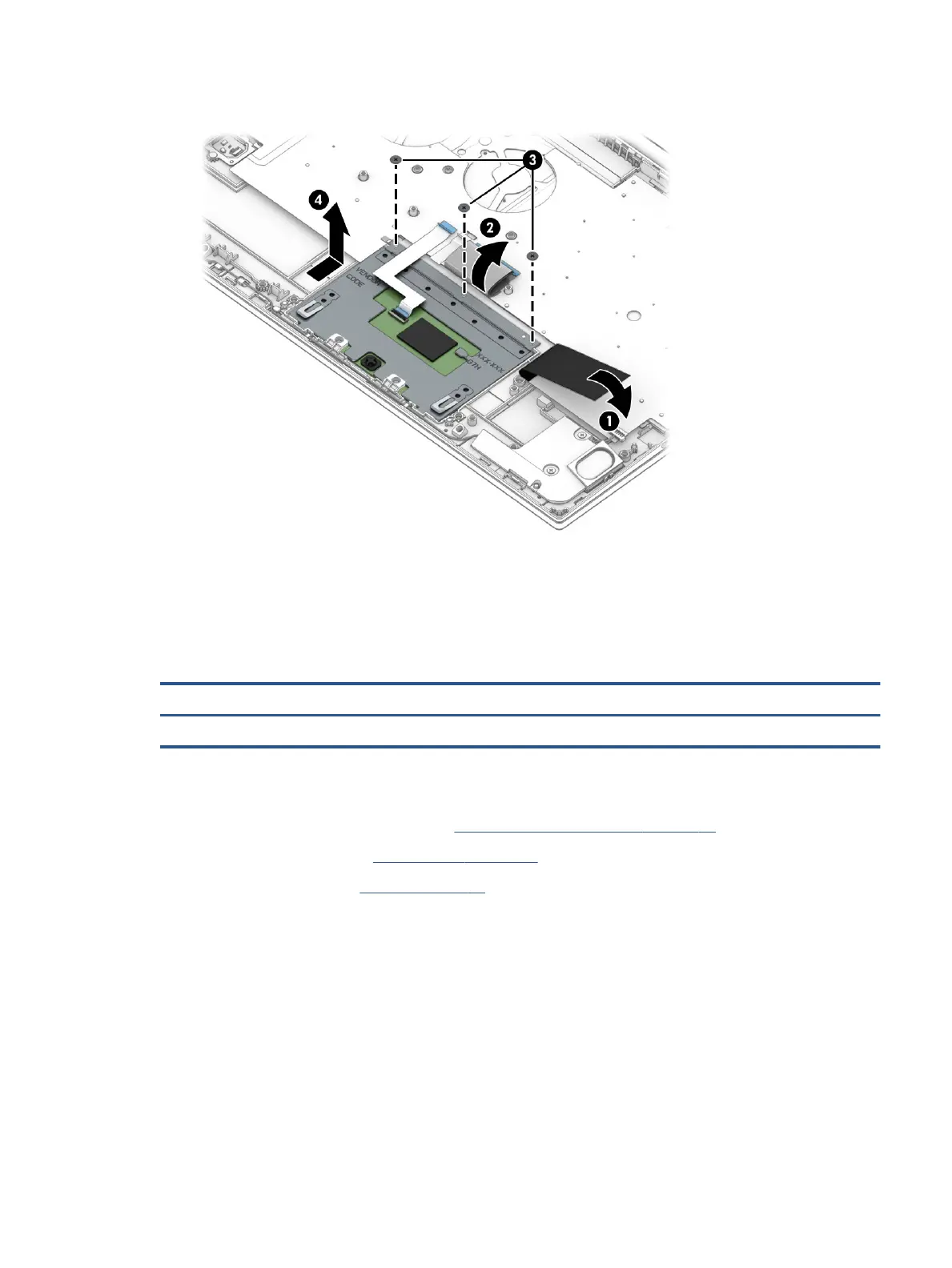

5. Lift the top of the touchpad up and into the computer, and then lift it up to remove it (4).
Reverse this procedure to install the touchpad.
Power connector cable
To remove the power connector cable, use this procedure and illustration.
Table
5-13 Power connector cable description and part number
Description Spare part number
Power connector cable M08887-001
Before removing the power connector cable, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 27).
2. Remove the bottom cover (Bottom cover on page 27).
3. Remove the battery (see Battery on page 29).
Remove the power connector cable:
1. Remove the two Phillips M2.0 × 6.5 screws (1) from the right hinge.
2. Rotate the hinge o the power connector (2).
3. Disconnect the power connector cable from the system board (3).
4. Release the cable from the retention clip (4).
Component replacement procedures 43
