Power connector cable (DC-in)
Description Spare part number
Power connector cable L22528-001
Before removing the power connector cable, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the optical drive (see Optical drive on page 32).
5. Remove the bottom cover (see Bottom cover on page 36).
6. Remove the battery (see Battery on page 38).
Remove the power connector cable:

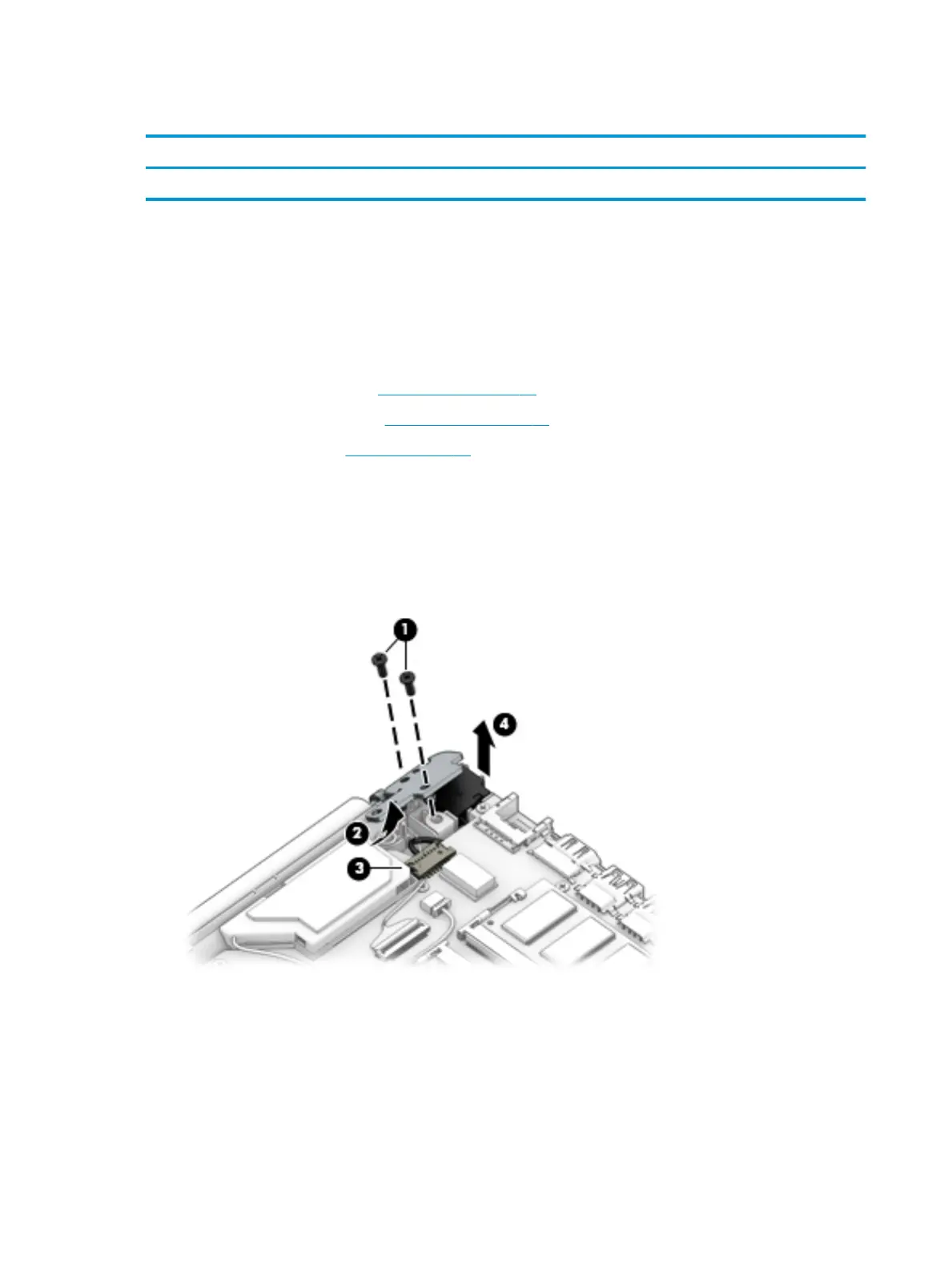

1. Remove the two Phillips M2.5×6.0 screws from the right display hinge (1), and then rotate the hinge up
from on top of the power connector (2).
2. Disconnect the power connector cable from the system board (3).
3. Remove the power connector cable from the computer (4).
Reverse this procedure to install the power connector cable.
54 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
