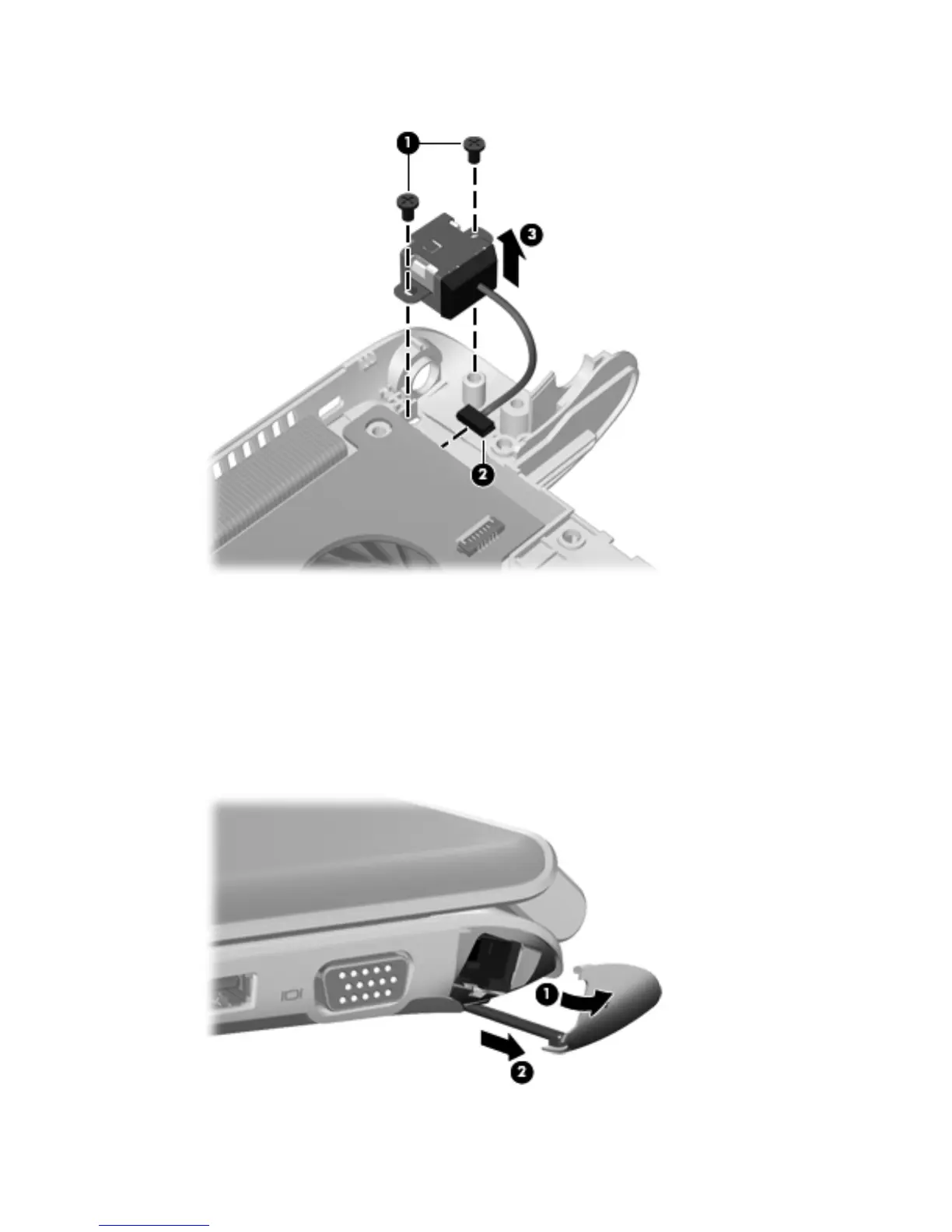

3. Lift up and remove the power connector (3).
Reverse this procedure to install the power connector.
RJ-45 connector cover
To remove the RJ-45 connector cover, follow these steps:
1. Slide the RJ-45 cover to the right (grasping the cover at the indentation on the left side) (1) in
order to release the cover.
2. Gently press the hinged bottom of the rubber tail (on the left side) to open the RJ-45 cover (2).
ENWW Component replacement procedures 61
