HP 4328A Service Manual

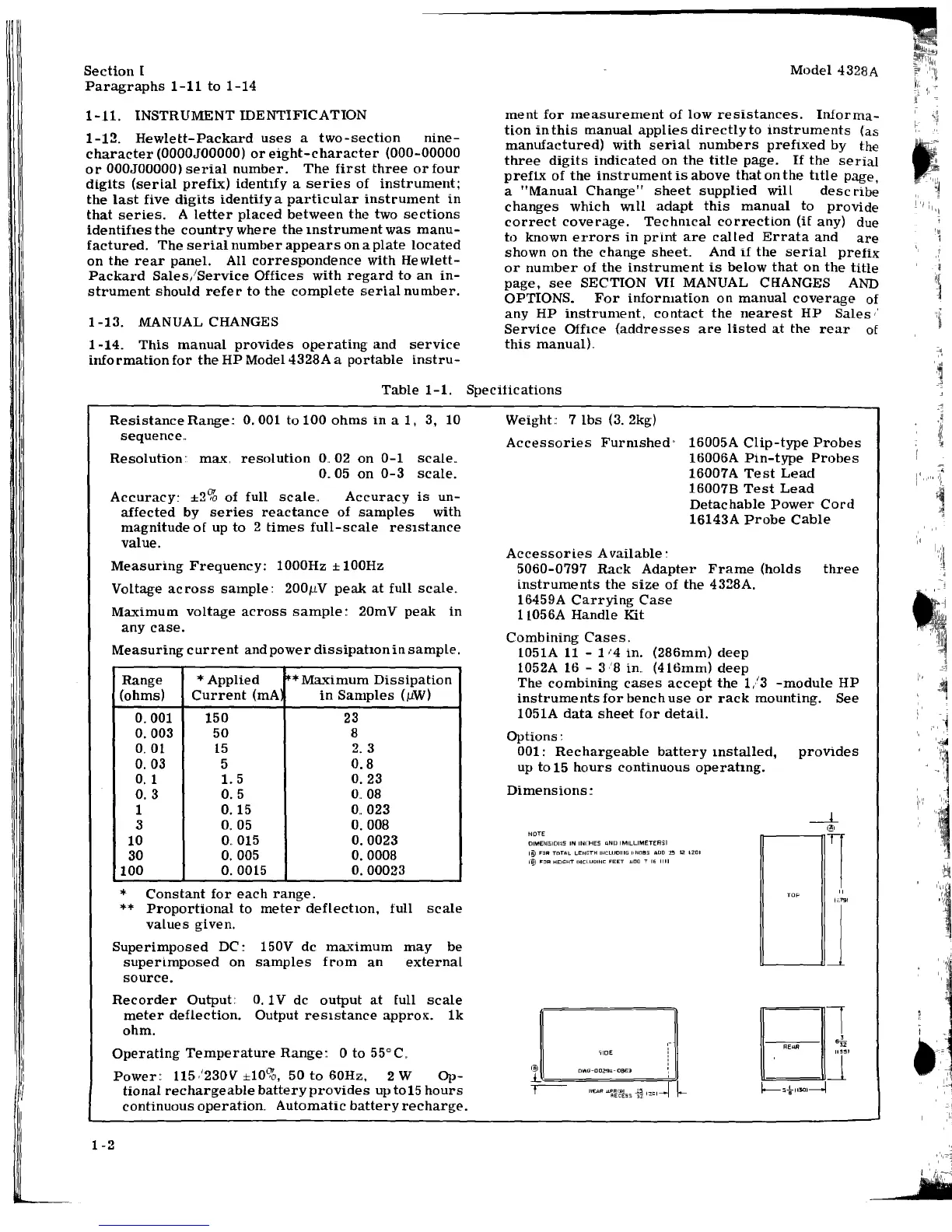

Section [
Paragraphs 1-11 to 1-14
1-11. INSTRUMENT IDENTIFICATION
1-12. Hewlett-Packard uses a two-section nine-
character (OOOOJOOOOO) or eight-character (000-00000
or OOOJOOOOO) serial number. The first three or four
digits (serial prefix) idenhfy a series of instrument;
the last five dig'its identify a particular instrument in
that series. A letter placed between the two sections
identifies the country where the mstrument was manu-
factured. The serial number appears on a plate located
on the rear panel. All correspondence with Hewlett-
Packard Sales/Service Offices with regard to an in-
strument should refer to the complete serial number.
1-13. MANUAL CHANGES
1-14. This manual provides operating and service
information for the HP Model4328A a portable instru-
Model 4328A
ment for measurement of low resistances. Informa-
tion in this manual applies directly to instruments (as
manufactured) with serial numbers prefixed by the
three digits indicated on the title page. If the serial
prefix of the instrument is above that on the htle page,
a "Manual Change" sheet supplied will describe
changes which Will adapt this manual to provide
correct coverage. Techmcal correction (if any) due
to known errors in print are called Errata and are
shown on the change sheet.. And if the serial prefix
or number of the instrument is below that on the title
page, see SECTION VU MANUAL CHANGES AND
OPTIONS. For information on manual coverage of
any HP instrument, contact the nearest HP Sales i
Service Office (addresses are listed at the rear of
this manual)
Table 1-1. Specifications
Resistance Range: 0. 001 to 100 ohms in a 1, 3, 10
sequence.
Resolution rna...:, resolution 0 .. 02 on 0-1 scale.
0. 05 on 0-3 scale.
Accuracy: ±2% of full scale.. Accuracy is un-
affected by series reactance of samples with
magnitude of up to 2 times full-scale resistance
value.
Measuring Frequency: 1000Hz ±100Hz
Voltage across sample:: 200J.N peak at full scale.
Maximum voltage across sample: 20mV peak in
any case.
Measuring current and power dissipation in sample.
Range
*Applied ~* Ma..ximum Dissipation
(ohms) Current (rnA in Samples (J..lW)
0 .. 001 150 23
0.003
50
8
0.01 15 2. 3
0.03 5 0.8
0. 1
1.5 0.23
0. 3
0.5
0 .. 08
1
0.15 0 .. 023
3 0.05
0.008
10
0 .. 015
0.0023
30 0.005
0.0008
100
0.0015 0.00023
* Constant for each range.
** Proportional to meter deflection, full scale
values given.
Superimposed DC: 150V de ma..ximum may be
superimposed on samples from an external
source.
Recorder Output 0. 1 V de output at full scale
meter deflection. Output resistance approx:. 1k
ohm.
Operating Temperature Range: 0 to 55°C,
Power:: 115 i230V ±10%, 50 to 60Hz, 2 W Op-
1-2
tional rechargeable battery provides up to 15 hours
continuous operation.. Automatic battery recharge.
Weight 7 lbs (3. 2kg)
Accessories Furmshed · 16005A Clip-type Probes
16006A Pin-type Probes
16007A Test Lead
160078 Test Lead
Detachable Power Cord
16143A Probe Cable
Accessories Available·
5060-0797 Rack Adapter Frame (holds three
instruments the size of the 4 3::!8A.
16459A Carrying Case
1 L056A Handle Kit
Combining Cases.
l051A 11 - 1"4 in. (286mm) deep
1052A 16 - 3 8 in .. (416mm) deep
The combining cases accept the 1/3 -module HP
instruments for bench use or rack mounting. See
1051A data sheet for detail.
Options:
001: Rechargeable battery mstalled, provides
up to 15 hours continuous operatmg.
Dimensions:
hiOTE
OIMEI\I:SIOI~IS IN 11~1 HE5 ANIJ IMILLIMETEA:il
liD FOR TOTIIL LENGTH II·ICLUOIIIG 11NOB:i ADO J!5 !l2 1201
f@ FOR HEIG:HT lhiCI UOihiC FEET .1100 T lti II II
'fiDE
_l_
n-------n®
1
"
• •. 1'91
ll-----IJJ
.b
B
l
l'
l-----s-li-••301---1
•
-
'
~
- ~
~.
·~
-+·:,1
'~.
i
;)•': '•<~,':·:·
,'1,'/,'','
,,
,,
-'
.,
, ..
,---='!
