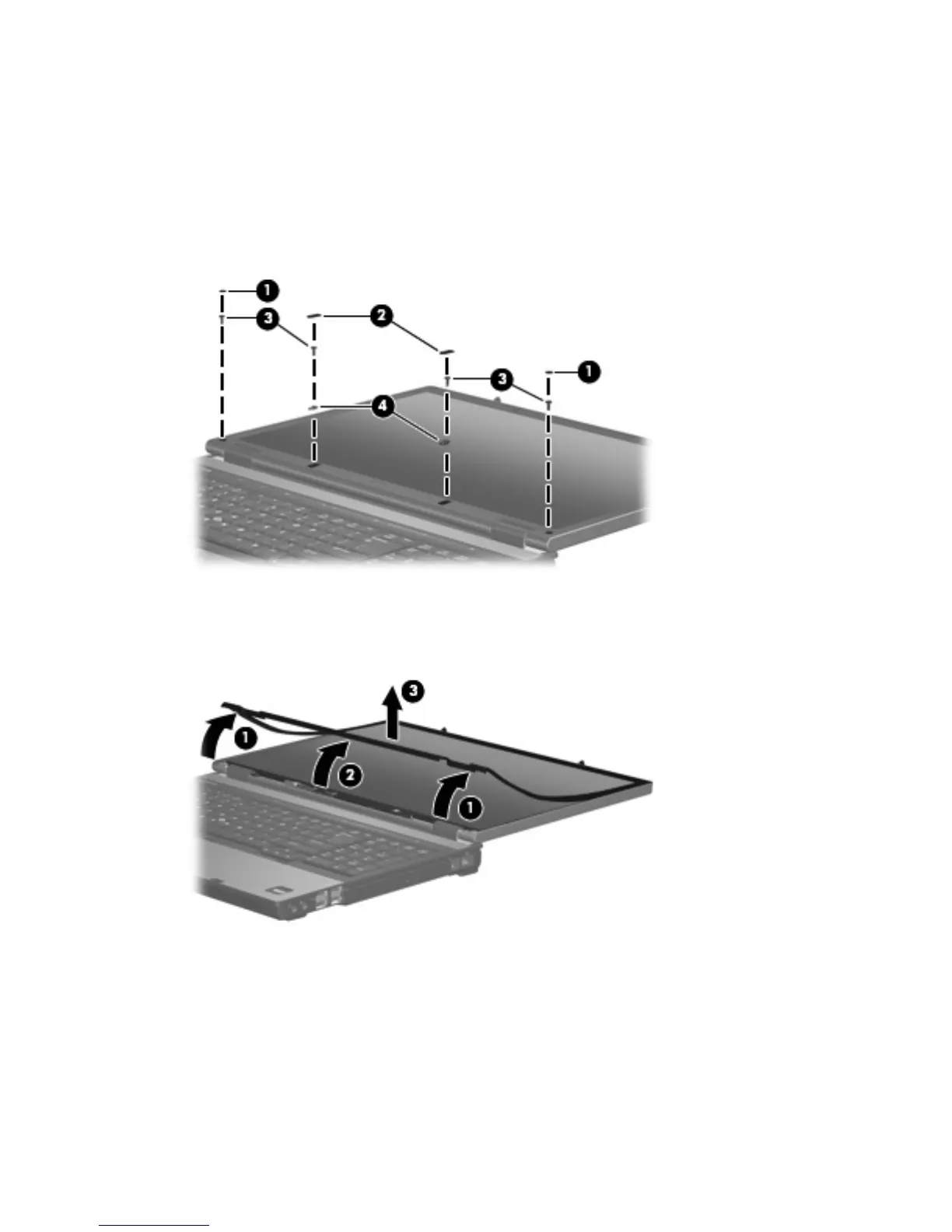

3. Remove the screw covers, screws, and stabilizer clips listed below. All rubber screw covers are
included in the Display Rubber Kit, spare part number 450573-001.
(1) Two flat rubber screw covers
(2) Two small oblong rubber screw covers
(3) Four Phillips PM2.0×6.0 screws
(4) Two stabilizer clips
4. Flex the inside edges of the left and right sides (1) and the display bezel bottom edge (2) until the
bezel disengages from the display assembly.
5. Release the display bezel bottom edge (3) from the display assembly.
6. Remove the Torx T8M2.5×4.0 screw (1) that secures the ambient light sensor board to the display
enclosure.
7. Release the ambient light sensor board (2) from the display enclosure as far as the ambient light
sensor board cable allows.
46 Chapter 4 Removal and replacement procedures
