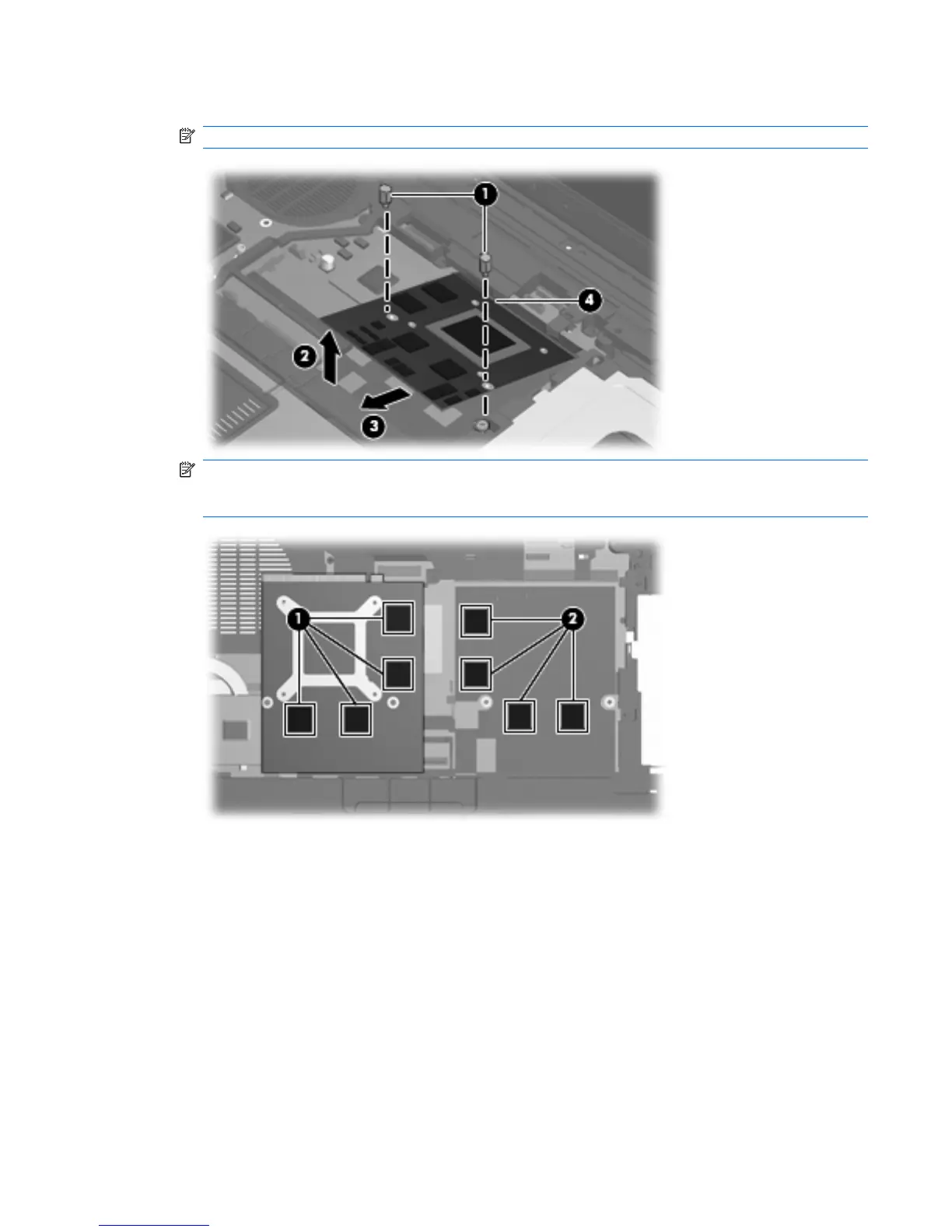

3. Remove the graphics card (3) by sliding it away from the graphics card slot at an angle.
NOTE: The graphics card is designed with a notch (4) to prevent incorrect installation.
NOTE: The thermal material must be thoroughly cleaned from the surfaces of the graphics
card (1) and fan/heat sink assembly(2) each time the fan/heat sink assembly is removed. Thermal
material is included with all fan/heat sink assembly and graphics card spare part kits.
Reverse this procedure to install the graphics card.
Component replacement procedures 73
