4. Remove the battery (see Battery on page 44).
5. Remove the following components:
a. Keyboard (see
Keyboard on page 60)
b. Switch cover (see
Switch cover on page 67)
c. Fan/heat sink assembly (see
Fan/heat sink assembly on page 70)
d. Processor heat sink (see
Heat sink on page 74)

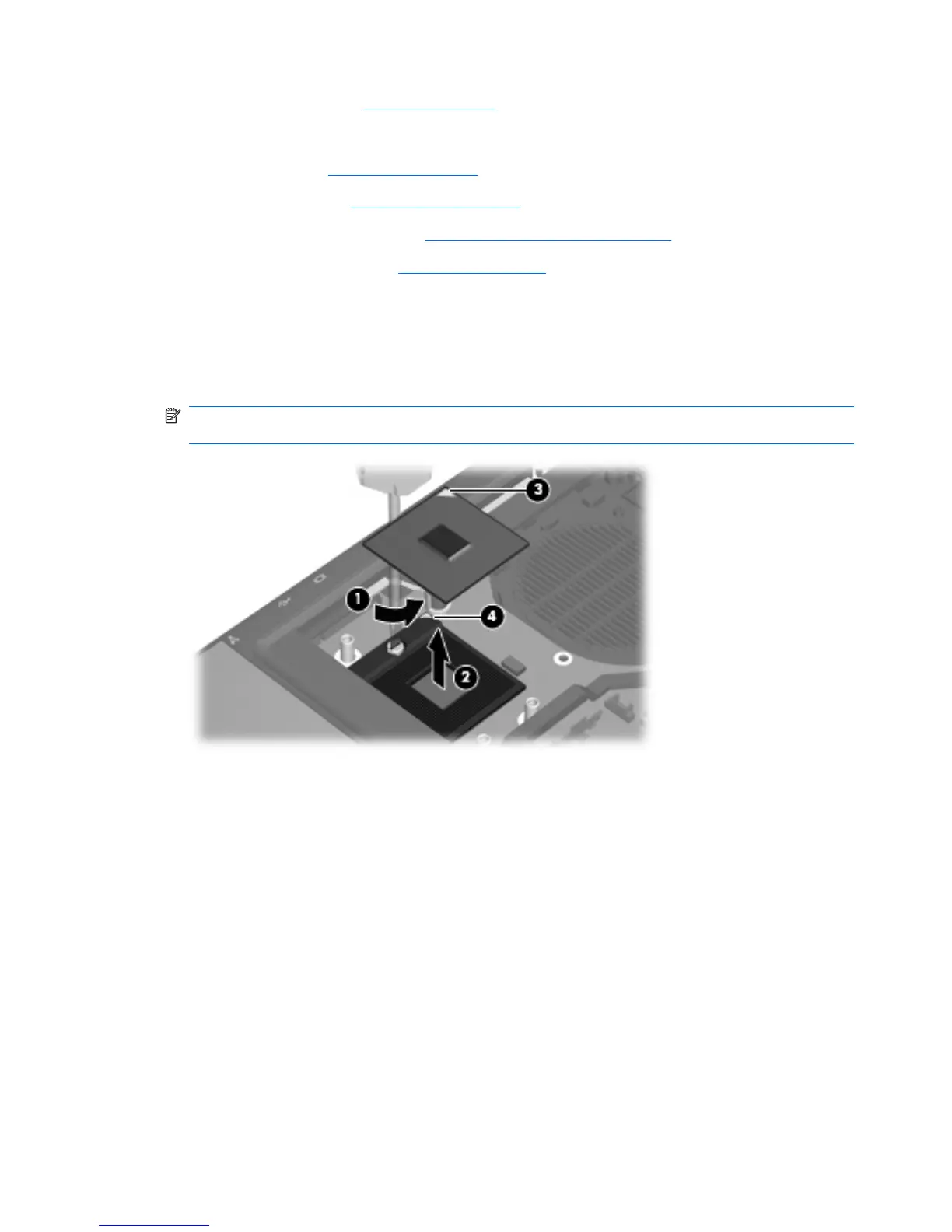

Remove the processor:
1. Use a flat-bladed screwdriver to turn the processor locking screw (1) one-half turn counterclockwise
until you hear a click.
2. Lift the processor (2) straight up and remove it.
NOTE: The gold triangle (3) on the processor must be aligned with the triangle (4) embossed on
the processor socket when you install the processor.
Reverse this procedure to install the processor.
76 Chapter 4 Removal and replacement procedures
