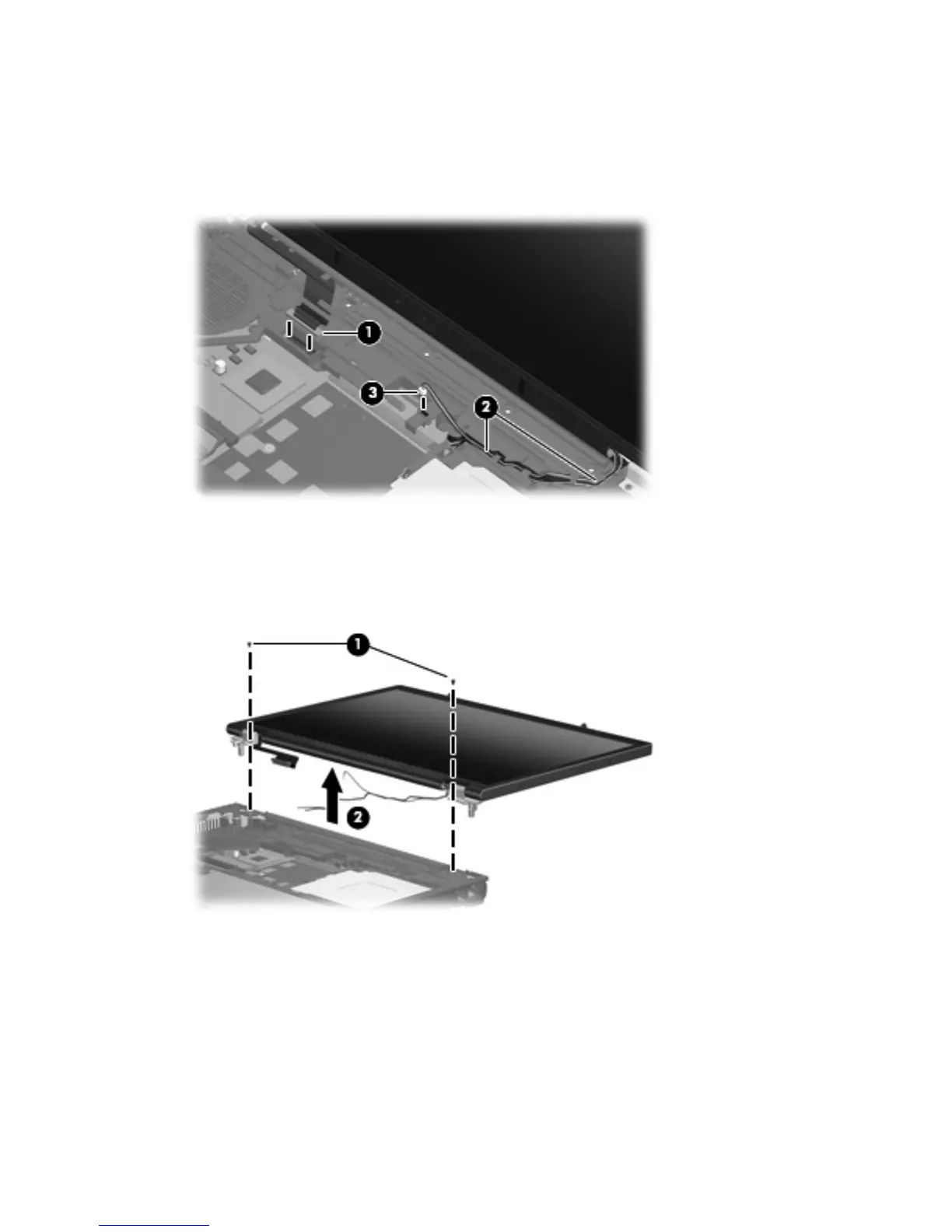

5. Disconnect the display panel cable (1) from the system board.
6. Remove the wireless antenna cables, the microphone cable, and the microphone extension cable
from the clips (2) and routing channels built into the top cover.
7. Disconnect the microphone cable (3) from the microphone extension cable.
8. Open the computer as far as possible.
9. Remove the two Torx T8M2.5×4.0 screws (1) that secure the display assembly to the computer.
10. Lift the display assembly (2) straight up and remove it.
78 Chapter 4 Removal and replacement procedures
