HP 8710p - Compaq Business Notebook User Manual

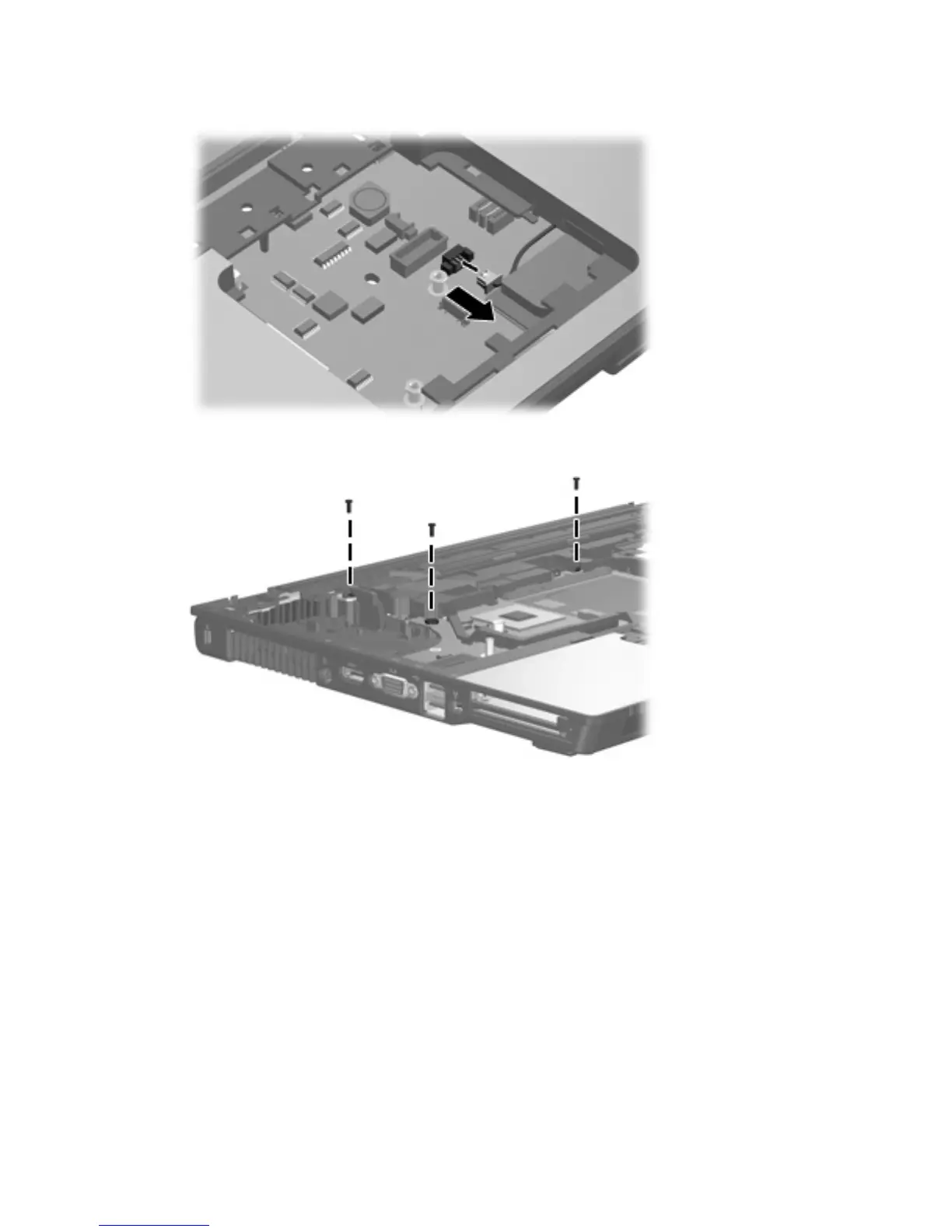

4. Disconnect the fingerprint reader board cable from the system board.
5. Remove the three Torx T8M2.5×7.0 screws that secure the top cover to the computer.
6. Lift the rear edge of the top cover (1) until it rests at an angle.
7. Swing the rear edge of the top cover (2) up and forward until it disengages from the base enclosure.
84 Chapter 4 Removal and replacement procedures

HP 8710p - Compaq Business Notebook Specifications

General

Brand	HP
Model	8710p - Compaq Business Notebook
Category	Laptop
Language	English
