Connect Ethernet, Ground, and Power Cables
After installing the I/O cable(s), plug the server manageme
nt Ethernet cable
into the server management HUB. Then
install the po
wer cables to the PDU.

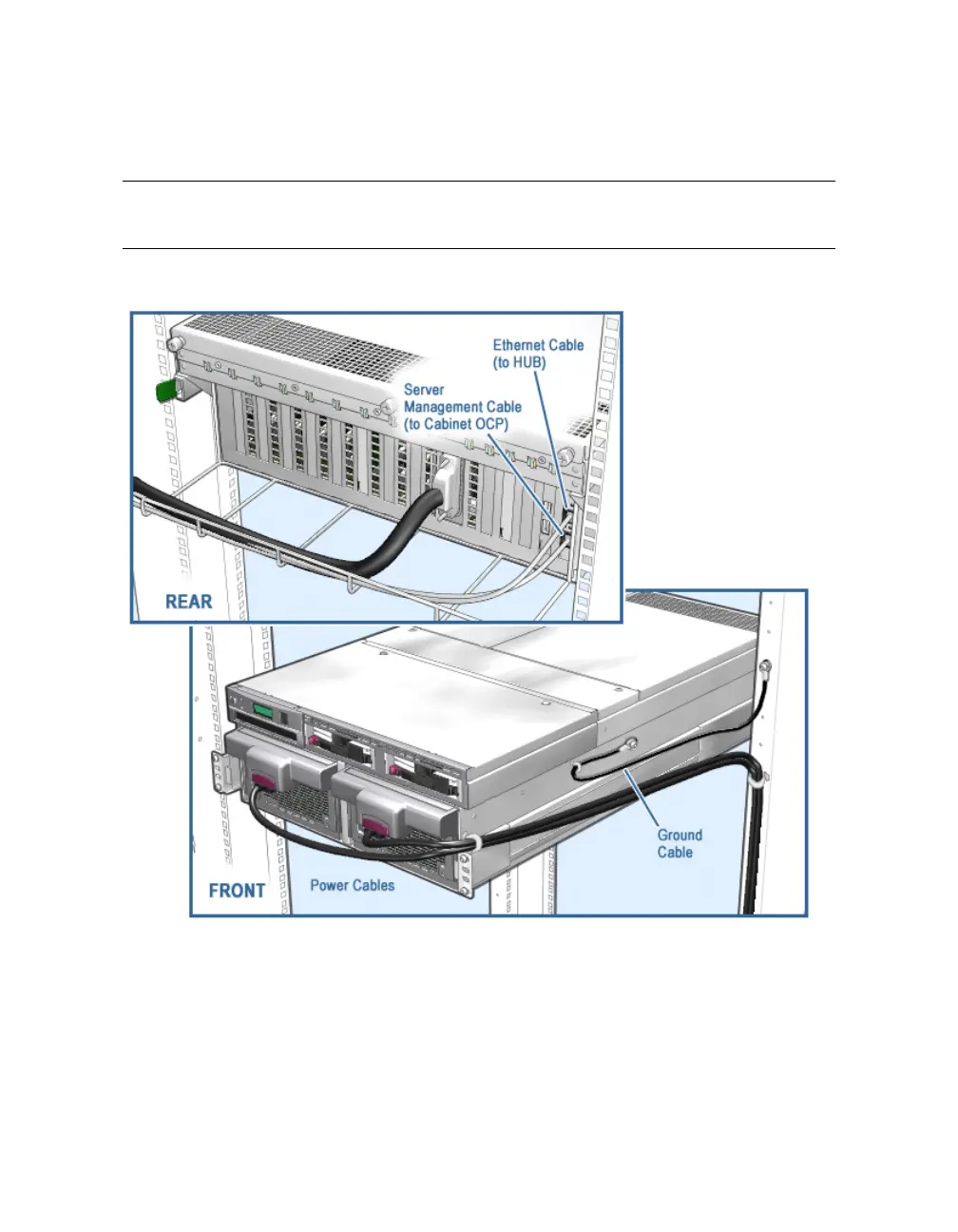

Figure 3–16 Ethernet, Ground, and Power Cables
3-26
hp AlphaServer ES47/
ES80/GS128
0 I/O Drawer Upgrade
49
51
Table of Contents
Default Chapter
5
Table of Contents
5
Document Structure
9
Intended Audience
9
Preface
9
Information on the Internet
10
Table 1 Hp Alphaserver ES47/ES80/GS1280 Documentation
10
Chapter 1 Overview
11
System Components
12
Figure 1-1 Example Hp Alphaserver System (ES80 Model 8)
12
Table 1-1 I/O Drawers Supported by Model
13
Upgrade Kit
14
Table 1-2 I/O Upgrade Kit Contents
14
Upgrade Steps
15
Table 1-3 I/O Drawer Upgrade Steps
15
Chapter 2 Prepare the System
17
Verify I/O Drawer Location
18
Check Upgrade Components
19
Table 2-1 Items Needed for I/O Upgrade
19
Check I/O Cable Length
20
Table 2-2 I/O Cable Lengths and Part Numbers
20
Shut down System Power
21
Figure 2-1 Turn off Power
21
Table 2-3 OCP LED Table
21
Remove the Side Panel
23
Figure 2-2 Remove Side Panel (Example)
23
Chapter 3 Install and Cable the I/O Drawer
25
Install the Inner Slides
26
Figure 3-1 Installing the Inner Slides
26
Determine Hole Locations for Installation
28
Figure 3-2 Hole Locations for GS1280 Systems (Front View)
28
Figure 3-3 Hole Locations for ES47 and ES80 Systems
29
Loosely Attach Outer Slides
30
Figure 3-4 Installing the Outer Slides
30
Attach Cable Retainer and Grommet
32
Figure 3-5 Installing the Cable Retainer
32
Install the I/O Drawer
34
Figure 3-6 Installing the I/O Drawer
34
Install Cable Support Rack and Drawer Latches
36
Figure 3-7 Installing Cable Support Rack and Drawer Latches (Rear View)
36
Attach Cable Guides
38
Figure 3-8 Attaching Cable Guides (Rear View)
38
Attach Cable Support Bracket on Rear Door
40
Figure 3-9 Attaching Cable Support Bracket on Rear Door
40
Identify I/O Connector on CPU Drawer
42
Figure 3-10 CPU Drawer I/O Cable Connections for GS1280
42
3.10 Connect I/O Cable(S) to CPU Drawer
44
Figure 3-11 I/O Cable Connections to CPU Drawer for GS1280
44
Figure 3-12 I/O Cable Connections to CPU Drawer for ES47 or ES80
44
Route the I/O Cable(S)
46
Figure 3-13 I/O Cable Routing
46
3.12 Connect I/O Cable(S) to I/O Drawer
48
Figure 3-14 I/O Cable Draping (GS1280)
48
Figure 3-15 I/O Cable Draping (ES47 and ES80)
48
3.13 Connect Ethernet, Ground, and Power Cables
50
Figure 3-16 Ethernet, Ground, and Power Cables
50
Figure 3-17 PDU Connections
51
3.14 Replace the Side Panel
52
Figure 3-18 Replacing the Side Panel (Example)
52
3.15 Set the Drawer ID
54
Figure 3-19 Setting Drawer ID
54
Figure 3-20 ID Numbers (Example for ES80 System)
55
Table 3-1 Drawer Ids (Example for ES80 System)
55
3.16 Restore Power
56
Figure 3-21 Restore Power
56
Table 3-2 OCP LED Table
56
Chapter 4 Configure and Troubleshoot
57
Notify Server Management of New Members
58
Example 4-1 Power-Up Display
58
Run Show Cable and Verify Configuration
60
Example 4-2 Run Show Cable
60
Connect to Partition
62
Example 4-3 Run Connect
62
Troubleshooting During Console Power-Up
63
Troubleshooting Power During Power-Up
64
Table 4-1 Troubleshoot Vaux
64
Table 4-2 Troubleshoot Internal LAN
64
Table 4-3 Troubleshoot with the I/O Drawer OCP
65
Table 4-4 Troubleshoot 48V Issues
65
Chapter 5 Verify with Q-Vet
67
Run Q-Vet
68
Swap or Pagefile Space
69
Installing Q-VET
70
Tru64 UNIX
70
Openvms
71
Running Q-VET
72
Openvms
72
Reviewing Q-VET Results
74
De-Installing Q-Vet
75
Tru64 UNIX
75
Openvms
75
Q-Vet Resources
75
Other manuals for HP AlphaServer ES47
Cli Reference Manual
152 pages
Upgrade Manual
76 pages
Installation Card
2 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the HP AlphaServer ES47 and is the answer not in the manual?
Ask a question
