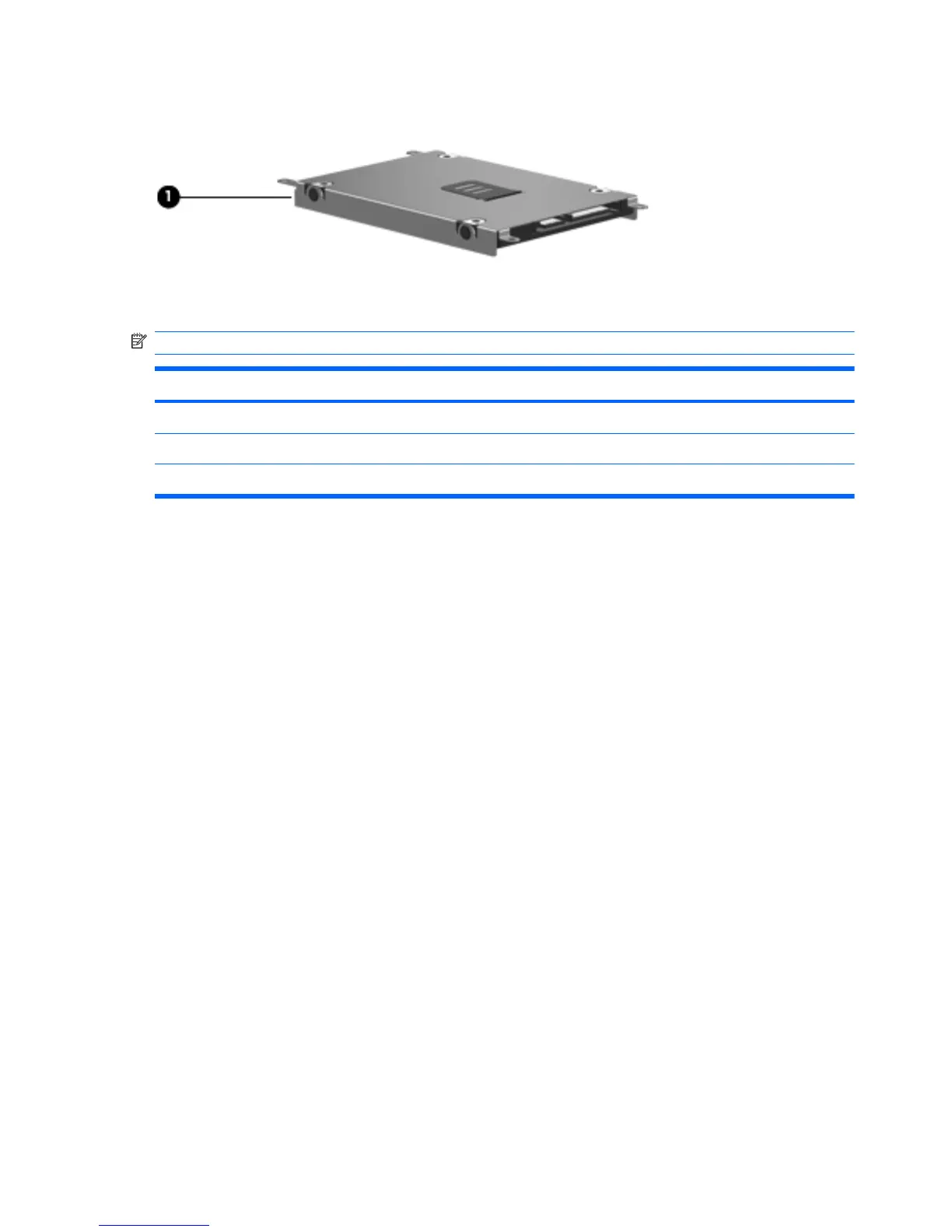

Mass storage devices
NOTE:
Each hard drive spare part k
it includes
a cable adapter, bra
cket, and 4 isolators.
Item
Description
Spare part number
(1)
Hard driv
e:
250-GB,
5400-RPM
608763–001
320–GB,
5400–RPM
608764–00
1
24
Chapter 3 I
llustrated
parts catal
og
33
35
Table of Contents
Default Chapter
7
Table of Contents
7
1 Product Description
11
2 External Component Identification
15
Identifying the Hardware
15
Top Components
16
Touchpad
16
Lights
17
Keys
18
Front Components
18
Right-Side Components
20
Left-Side Components
21
Display Components
22
Bottom Components
23
3 Illustrated Parts Catalog
24
Service Tag
24
Computer Major Components
25
Display Assembly Components
32
Mass Storage Devices
34
Miscellaneous Parts
35
Sequential Part Number Listing
36
4 Removal and Replacement Procedures
41
Preliminary Replacement Requirements
41
Tools Required
41
Service Considerations
41
Plastic Parts
41
Cables and Connectors
42
Drive Handling
42
Grounding Guidelines
43
Electrostatic Discharge Damage
43
Packaging and Transporting Guidelines
44
Workstation Guidelines
44
Equipment Guidelines
45
Component Replacement Procedures
46
Service Tag
46
Computer Feet
47
Battery
48
Sim
49
Service Cover
50
Hard Drive
51
WWAN Module
53
WLAN Module
56
Memory Module
61
RTC Battery
63
Keyboard
64
Top Cover
67
Speakers
70
Touchpad
72
Display Assembly
74
System Board
78
Fan/Heat Sink Assembly
81
Power Connector Cable
83
5 Setup Utility
85
Starting Setup Utility
85
Using Setup Utility
85
Changing the Language of Setup Utility
85
Navigating and Selecting in Setup Utility
86
Displaying System Information
86
Restoring Default Settings in Setup Utility
86
Exiting Setup Utility
87
Setup Utility Menus
87
Main Menu
87
Security Menu
87
System Configuration Menu
88
Diagnostics Menu
88
6 Backup and Recovery
89
Windows 7
89
Backing up and Recovering Using Roxio Backontrack
89
Creating a Copy of the Hard Drive
90
Performing a Recovery
90
Using the Disaster Recovery Utility
90
Downloading and Extracting the Disaster Recovery Utility
91
Restoring Your Hard Drive Image
91
Using the Instant Restore Utility
92
Using the Instant Restore Utility When the Operating System Is Functioning
92
Using the Instant Restore Utility When the Operating System Is Not Functioning
92
Using Windows Backup and Restore
92
Using System Restore Points
93
Creating a System Restore Point
93
Restoring to a Previous Date and Time
93
When to Create Restore Points
93
Backing up and Recovering Using HP Recovery Manager
94
Backing up Your Information
94
Creating a Set of Recovery Discs
95
Performing a Recovery
96
Recovering Using the Partition on the Hard Drive (Select Models Only)
96
Recovering Using the Recovery Discs
96
Windows XP
97
Backing up Your Information
97
Creating a Copy of the Hard Drive
98
Performing a Recovery
98
Downloading and Extracting the Disaster Recovery Utility
99
Restoring Your Hard Drive Image
99
Using the Disaster Recovery Utility
99
Using the Instant Restore Utility
100
Using the Instant Restore Utility When the Operating System Is Functioning
100
Using the Instant Restore Utility When the Operating System Is Not Functioning
100
7 Connector Pin Assignments
101
Audio-In (Microphone)
101
Audio-Out (Headphone)
101
External Monitor
102
Network)
103
Universal Serial Bus
103
8 Power Cord Set Requirements
104
Requirements for All Countries
104
Requirements for Specific Countries and Regions
105
9 Recycling
106
Battery
106
Display
106
Index
112
