Service cover
Description Spare part number
Service cover
In Black 607750-001
In White 607751-001
In Red 622660–001
In Blue 622661–001
Before removing the service cover, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet
and then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 38).

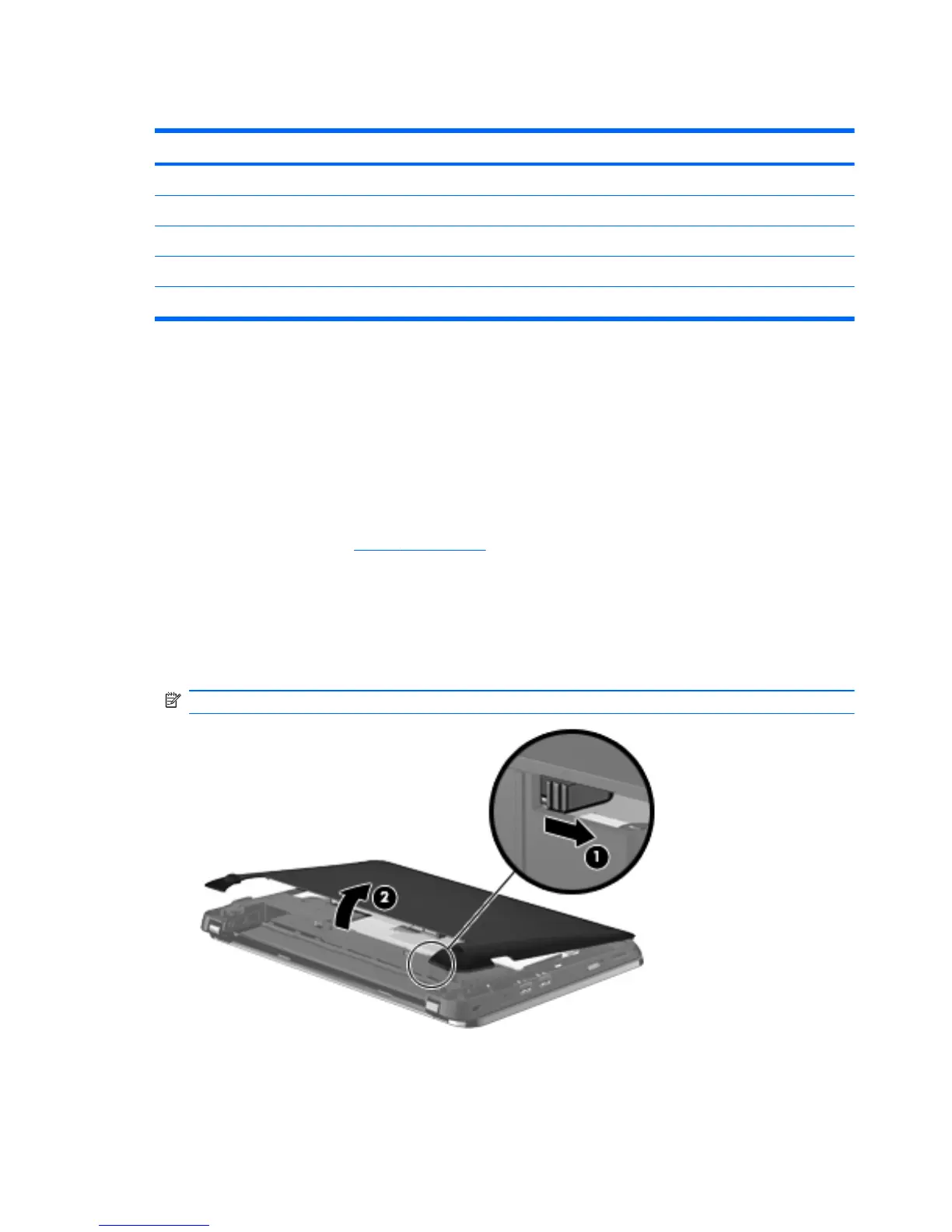

Remove the service cover:
1.
Press in and slide latch (1) and release the right side of the service cover until the service cover
tabs disconnect from the computer.
2. Lift up and remove the cover(2).
NOTE: Small tabs hold the cover in place. Firmly pull up on the cover to release the tabs.
Reverse this procedure to insert the service cover.
40 Chapter 4 Removal and replacement procedures
