3–6 Reference Guide
Installation
Using the JBL Speaker Security Lock
The JBL speakers can be locked to the sides of the monitor. To
use the Speaker Security Lock:
1. Grasp the front cloth-covered grill firmly at the sides and
remove from the speaker, then locate the security lock screw,
which can be found in the top inner corner of the speaker.
2. Attach the speaker to the side of the monitor as described in
the “Attaching the JBL Speakers to the Monitor.”
3. Using a Phillips screwdriver, loosen the security lock screw,
but do not remove it.

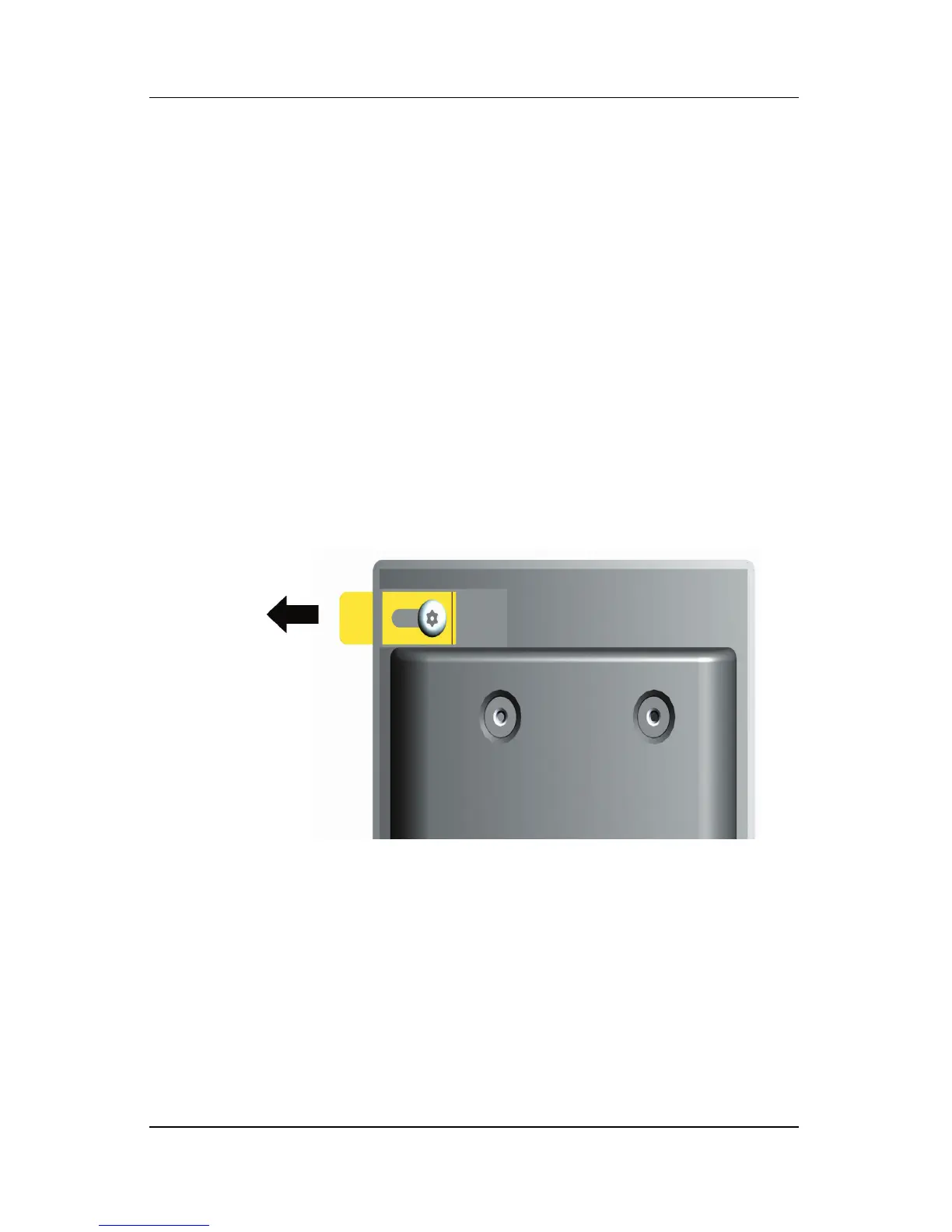

4. Slide the security lock out from the speaker until it engages
the slot in the side of the monitor.
5. Once the lock is in place in the side of the monitor, tighten
the security lock screw to secure the speaker to the monitor.
6. Reattach the grill to the speaker.
7. Repeat this process for the other speaker.
