Product Features

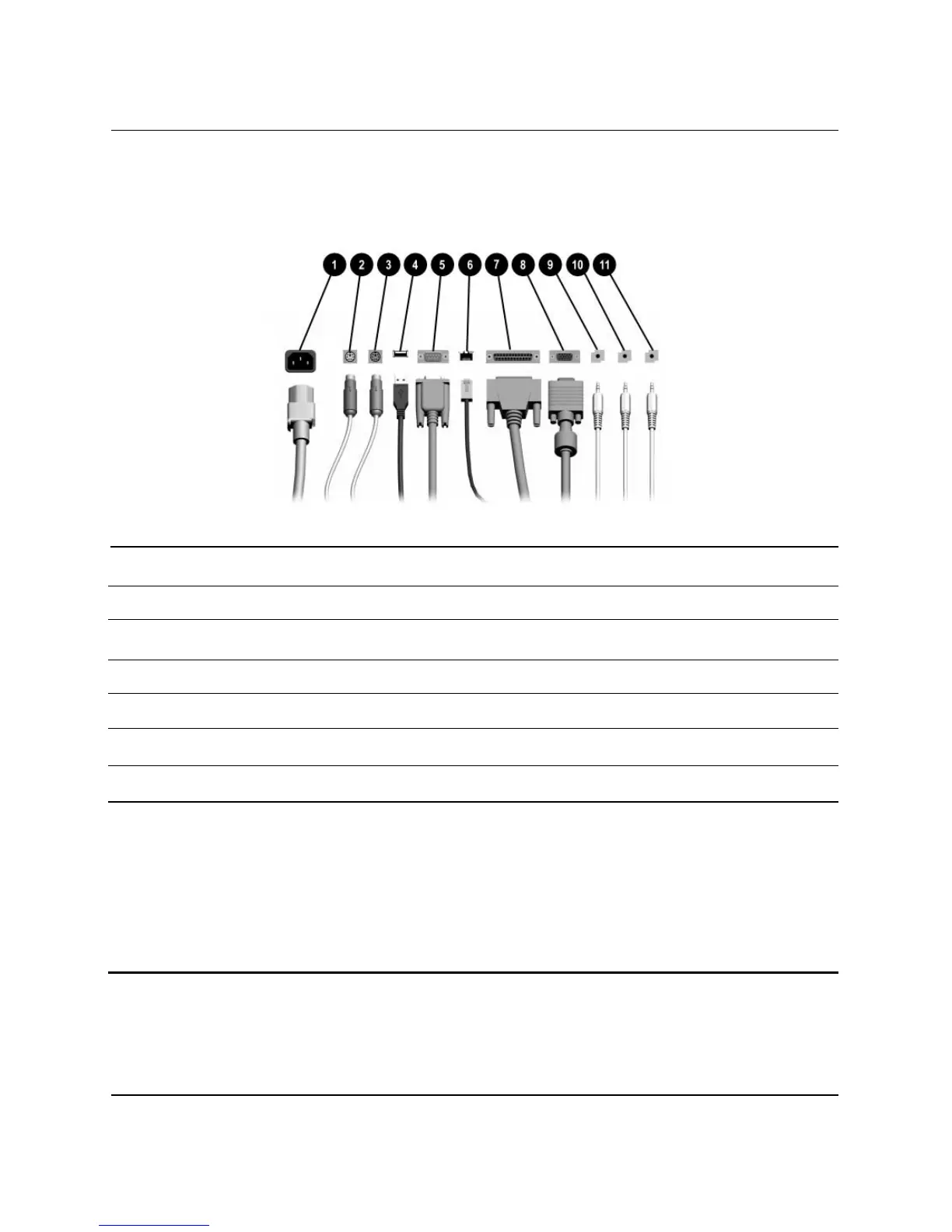

Rear Panel Components
Rear Panel Components
1 Power Cord Connector 7
l
Parallel Connector
2
b
PS/2 Mouse Connector 8
c
Monitor Connector
3
a
PS/2 Keyboard Connector 9
h
Headphone/Line-Out Connector
4
o
Universal Serial Bus (USB) -
j
Line-In Audio Connector
5
m
Serial Connector q
g
Microphone Connector
6
n
RJ-45 Network Connector
ā
Arrangement and number of connectors may vary by model.
The monitor connector on the system board is inactive when a PCI Express graphics card is
installed in the computer.
If a standard PCI graphics card is installed, the connectors on the card and the system board
may be used at the same time. Some settings may need to be changed in Computer Setup to
use both connectors. For information about Boot Order, refer to the Computer Setup (F10)
Utility Guide on the Documentation CD.
