Integrated Graphics Subsystem
6.5 VGA Monitor Connector
These systems includes a standard VGA connector (Figure 6-3) for attaching an analog monitor:

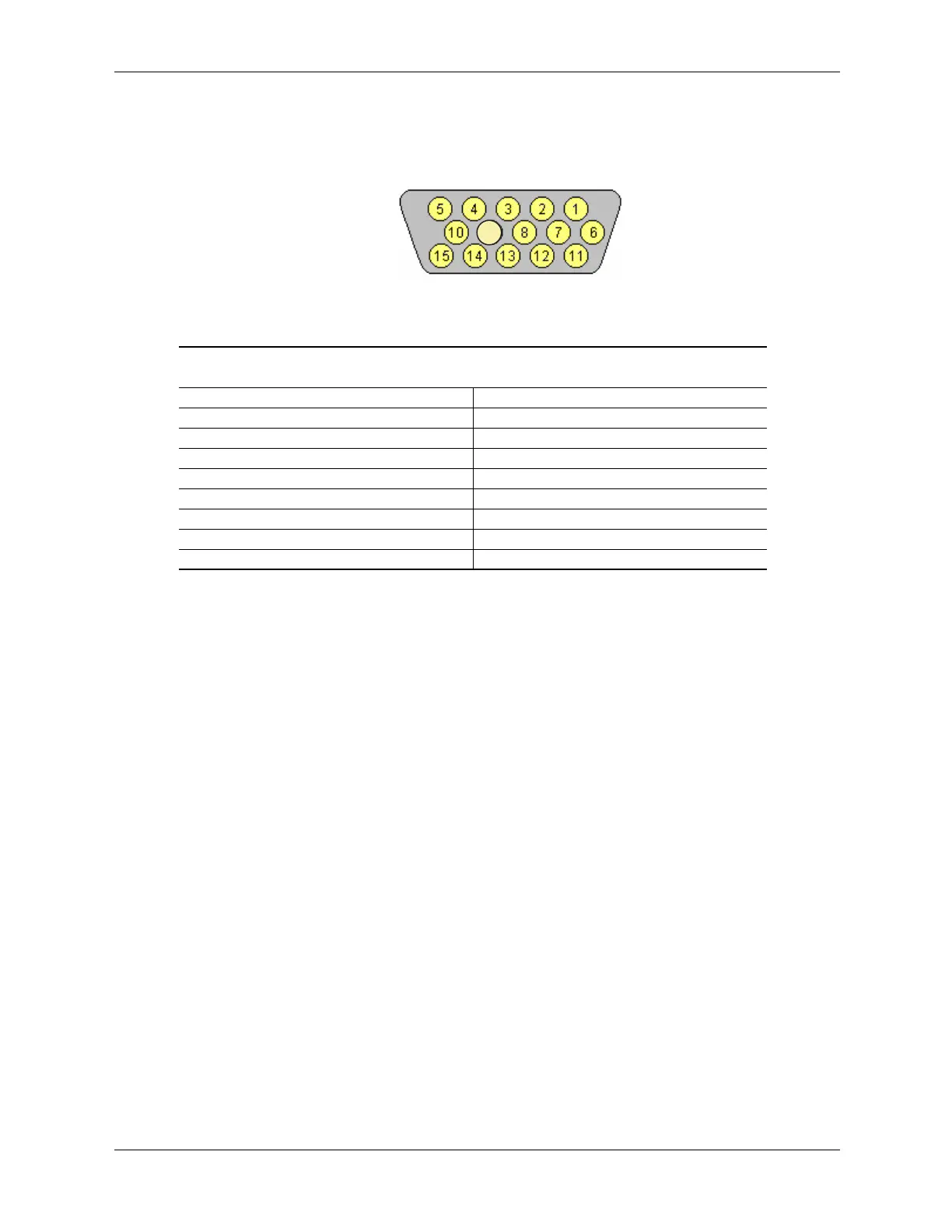

Figure 6 3. VGA Monitor Connector, (Female DB-15, as viewed from rear).
NOTES:
[1] Fuse automatically resets when excessive load is removed.
Table 6-1.
DB-15 Monitor Connector Pinout
Pin Signal Description Pin Signal Description
1R Red Analog 9PWR +5 VDC (fused) [1]
2G Blue Analog 10GND Ground
3 B Green Analog 11 NC Not Connected
4 NC Not Connected 12 SDA DDC2-B Data
5 GND Ground 13 HSync Horizontal Sync
6 R GND Red Analog Ground 14 VSync Vertical Sync
7 G GND Blue Analog Ground 15 SCL DDC2-B Clock
8 B GND Green Analog Ground -- -- --
9
