Rear Components

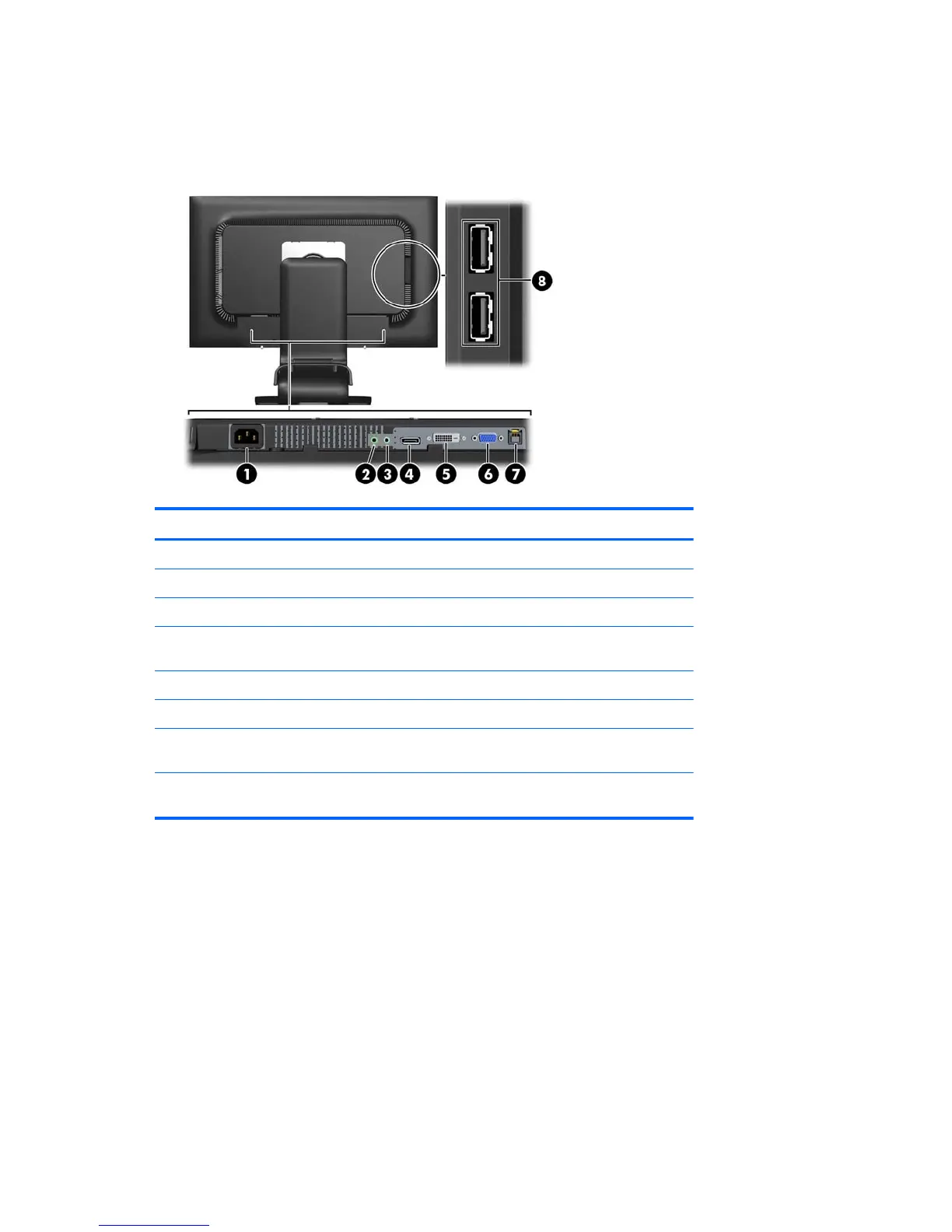

Figure 3-2 Rear Components
Component Function
1 AC Power Connector Connects the AC power cord to the monitor.
2 Headphone Connects a headphone set to the monitor.
3 Audio-In Connects the audio cable from the computer to the monitor.
4 DisplayPort Connects the DisplayPort cable (not included) to the
monitor.
5 DVI-D Connects the DVI-D cable to the monitor.
6 VGA Connects the VGA cable to the monitor.
7 USB Upstream
Connector
Connects the USB hub cable to the monitor's USB hub
connector and to a host USB port/hub.
8 USB Downstream
Connectors (2)
Connects optional USB devices to the monitor.
6 Chapter 3 Setting Up the Monitor ENWW
