Front Panel Controls

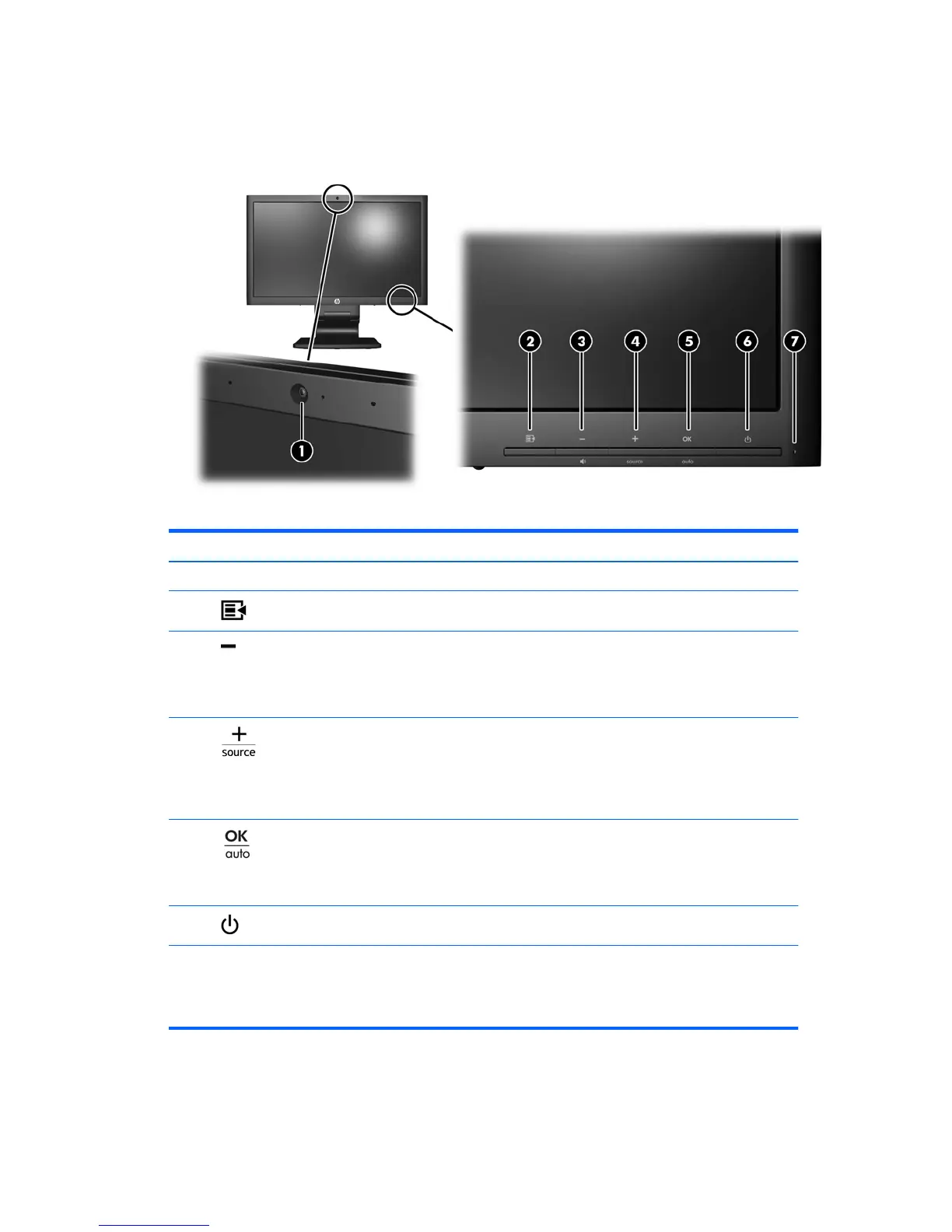

Figure 4-1 Monitor Front Panel Controls
Table 4-1 Monitor Front Panel Controls
Control Function
1 Webcam Active — Blue LED
2
Menu Opens, selects or exits the OSD menu.
3
Minus/volume If the OSD menu is on, press to navigate backward through
the OSD menu and decrease adjustment levels.
If the OSD menu is inactive, press to activate the volume
button that adjusts the volume of the monitor's speakers.
4
Plus/source If the OSD menu is on, press to navigate forward through
the OSD menu and increase adjustment levels.
If the OSD menu is inactive, press to activate the source
button that chooses the video signal input (VGA, DVI, or
DisplayPort)
5
OK/auto If the OSD menu is on, press to select the highlighted
menu item.
If the OSD menu is inactive, press to activate the auto
adjustment feature to optimize the screen image.
6
Power Turns the monitor on or off.
7 Power LED Blue = Fully powered.
Amber = Sleep mode.
Flashing Amber = Sleep Timer mode.
